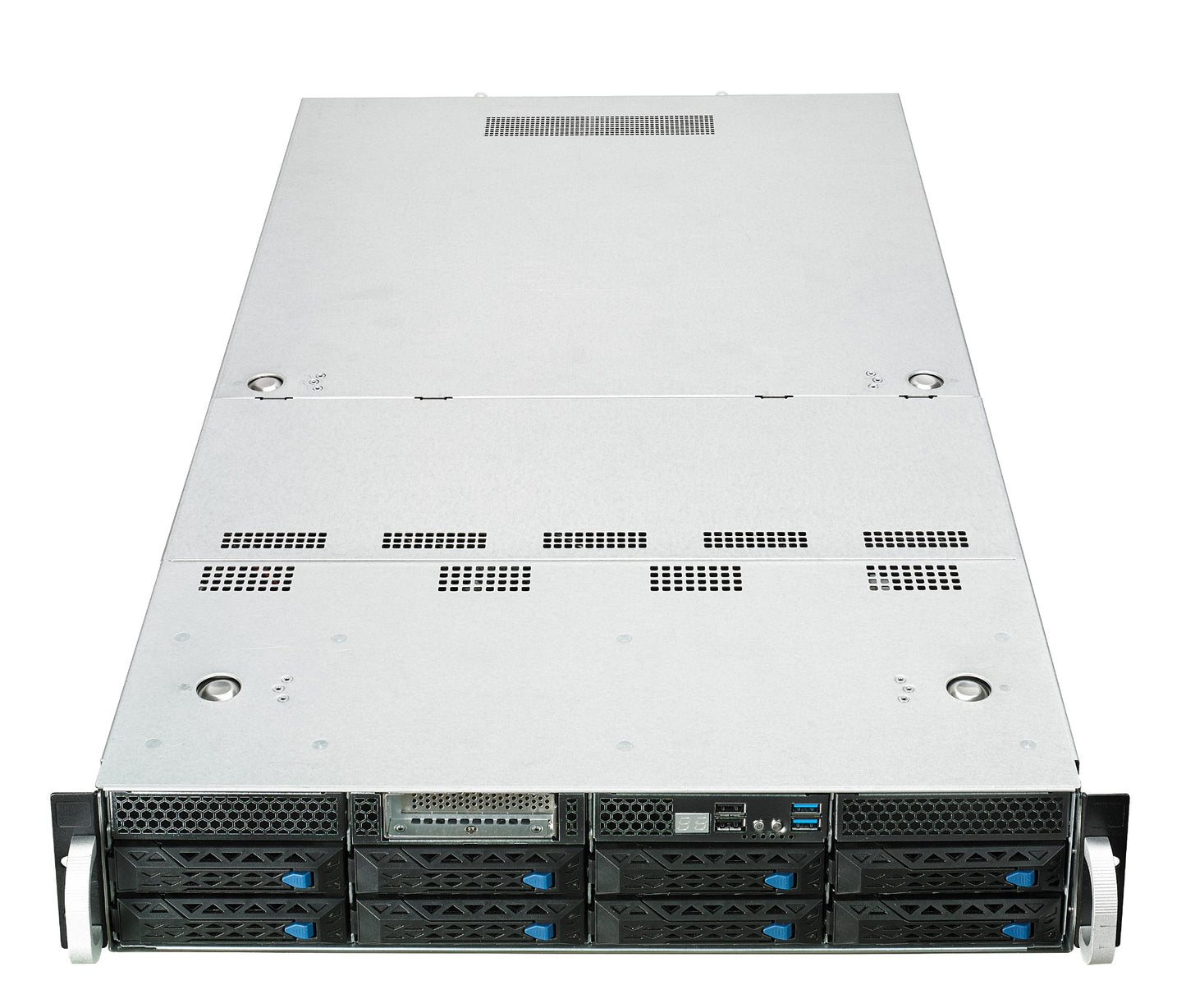

Powered by the latest 2nd Gen Intel Xeon Scalable processors ESC4000 G4 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver incredible 2U server performance, packing incredible power into minimal space. The latest Intel platform delivers a 1.33X average performance improvement in power consumption and clock speed over previous-generation processors with popular applications and benchmarks. ESC4000 G4 offers breakthrough performance with the latest Intel Optaneâ„¢ DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, ESC4000 G4 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.
Flexible choice on versatile accelerators ESC4000 G4 supports up to four double-deck server GPUs in a 2U form factor. Broad GPU support including NVIDIA, AMD and Intel
Maximum flexible 8+3 expansion slots in a 2U server ESC4000 G4 offers eight full-length PCI Express 3.0 x16 (4 at x16 Link or 8 at x8 Link), one low-profile PCI Express 3.0 x24 with support of a riser card for additional one PCI Express x16 (x16 Gen3 Link) and one PCI Express x8. One PCI Express x8 for internal HBA/RAID card. Flexible expandability in a 2U form factor supports diverse storage and networking applications to meet the demands of future expansion and high scalability.
User-friendly design for easier server maintenance ESC4000 G4 features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less chassis design is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance.
Expandable storage for faster transfer speeds ESC4000 G4 features full-bandwidth port-to-port OCuLink for two NVMe storage devices with 3X faster transfer speeds compared to PCIe switch IC solutions. One M.2 slot accommodates 2280-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds. ESC4000 G4 is ideal for data centers with high storage and processing demands.
Fully integrated remote server management The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.
Smart thermal design for energy efficiency ESC4000 G4 features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.
Specification:
| Hard drive |
|---|
| Hot-swap HDD bays |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor socket |
Socket SP3 |
| Processor family |
AMD EPYC |
| Processor manufacturer |
AMD |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Chassis type |
Rack (2U) |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Supported DIMM module capacities |
16GB, 32GB, 64GB, 128GB, 256MB |
| Number of DIMM slots |
8 |
| Maximum internal memory |
2048 GB |
| Storage |
|---|
| Hot-swap HDD bays |
Yes |
| Performance |
|---|
| Optical drive type |
No |
| Network |
|---|
| LAN controller |
Intel® I350-AM2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
6 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
3 |
| Expansion slots |
|---|
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
4 |
| Features |
|---|
| Optical drive type |
No |
| Harmonized System (HS) code |
84714100 |
| Technical details |
|---|
| Memory slots |
8 |
| Chassis type |
Rack (2U) |
| Harmonized System (HS) code |
84714100 |
| Power |
|---|
| AC input voltage |
220 - 240 V |
| AC input frequency |
50/60 Hz |
| Redundant power supply (RPS) support |
Yes |
| Power supply |
1600 W |
| 80 PLUS certification |
80 PLUS Platinum |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Width |
31.5" (800 mm) |
| Weight |
75 lbs (34 kg) |
| Height |
3.5" (88.9 mm) |
| Depth |
17.3" (440 mm) |
| Package weight |
97 lbs (44 kg) |
| Packaging data |
|---|
| Package weight |
97 lbs (44 kg) |
| Other features |
|---|
| Memory slots |
8 |
