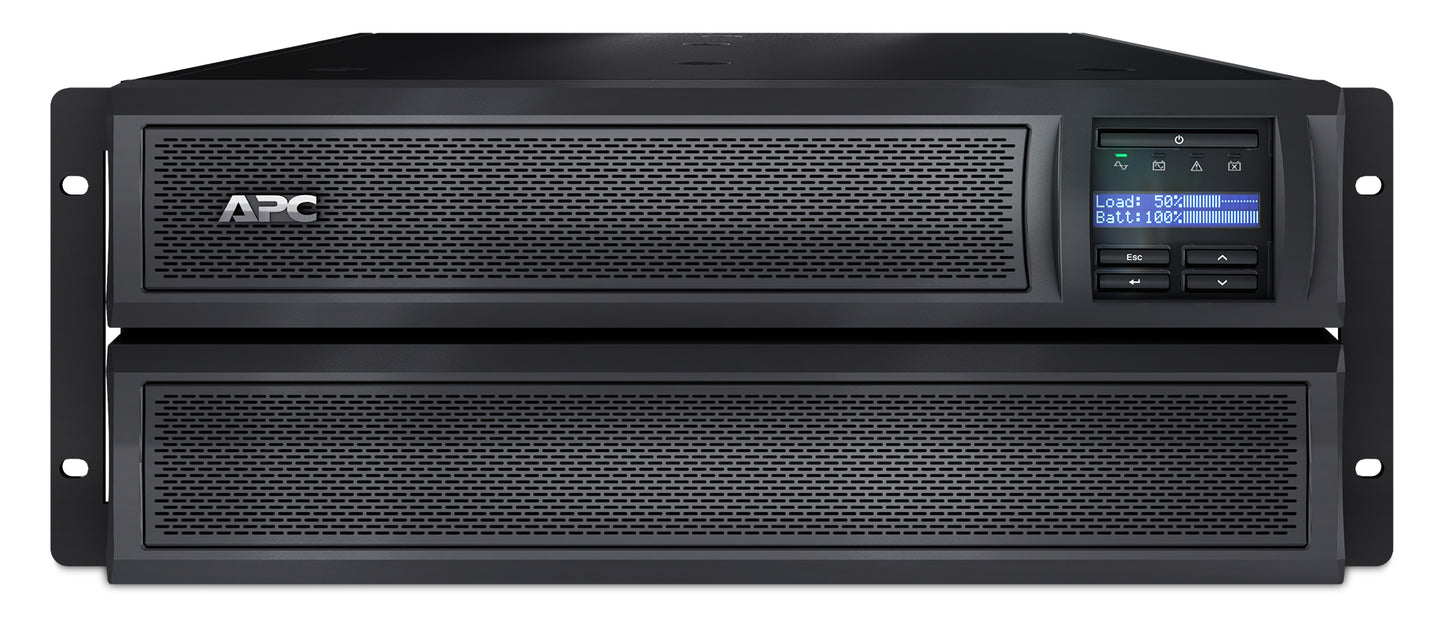

SMX2200HVNC - APC SMART-UPS X 2200VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V WITH NETW

Cold-start capable Provides temporary battery power when the utility power is out. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High online efficiency Reduces utlility costs, generates less heat. Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Preinstalled network management card Provides for remote management and control of the UPS over a network out of the box. Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. SmartSlot Customize UPS capabilities with management cards. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Availability Disconnected battery notification Warns when a battery is not available to provide backup power. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Manageability Network manageable Provides remote power management of the UPS over the network. Serial connectivity Provides management of the UPS via a serial port. Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. Disconnected battery notification Warns when a battery is not available to provide backup power. LED status indicators Quickly understand unit and power status with visual indicators. USB connectivity Provides management of the UPS via a USB port (not available on all models). Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Marketing Features Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold. Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities. Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems Serviceability Resettable circuit breakers Enables a quick recovery from overload events. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Adaptability Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Specification:



Power
Output frequency	50/60 Hz
Output voltage regulation	5%
Output frequency regulation	+/- 3 Hz
Output power	1980 W
Input operation voltage (min)	208 V
Input operation voltage (max)	230 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Emergency Power Off (EPO)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Performance
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Response time	10 ms
LED indicators	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Audible alarm modes	Battery replacement
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	5%
Output frequency regulation	+/- 3 Hz
Auto-restart	Yes
Response time	10 ms
Output power	1980 W
Input operation voltage (min)	208 V
Input operation voltage (max)	230 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Surge energy rating	645 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler, C20 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Battery
Battery capacity	702 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Sustainability certificates	RoHS
Harmonized System (HS) code	85078000
Management features
Web-based management	Yes
Weight & dimensions
Package width	23.5" (596 mm)
Package depth	34.2" (869 mm)
Package height	9.57" (243 mm)
Weight	82.5 lbs (37.4 kg)
Width	17" (432 mm)
Package weight	99.9 lbs (45.3 kg)
Height	3.35" (85 mm)
Depth	26.3" (667 mm)
Packaging data
Resource CD	Yes
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	Input power cable, USB cable
Package width	23.5" (596 mm)
Package depth	34.2" (869 mm)
Package height	9.57" (243 mm)
Package weight	99.9 lbs (45.3 kg)
Logistics data
Products per pallet	8 pc(s)
Certificates
Certification	CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Other features
Output voltage	230 V
Packaging content
Resource CD	Yes
Rack mount kit	Yes
Quick installation guide	Yes
Cables included	Input power cable, USB cable
