SU10000RT3U - Tripp Lite 10000VA 9000W UPS SMART ONLINE RACKMOUNT 10KVA PDU 200-240V 6URM

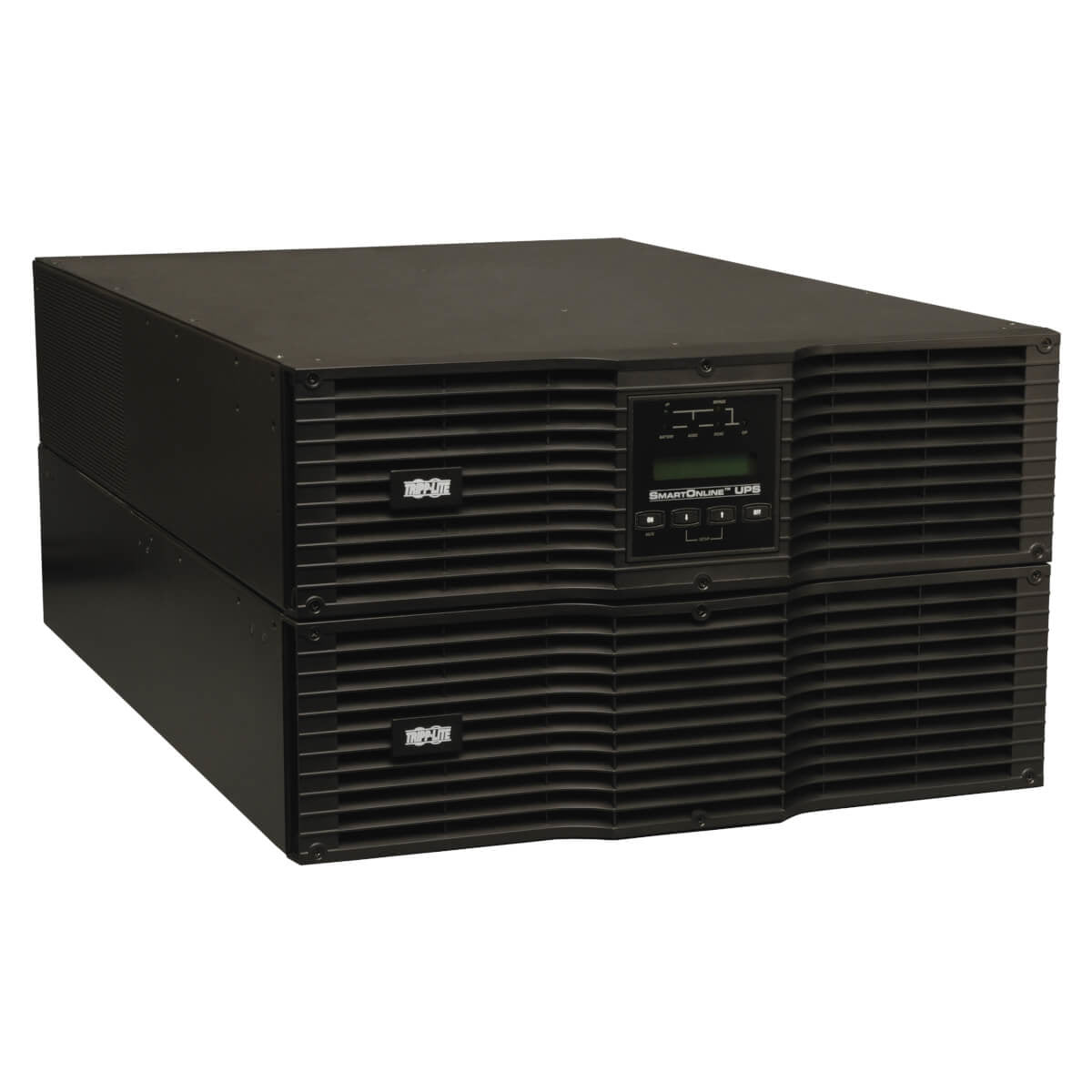

Tripp Lite SU10000RT3U 10,000VA / 10kVA / 9000 watt online, double-conversion UPS system offers complete power protection for critical network applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations. - Tripp Lite SU10000RT3U 10kVA / 10,000VA / 9000 watt on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack) - Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions - Hardwire input; 2 L6-30R and 4 L6-20R outlets - Maximum installed rack depth of only 32.5 in. / 82.6cm - Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise - Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types - Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V - Supports 50/60Hz operation for worldwide frequency compatibility - Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH external battery packs - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) - Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs - Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement - PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted - Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces - Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification - Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module) - Supports Emergency Power Off (EPO) via built-in interface - Included rail kit supports 6U 19 inch rackmount installation in 4 post racks - Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks - Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters - LED / LCD display panel rotates for viewing in rackmount or tower configurations - Network-grade AC surge and noise suppression - Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions - Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) - External battery packs are field replaceable and hot swappable



Specification:



Power
Output power	9000 W
Input operation voltage (min)	208 V
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Maximum current	54 A
Power factor	0.9
Crest factor	3:1
Output power capacity	10 kVA
Input frequency	60 Hz
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of input phases	1
Surge protection	Yes
Noise level	60 dB
Features
Country of origin	China
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of input phases	1
Output power	9000 W
Input operation voltage (min)	208 V
Output operation voltage (min)	120 V
Output operation voltage (max)	208 V
Maximum current	54 A
Surge protection	Yes
Power factor	0.9
Noise level	60 dB
Crest factor	3:1
Output power capacity	10 kVA
Input frequency	60 Hz
Ports & interfaces
AC outlets quantity	30 AC outlet(s)
AC outlet types	NEMA 5–15, NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Battery recharge time	6 h
Typical backup time at half load	12.5 min
Typical backup time at full load	4.3 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Rack capacity	10U
Form factor	Rackmount/Tower
Product colour	Black
Cooling type	Active
Certification	UL1778 (USA), CSA (Canada), NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Weight & dimensions
Package width	26" (660.4 mm)
Package depth	41" (1041.4 mm)
Package height	40" (1016 mm)
Package weight	435 lbs (197.3 kg)
Packaging data
Package width	26" (660.4 mm)
Package depth	41" (1041.4 mm)
Package height	40" (1016 mm)
Package weight	435 lbs (197.3 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	26" (660.4 mm)
Master (outer) case length	41" (1041.4 mm)
Master (outer) case height	40" (1016 mm)
Master (outer) case gross weight	435 lbs (197.3 kg)
Certificates
Certification	UL1778 (USA), CSA (Canada), NOM (Mexico); Meets FCC Part 15 Category A (EMI)
