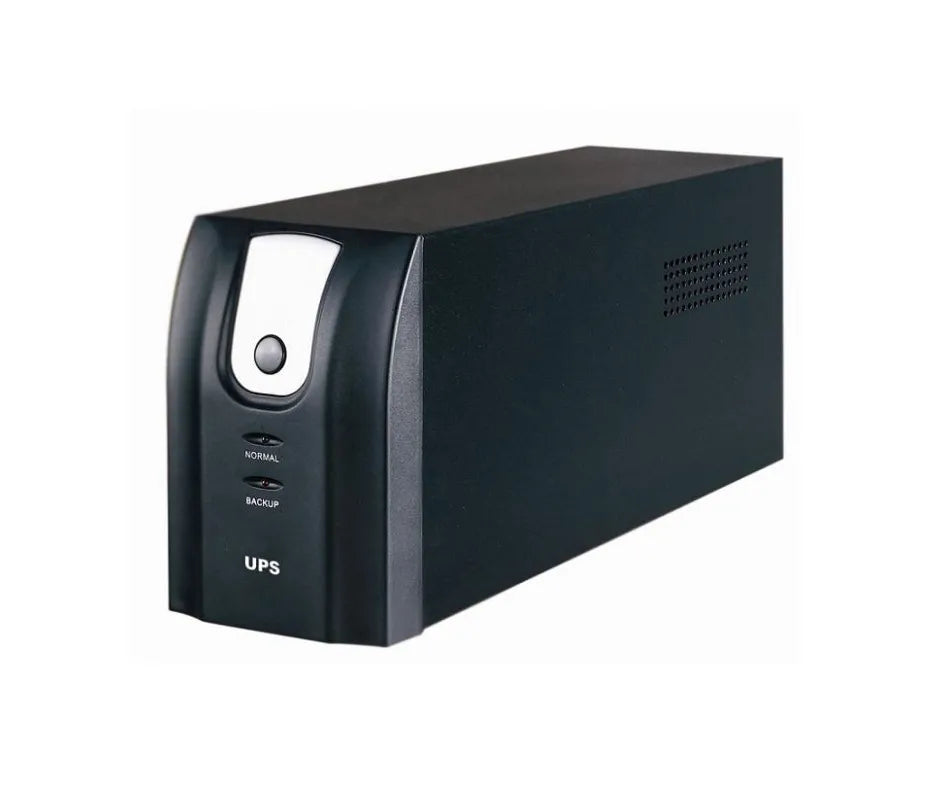

SUINT1000LCD2UN - Tripp Lite 208/230V 1000VA 900W DOUBLE-CONVERSION UPS - 6 OUTLETS, EXTENDED RUN, WEBCARDLX,

Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 900W capacity, high 0.9 power factor, 627 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline SUINT1000LCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment. Set Power Strategies to Reflect Your Protection Priorities Pick your power strategy, from precise power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are good and enhanced power quality when power conditions are poor. Individually Controllable Load Banks Let You Access and Control Outlets Remotely Four C13 outlets are split evenly into two switchable load banks, allowing you to reboot select components or shed loads remotely. In addition to those four outlets, this UPS provides two more C13 outlets in their own unswitched bank for powering critical components. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery (RBC24S) provides 12.3 minutes of support at half load (450W) and 4.7 minutes at full load (900W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports €œsmart€� external battery packs, such as Tripp Lite€™s BP24V36-2US (sold separately). Both the internal and external batteries are automatically sensed and configured during replacement to offer accurate runtime-remaining and battery age notifications during outages. The intelligent battery management system with temperature-compensated charging extends battery life. Automatic Bypass Maintains Utility Output During Fault Conditions Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault conditions. ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information, as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite€™s free downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included. Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control The built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite€™s PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. PADM20€™s Auto Probe feature allows a UPS with switched loads to automatically reboot devices if a network communication failure is detected. This preserves uptime and minimizes the time and expense associated with on-site support. Versatile Installation Options Hardware is included for mounting the UPS system in 2U of space in an EIA-standard 19-inch 4-post rack. Use the optional 2POSTRMKITWM (sold separately) for 2-post rack mounting or the optional 2-9USTAND (sold separately) for mounting in an upright tower position. The C14 power inlet accepts a variety of user-supplied input cords.



Specification:



Power
Output power	900 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	425 J
Power factor	0.9
Crest factor	3:1
Output power capacity	1 kVA
Battery
Battery type	BP24V15RT2U, BP24V28-2U, BP24V70-3U
Battery voltage	24 V
Typical backup time at half load	12.8 min
Typical backup time at full load	4.8 min
Performance
UPS topology	Double-conversion (Online)
Number of phases	1
EMI/RFI noise filtering	Yes
Features
Country of origin	China
UPS topology	Double-conversion (Online)
Output power	900 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	425 J
EMI/RFI noise filtering	Yes
Power factor	0.9
Crest factor	3:1
Output power capacity	1 kVA
Number of phases	1
Ports & interfaces
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Design
Country of origin	China
Form factor	Tower
Product colour	Black
Certification	IEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4
Housing material	Steel
Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 39370.1" (0 - 1000 m)
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Package width	9.5" (241.3 mm)
Package depth	17.6" (447 mm)
Package height	13.4" (340.4 mm)
Weight	21.3 lbs (9.66 kg)
Width	5.7" (144.8 mm)
Package weight	27.3 lbs (12.4 kg)
Height	8.9" (226.1 mm)
Depth	12.6" (320 mm)
Packaging data
Package width	9.5" (241.3 mm)
Package depth	17.6" (447 mm)
Package height	13.4" (340.4 mm)
Package weight	27.3 lbs (12.4 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	9.5" (241.3 mm)
Master (outer) case length	17.6" (447 mm)
Master (outer) case height	13.4" (340.4 mm)
Master (outer) case gross weight	27.3 lbs (12.4 kg)
Certificates
Certification	IEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4
Other features
Number of phases	1
Battery type	BP24V15RT2U, BP24V28-2U, BP24V70-3U
