CDP2VGAUCP - StarTech.com USB-C (DP 1.2 ALT MODE HBR2) TO VGA VIDEO DISPLAY ADAPTER W/ 60W POWER DELIVERY

USB Type C Adapter | Thunderbolt 3 Compatible | 1080p

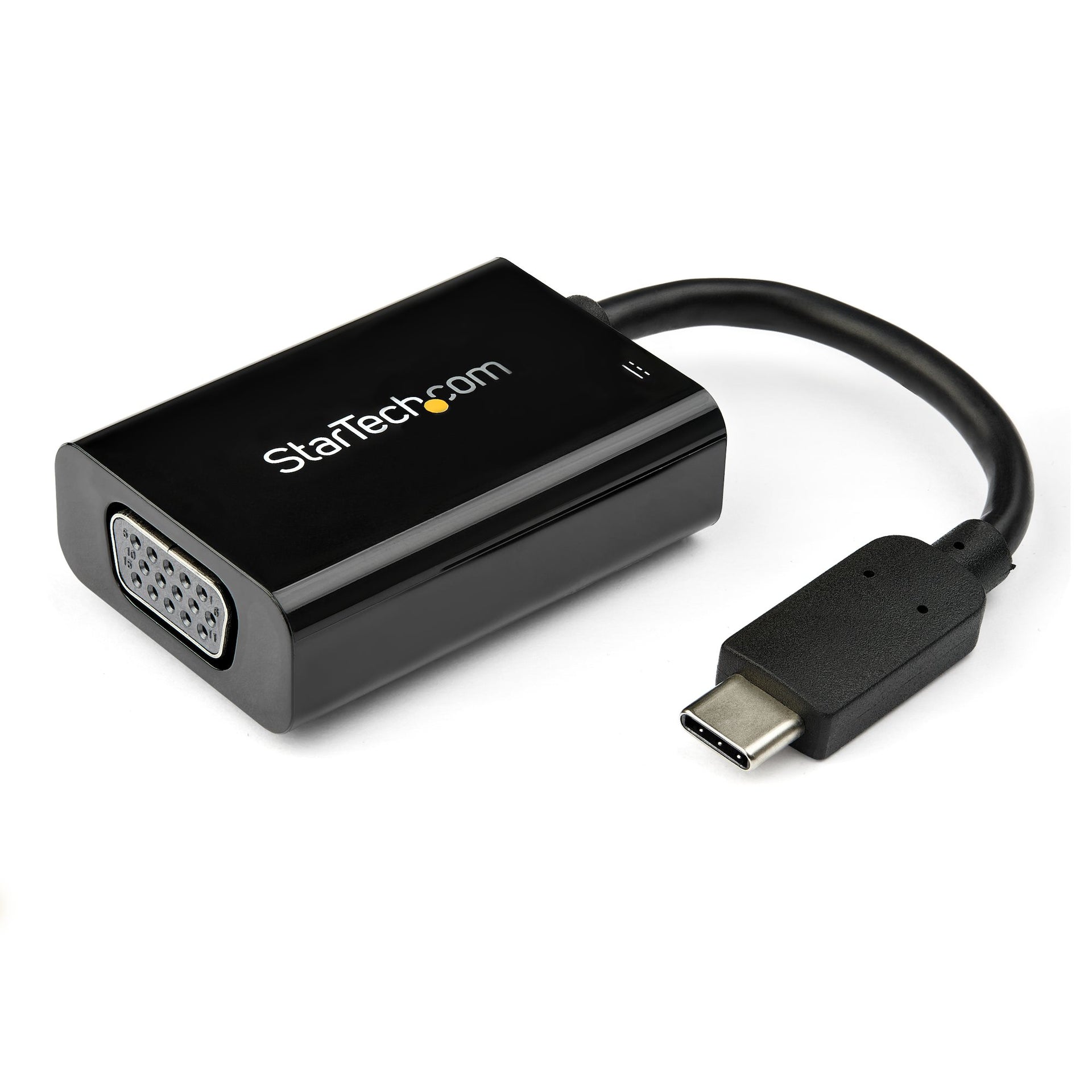

This USB-C to VGA adapter connects a VGA display to your laptop or MacBook with USB Type-C. The USB-C adapter features USB Power Delivery, enabling you to power your laptop while outputting video through the same USB-C port. The adapter is also available in white (CDP2VGAUCPW) so you can choose an adapter that matches the style of your laptop.

Power and Video in One Port with USB Power Delivery

Smaller and lighter laptops are great for portability but you’re left with fewer connectivity ports. This USB-C VGA adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port, so you can charge your laptop using its USB-C power adapter, even while you output video. Many laptops like Dell XPS and MacBook Pro support charging through your USB-C port with USB Power Delivery, check your specifications to confirm compatibility.

Enjoy HD Picture Quality with Video Resolutions up to 2048 x 1260

To ensure the quality of your video signal is maintained the USB-C dongle supports VGA resolutions up to 2048 x 1260 60Hz, including popular high-definition resolutions like 1080p and 720p.

Stylish Connectivity for Your Ultrabook or Any Laptop

This USB Type-C adapter has an all-black housing and built-in USB-C cable designed to match your Ultrabook or laptop. The adapter is compatible with any device that supports USB-C DP Alt Mode, such as the 2018 iPad Pro.

The CDP2VGAUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- DIGITAL TO ANALOG: USB-C (DP 1.2 Alt Mode HBR2) adapter lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 at 60Hz; equipped w/ EDID support & DDC pass-through
- 60W PD PASS THROUGH CHARGING: USB-C display adapter with up to 60W Power Delivery to power & charge your laptop while displaying video on a VGA monitor/projector using a single USB-C port
- COMPATIBILITY: Works w/ DisplayPort over USB Type-C (TB3 compatible) laptops like Lenovo ThinkPad X1 Carbon, Dell XPS 13, HP EliteBook, TB3 MacBook Pro 13 / Air, Surface Book 3/Laptop 3, Chromebook



Specification:



Performance
USB connector form factor	Straight
Chipset	ITE - IT6516, VIA/VLI - VL100
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
VGA (D-Sub) output	Yes
USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	No
DisplayPort output	No
Number of displays supported	1
Maximum resolution	1920 x 1200 pixels
Refresh rate at maximum resolution	60 Hz
Design
Product colour	White
Integrated USB cable	Yes
USB cable length	4.02" (0.102 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	1.3" (33 mm)
Depth	5.91" (150 mm)
Height	0.591" (15 mm)
Weight	0.847 oz (24 g)
Package width	5.71" (145 mm)
Package depth	6.85" (174 mm)
Package height	1.3" (33 mm)
Package weight	3.74 oz (106 g)
Technical details
Sustainability certificates	CE, RoHS
Harmonized System (HS) code	84733020
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	13.2" (335 mm)
Master (outer) case length	14.2" (360 mm)
Master (outer) case height	12.6" (320 mm)
