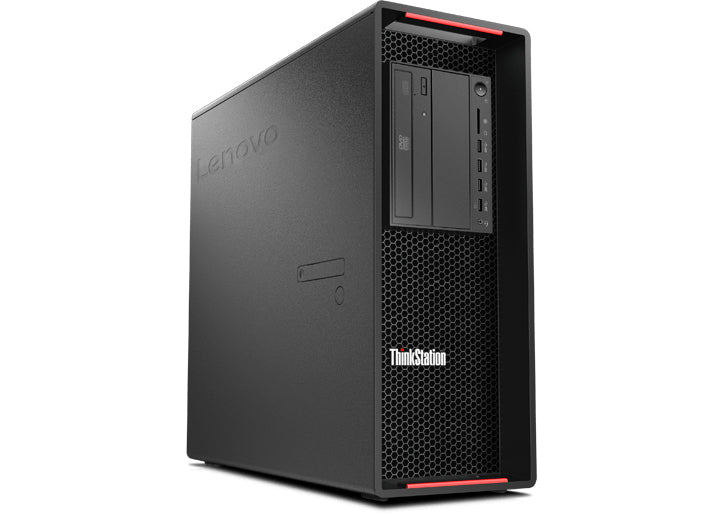

30BA00CXUS - Lenovo THINKSTATION P720, INTEL XEON SR 4108 (1

Designed for users, engineered for IT managers Powerful enough to render virtual reality (VR), this high-performance workstation lets you tap the speed and efficiency of Intel® Xeon® processing and NVIDIA® Quadro® graphics. It also comes with Independent software vendor (ISV) certification from all the major vendors like Autodesk®, Bentley®, and Siemens®. To learn more about ISV certification. Easy to set up, deploy, and manage, the ThinkStation P720 endures rigorous testing in extreme environmental conditions. You can count on its reliability and durability. With an exceptional design and build quality, it gives you increased serviceability along with decreased downtime. A win-win for any organization. What's more, fine-tuning and optimizing system performance is a breeze. Simply download and run the Lenovo Performance Tuner and Lenovo Workstation Diagnostics apps. Packs a punch Enjoy the increased performance of the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics. The Thinkstation P720 scales graphics memory and performance to drive the most demanding AI, rendering, and visual computing workloads with ease - including the toughest ISV-certified applications. Faster memory, bigger storage New, faster 2666 Mhz DDR4 memory — up to 384 GB — has more bandwidth than the previous generation, for a speedy response. And bigger, faster storage options include an onboard M.2 PCIe solution, the capacity to handle up to 60 TB of HDD storage, and support for up to 12 drives. That means the P720 can handle even the most demanding workloads. Unparalleled versatility The ThinkStation P720 features a superior modular design, including Flex Trays that hold up to two drives per bay for versatility. Configure only the components you need, for the ultimate in usability and savings. Built to last Patented Tri-Channel Cooling ensures each component receives cool air. A smaller, redesigned air baffle offers protection for high-density memory configurations. And the ThinkStation P720 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line. Easy to enhance Intuitive red touch points guide you to quick and easy component changes — even to the motherboard and swappable power supply — without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.



Specification:



Processor
Processor generation	1st Generation Intel® Xeon® Scalable
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	UPI
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Thermal Design Power (TDP)	85 W
Tcase	78 °C
Maximum number of PCI Express lanes	48
ECC supported by processor	Yes
Processor cache type	L3
Conflict-Free processor	Yes
Processor cache	13.75 MB
Processor frequency	2.2 GHz
Processor model	4114
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3 GHz
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Processor cores	10
Processor front side bus	2400 MHz
PCI Express slots version	3.0
Processor family	Intel® Xeon®
Memory
ECC	Yes
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	384 GB
Memory slots	12x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Hexa-channel
Storage
Storage media	HDD
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD interface	SATA III
HDD size	3.5"
Card reader integrated	Yes
Total storage capacity	1000 GB
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Motherboard chipset	Intel® C621
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	36 L
Product colour	Black
Chassis type	Tower
Performance
Embedded options available	No
Audio chip	Realtek ALC662
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Audio system	High Definition Audio
Motherboard chipset	Intel® C621
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro for Workstations
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Execute Disable Bit	Yes
Supported instruction sets	AVX,AVX 2.0,AVX-512,SSE4.2
Scalability	2S
Processor package size	76.0 x 56.5 mm
Processor code	SR3GK
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Conflict-Free processor	Yes
Processor ARK ID	123550
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Power
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	690 W
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	36 L
Width	6.89" (175 mm)
Depth	19.1" (485 mm)
Height	17.6" (446 mm)
Weight	52.2 lbs (23.7 kg)
Packaging content
Manual	Yes
Display included	No
Other features
Optical drives quantity	1
Processor manufacturer	Intel
