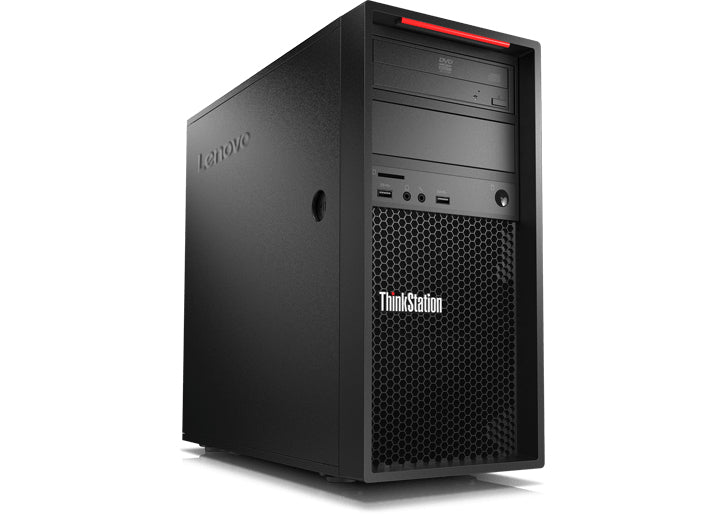

30BX0024US - Lenovo P520C,W10P,W-2133,8G,1TB,3YR

High-level performance without the high price
From large workloads to multitasking, the compact ThinkStation P520c breezes through it all. With cutting-edge processing, graphics, storage, and memory, this configurable 25 L workstation is a solid workhorse. Energy efficient and extremely reliable, it's also ISV-certified and VR-ready. Equally impressive is the affordable price tag.

Real power at a reasonable price
For true processing power and blazing-fast visuals, power up the ThinkStation P520c. Fueled by the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics, this compact 25 L workhorse can help you to get the job done, quickly and easily. What's more, it comes at a very affordable price.

Configurable and reliable
The P520c can be configured to meet your specific needs, including up to 128 GB of memory and solid-state or hard disk drive storage options. One thing you won't have to worry about, however, is reliability, which is the cornerstone of every ThinkStation.

Enhanced flexible design
With two M.2 PCIe solid state drive slots embedded in the motherboard, you can enjoy blistering-fast storage speeds. What's more, the front FLEX module gives you a range of options and flexibility, including a media card reader and blazing-fast Intel® Thunderbolt™ 3 port.

Hassle-free, tool-free
Should you ever need to swap any components, there’s no need to worry about tools. Simply slide off the side panel and away you go. You may also wish to know that we can help automate many of the manual tasks associated with deploying new machines, from asset tagging to custom image loading.

Ready for anything, real or virtual
With virtual reality (VR), almost anything's possible—from revolutionary designs to stunning special effects to highly complex simulations. With the powerful P520c and top-of-the range, high-performance NVIDIA Quadro® graphics (optional), a truly immersive VR experience awaits.

Built-in peace of mind
Like every ThinkStation before it, the P520c has undergone rigorous testing under extreme conditions. It's also ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability.

A helping hand when you need it
You’ll be able to keep your P520c running at its peak thanks to Lenovo Workstation Diagnostics. Available for both desktop and smartphone, this intelligent app can help you diagnose and troubleshoot potential system issues by providing step-by-step guidance on optimal system performance. And should your machine ever fail to boot, an error code for additional assistance will be sent wirelessly to your smartphone.

In addition, there's Lenovo Performance Tuner. Free to download and easy to use, this software can help you fine-tune your workstation to get even more out of it.

Better for the planet—and your bottom line
The P520c meets some of the world's most comprehensive environmental standards. A GREENGUARD®-certified workstation, it has also been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. And as a result of its energy efficiency, the P520c can even help lower your utility bills.



Specification:



Processor
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	QPI
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400,2666 MHz
Thermal Design Power (TDP)	120 W
Tcase	64 °C
PCI Express configurations	1x16,1x4,1x8
Maximum number of PCI Express lanes	48
Memory bandwidth supported by processor (max)	85.3 GB/s
ECC supported by processor	Yes
Conflict-Free processor	Yes
Processor cache	8.25 MB
Processor frequency	4 GHz
Processor model	W-2125
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor socket	LGA 2066 (Socket R4)
Processor threads	8
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel® Xeon®
Memory
ECC	Yes
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Quad-channel
Storage
Storage media	HDD
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes
Total storage capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	5 GB
Discrete graphics adapter model	NVIDIA® Quadro® P2000
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Motherboard chipset	Intel® C422
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	25 L
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Performance
Embedded options available	No
Audio chip	Realtek ALC662
Password protection	Yes
Password protection type	Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel® C422
Software
Recovery operating system	Windows 7 Professional
Operating system installed	Windows 10
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX,AVX 2.0,AVX-512,SSE4.2
Scalability	1S
Processor package size	45 x 52.5 mm
Processor code	SR3LM
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	126708
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Physical Address Extension (PAE)	46 bit
Power
80 PLUS certification	80 PLUS Platinum
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	500 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Weight & dimensions
Volume	25 L
Width	6.89" (175 mm)
Depth	16.8" (426 mm)
Height	14.8" (375 mm)
Weight	32 lbs (14.5 kg)
Packaging content
Manual	Yes
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
Optical drives quantity	1
Processor manufacturer	Intel
