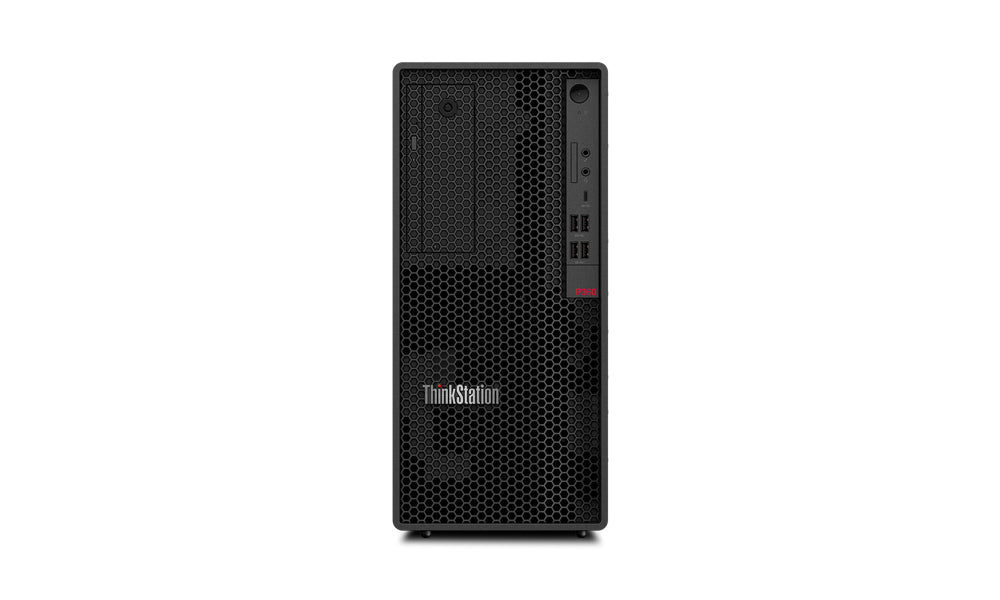

30FM002UUS - Lenovo TS P360 INTEL CORE TWR I7-12700

Perfect mix of value & performance The ThinkStation P360 Tower workstation features 12th Gen Intel Core processors with scalable hybrid architecture with data integrity and built-in security features. Plus, add optional professional NVIDIA graphics, including VR-Ready NVIDIA RTX A5000, loads of ultrafast DDDR 4000MHz memory, and up to dual M.2 NVMe PCIe Gen 4 and one M.2 NVMe PCIe Gen 3 SSD storage. Designed to work for you If you’re a designer, an engineer, or a student, the ThinkStation P360 Tower workstation promises the ideal solution for versatility, flexibility, and breakthrough performance—without compromising on computing power. And with ISV-certified applications, you can rely on this powerhouse to perform and trust that your applications are tuned to run seamlessly on your most complex tasks. Engineered for reliability Easy component access means your system can grow along with your business, and the reliability that’s built into each ThinkStation system means you’ll keep it around. Our ThinkStation workstations are engineered for durability. They pass more than 200 quality checks and 18 MIL-SPEC STD-810G tests to ensure performance in the harshest conditions— from the Arctic freeze to desert dust storms. We’ve got your back The ThinkStation P360 Tower workstation is protected ThinkShield, a suite of hardware and software that work together to safeguard both your device and your data. Trusted Platform Module (TPM) 2.0 encrypts your data, while various programs prevent access to the BIOS—and even self-heal if corrupted. Plus, Windows provides firmware update support and helps to guard your device.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Processor cache	25 MB
Processor model	i7-12700
Processor manufacturer	Intel
Processor boost frequency	4.9 GHz
Processor cores	12
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR5-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	1000 GB
SSD form factor	M.2
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	12 GB
Graphics card Mini DisplayPort ports quantity	4
On-board graphics card	Yes
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel UHD Graphics 770
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	3
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Cable lock slot	Yes
Motherboard chipset	Intel W680
Design
Volume	17 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Colour name	Black
Performance
Embedded options available	No
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel W680
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	750 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	EPEAT™ Gold ENERGY STAR® 8.0 ErP Lot 3 TCO Certified 9.0 RoHS MIL-STD-810H
Weight & dimensions
Volume	17 L
Width	6.69" (170 mm)
Depth	12.4" (315.4 mm)
Height	14.8" (376 mm)
Weight	21.4 lbs (9.7 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
