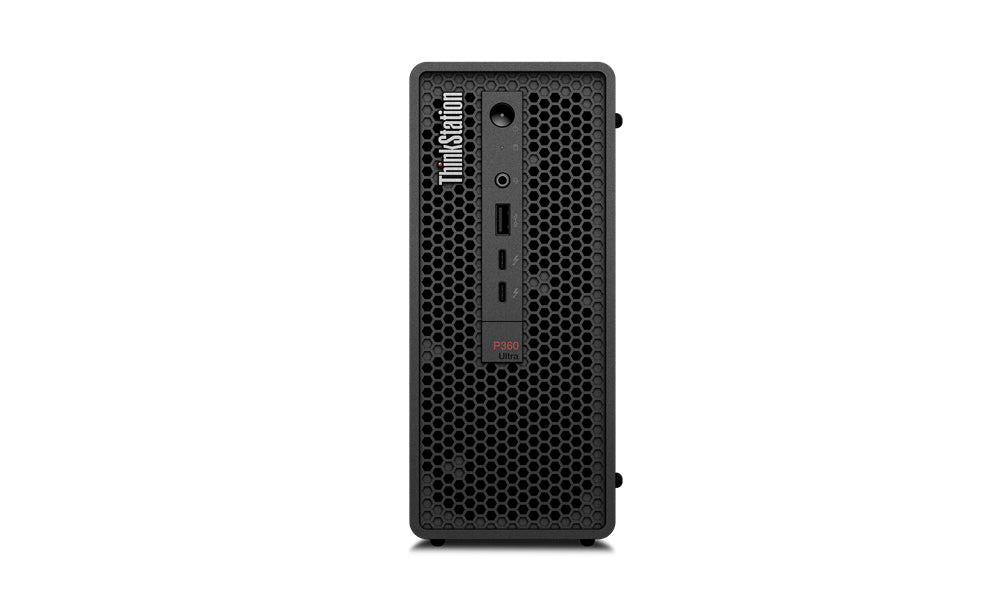

30G10019US - Lenovo TS P360 ULTRA,W11P,I9,16GB,512GB,3YR

Redefines the power of small At just 3.9 liters in volume, the ThinkStation P360 Ultra is like no other workstation. This revolutionary new form factor sits in a class of its own—it’s small enough to carry conveniently between home and office, yet it’s packed with performance so powerful it supports 8 independent displays. What’s more, flexible configurations boast 7 USB ports and 3 DisplayPorts. Talk about an industry first! Ultrasmall powerhouse The ThinkStation P360 Ultra workstation boasts up to 12th Gen Intel® Core™ with vPro® processors—providing both performance and remote manageabilty. High-end NVIDIA® graphics options, including the super powerful RTX™ A5000 mobile GPU, ensure this powerhouse can handle both everyday tasks and complex CAD, design, Edge/IoT, as well as other high-performance workflows. Certified to run smoothly The ThinkStation P360 Ultra workstation sports an extensive list of ISV-certified applications so you can be assured that your most complex projects will execute perfectly. Whether your job requires Autodesk®, or Nemetschek®, or PTC®, this workstation handles these applications and many more.See the complete list of ISV certifications. Peerless configuration flexibility Don't let the small size of the ThinkStation P360 Ultra fool you—this ultrasmall workstation sports a range of configuration options to increase your productivity and can be customized to meet your workflow needs. Pack it with massive amounts of error-correcting code (ECC) or non-ECC DDR5 memory and add tons of storage, including superfast M.2 PCIe NVMe Gen 4 SSD options. Connectivity to do what you need The ThinkStation P360 Ultra workstation takes flexibility to the next level by providing 7 USB ports, including 2 Thunderbolt™ 4 ports with 40Gbps* bidirectional connections to maximize performance throughput. Dual onboard ethernet and WiFi 6E** options ensure access to superfast networking connectivity. And power supply availability up to 300W, you can push your system to the limit. *USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected. **6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation. Takes reliability to the max Our legendary trusted quality with all things Think means your workstation is made to last. Each Lenovo ThinkStation passes over 200 quality checks and 10 military grade MIL-SPEC STD-810H tests to ensure it performs in even the harshest of situations—from Arctic freezes to desert dust storms. So you can feel free to take the P360 Ultra with you wherever you choose to work. No-compromise security The ThinkStation P360 Ultra workstation includes our ThinkShield suite of hardware and software solutions that are designed to safeguard both your data and your device. With features like Trusted Platform Module (TPM) 2.0 to encrypt your data, programs to prevent access and even self-heal your BIOS, and Windows firmware update support, system integrity is built in. Specifications may vary depending upon region / model.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Processor cache	25 MB
Processor model	i7-12700
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.9 GHz
Processor cores	12
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4000 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	NVMe, PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
Graphics card Mini DisplayPort ports quantity	3
On-board graphics card	Yes
Discrete graphics card model	NVIDIA T400
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel UHD Graphics 770
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	3
DisplayPort version	1.2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini Tower
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel W680
Design
Volume	3.9 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini Tower
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Embedded options available	No
Number of speakers	1
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel W680
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	300 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	EPEAT Gold ENERGY STAR 8.0 TCO Certified 9.0 RoHS MIL-STD-810H ISV
Weight & dimensions
Volume	3.9 L
Width	3.39" (86 mm)
Depth	8.78" (223 mm)
Height	7.95" (202 mm)
Weight	7.94 lbs (3.6 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
