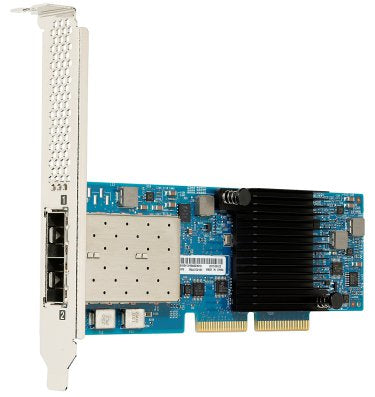

00AG560 - Lenovo EMULEX VFA5.2 ML2 DUAL PORT 10GBE SFP+

Lenovo 00AG560. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s



Specification:



Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP+
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Black, Green
Receive Side Scaling (RSS)	Yes
Harmonized System (HS) code	85176990
Network
VLAN tagging	Yes
Jumbo frames	9216
iSCSI support	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x
Jumbo frames support	Yes
Maximum data transfer rate	10000 Mbit/s
Flow control support	Yes
Design
Product colour	Black, Green
Internal	Yes
Component for	Server
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	2.72" (69 mm)
Depth	0.276" (7 mm)
Height	6.57" (167 mm)
Packaging data
Quantity	1
Performance
Receive Side Scaling (RSS)	Yes
Packaging content
Quantity	1
Other features
Jumbo frames	9216
Receive Side Scaling (RSS)	Yes
Flow control support	Yes
Harmonized System (HS) code	85176990
