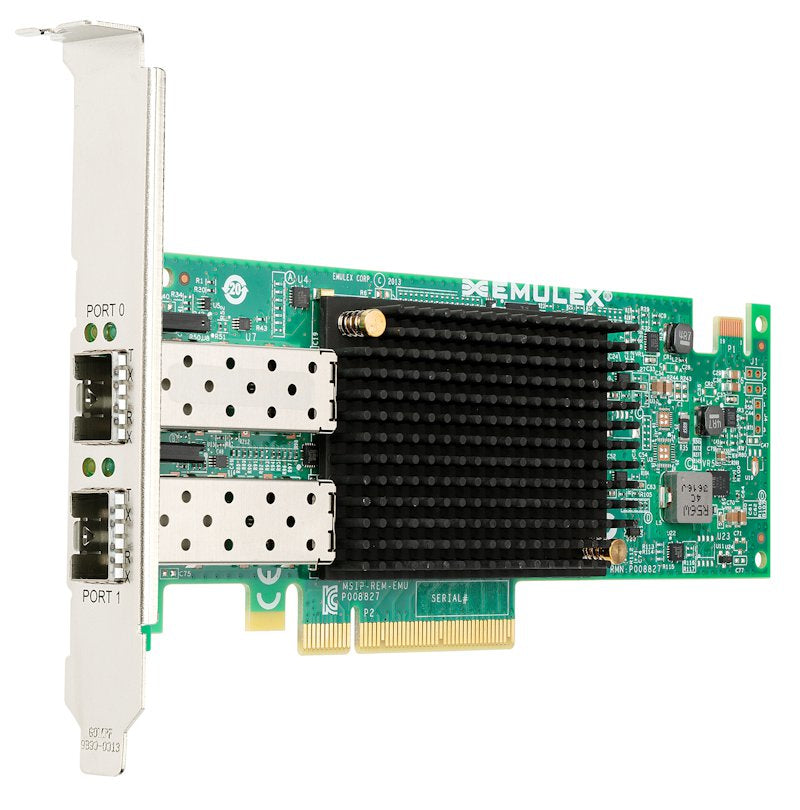

00AG570 - Lenovo EMULEX VFA5.2 2X10 GBE SFP+ PCIE ADPT
00AG570 - Lenovo EMULEX VFA5.2 2X10 GBE SFP+ PCIE ADPT
SKU:00AG570
Regular price
$245.10 USD
Regular price
Sale price
$245.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Emulex VFA5.2 adapters support three methods to virtualize I/O, out of the box: Virtual Fabric Mode (vNIC1), Switch Independent mode (vNIC2) and Unified Fabric Port (UFP) mode. With Virtual Fabric, up to eight virtual network ports (vNICs) can be created with a single two-port 10 GbE network adapter. On System x adapters, storage protocols such as iSCSI and FCoE are also supported by Features on Demand upgrades. Using a common hardware infrastructure for Ethernet and SAN and by virtualizing your network adapter, you can reduce your infrastructure capital expense. Part number information The part numbers to order these adapters are listed in the following table. The FCoE/iSCSI upgrade licenses are a Features on Demand field upgrade that enables full hardware offloaded converged networking capabilities of the adapters. Adapters 00AG580 and 01CV770 already includes the FCoE/iSCSI license.
Specification:
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Compatible products | x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6 |
| Quality of Service (QoS) support | Yes |
| Receive Side Scaling (RSS) | Yes |
| Harmonized System (HS) code | 85176990 |
| Network | |
| VLAN tagging | Yes |
| Jumbo frames | 9216 |
| iSCSI support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Compatible products | x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6 |
| Internal | Yes |
| Power | |
| Power consumption (typical) | 14.4 W |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 2.72" (69 mm) |
| Depth | 0.669" (17 mm) |
| Height | 6.57" (167 mm) |
| Package weight | 15.9 oz (450 g) |
| Packaging data | |
| Package weight | 15.9 oz (450 g) |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Compatible products | x3550 M5 x3650 M5 x3850 X6/x3950 X6 nx360 M5 x3750 M4 x3850 X6/x3950 X6 |
| Receive Side Scaling (RSS) | Yes |
| Other features | |
| Jumbo frames | 9216 |
| Receive Side Scaling (RSS) | Yes |
| Harmonized System (HS) code | 85176990 |
