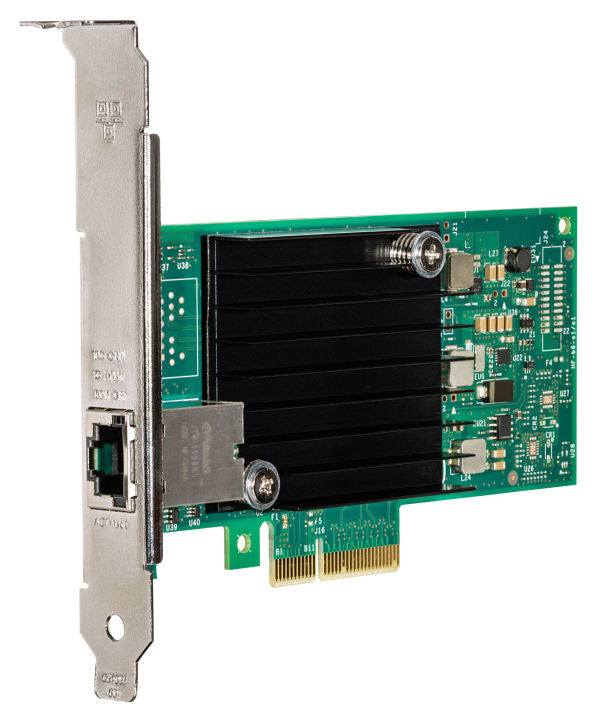

00MM850 - Lenovo INTEL X550-T1 SINGLE PORT 10GBASE-T ADAPTER
00MM850 - Lenovo INTEL X550-T1 SINGLE PORT 10GBASE-T ADAPTER
SKU:00MM850
Regular price
$717.53 USD
Regular price
Sale price
$717.53 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Intel X550 10GBASE-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking. This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
Specification:
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black, Green |
| Receive Side Scaling (RSS) | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Harmonized System (HS) code | 85176990 |
| Sustainability certificates | RoHS |
| Network | |
| VLAN tagging | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Jumbo frames | 9500 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| LAN controller | Intel® X550 |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Flow control support | Yes |
| Design | |
| Product colour | Black, Green |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| LED indicators | Yes |
| Component for | Server |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 with Xen VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 0.63" (16 mm) |
| Depth | 5.28" (134 mm) |
| Height | 2.72" (69 mm) |
| Packaging data | |
| Quantity | 1 |
| Performance | |
| Receive Side Scaling (RSS) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Other features | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 with Xen VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 |
| Jumbo frames | 9500 |
| Receive Side Scaling (RSS) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Quantity | 1 |
