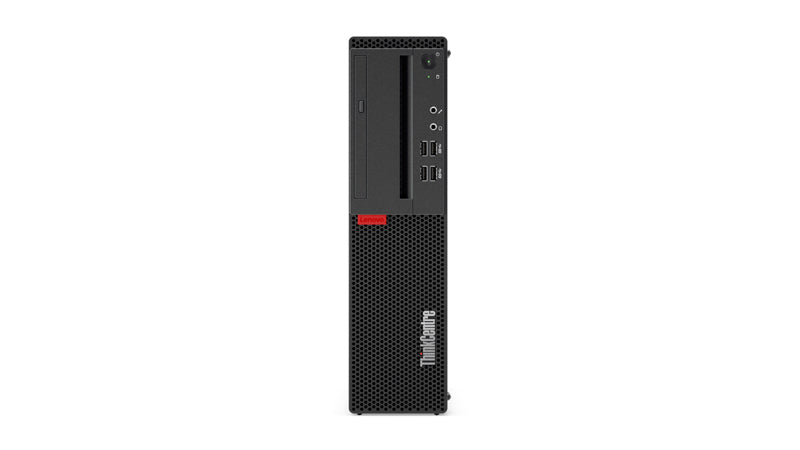

10MK0036US - Lenovo THINKCENTRE M910S, INTEL CORE I5-6500 (3.20GHZ, 6MB), WINDOWS 7 PROFESSIONAL 64

Small Form Factor Desktops That Power Your Business. Powerful, manageable, and tailored to your business. With the latest performance and storage technology, the ThinkCentre M910s SFF is fast and responsive – handling large files, images and video with ease. These PCs will empower employees to stay productive, while your clients' data stays reassuringly safe. With numerous ports and expansion options, these "desktop transformers" grow with your business. So for maximum horsepower and the freedom to upgrade at will, choose the ThinkCentre SFF that's big on performance.​



Specification:



Processor
Processor generation	6th gen Intel® Core™ i5
Stepping	R0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Thermal Design Power (TDP)	65 W
Tcase	71 °C
Processor series	Intel Core i5-6500 Desktop series
PCI Express configurations	1x16,2x8,1x8+2x4
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	6 MB
Processor frequency	3.2 GHz
Processor model	i5-6500
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.6 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Non-ECC	Yes
Internal memory	8 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD capacity	256 GB
Number of SSDs installed	1
Total storage capacity	256 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	1912
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® HD Graphics 530
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Product type	PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel® Q270
Sustainability certificates	RoHS, ENERGY STAR
Design
Intel segment tagging	Enterprise, Professional
Housing material	Metal
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Performance
Embedded options available	Yes
Product type	PC
Motherboard chipset	Intel® Q270
Software
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 7 Professional
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Smart Cache	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	SSE4.2,AVX 2.0,SSE4.1
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR2BX
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Graphics & IMC lithography	14 nm
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	88184
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply	210 W
Sustainability
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Width	3.64" (92.5 mm)
Depth	11.4" (290.5 mm)
Height	13.5" (343.5 mm)
Weight	11.9 lbs (5.4 kg)
Packaging content
Mouse included	Yes
Keyboard included	Yes
Other features
Intel segment tagging	Enterprise, Professional
On-board graphics adapter	Yes
Optical drives quantity	1
Processor manufacturer	Intel
