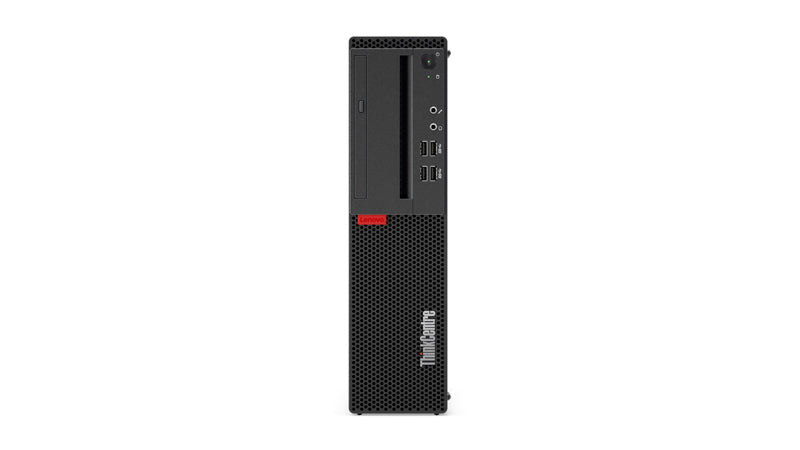

10MK0053US - Lenovo M910S,W10P,I5,4GB,16GB,1TB,3YR

Small Form Factor Desktops That Power Your Business. Powerful, manageable, and tailored to your business. With the latest performance and storage technology, the ThinkCentre M910s SFF is fast and responsive – handling large files, images and video with ease. These PCs will empower employees to stay productive, while your clients' data stays reassuringly safe. With numerous ports and expansion options, these "desktop transformers" grow with your business. So for maximum horsepower and the freedom to upgrade at will, choose the ThinkCentre SFF that's big on performance.​



Specification:



Processor
Processor generation	7th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Tjunction	80 °C
Thermal Design Power (TDP)	35 W
PCI Express configurations	2x8,1x8+2x4
Maximum number of PCI Express lanes	16
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.7 GHz
Conflict-Free processor	Yes
Processor cache	6 MB
Processor frequency	2.7 GHz
Processor model	i5-7500T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Non-ECC	Yes
Internal memory	16 GB
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD capacity	128 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	128 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x5912
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® HD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	2
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Mini PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel® B250
Sustainability certificates	RoHS, ENERGY STAR
Design
Housing material	Metal
Volume	1 L
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Performance
Embedded options available	Yes
Audio chip	ALC294
Password protection	Yes
Product type	Mini PC
Audio system	High Definition Audio
Motherboard chipset	Intel® B250
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015A
Supported instruction sets	AVX 2.0
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	97121
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Sustainability
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Volume	1 L
Width	1.36" (34.5 mm)
Depth	7.2" (182.9 mm)
Height	7.05" (179 mm)
Weight	2.91 lbs (1.32 kg)
Packaging content
Manual	Yes
Display included	No
Power cord included	Yes
Other features
On-board graphics adapter	Yes
Processor manufacturer	Intel
