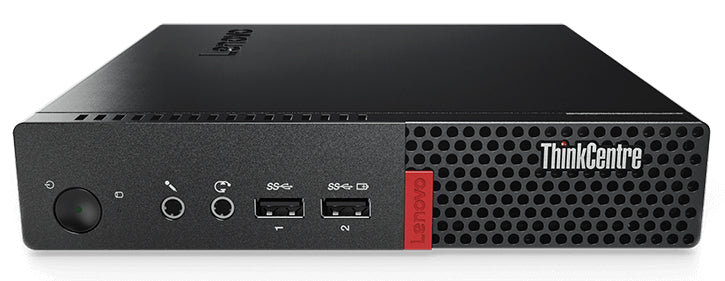

10MV000VUS - Lenovo M910Q, INTEL CORE I5-7500T (2.7GHZ, 6MB), WINDOWS 10 PRO 64, 4.0GB, 500GB SATA,

THINK BIG WITH A TINY DESKTOP The compact ThinkCentre M910 Tiny desktop boasts a footprint so small it can fit neatly on a bookshelf, behind a monitor, or even under a desk. Engineered to work in the toughest environments, Tiny can handle anything from minor bumps to extreme temperatures and dusty conditions, so you can focus on growing your business and getting your work done. Tiny Footprint, Big Statement At 96% smaller than a traditional desktop tower, the M910 Tiny is extremely compact. This tiny desktop fits just about anywhere and can be positioned horizontally or vertically—mount it on a wall, behind a monitor, or even under a desk. You can even power digital signage with a PC that’s easy to hide from view. It delivers reliable, professional-level performance, while freeing up valuable desk-space. The Benefits of Modular Design With the ThinkCentre M910 Tiny, you can create your own modular all-in-one PC. Simply use the Tiny inside the back of the ThinkCentre Tiny-in-One (TIO) display. Keep costs down when choosing to upgrade the display and computing power separately, and get more use from your assets over time. See the Bigger Picture With up to three independent displays, or four displays in Mosaic Mode, M910 Tiny expands the limits of desktop computing to enable greater productivity. Ideal for financial and creative industries – and all your multimedia, multitasking needs. Bigger Isn’t Necessarily Better Don’t be deceived by its miniature frame, as the ThinkCentre M910 Tiny punches well above its weight. Equipped with a 7th generation Intel® Core™ processor and PCIe SSD storage, you can power up in a flash and load files even faster. Intensive tasks like multimedia creation, graphic design, and number-crunching are a walk in the park. Help Is Just a Keystroke Away With high-performance Intel® Core™ vPro™ processors, your IT team can remotely access your fleet of desktops. They can easily roll out software upgrades or fixes to all PCs on the network, saving on both management costs and desk-side visit time. Lifecycle Stability With Intel® Stable Image Platform Program (SIPP), your ThinkCentre M910 Tiny is guaranteed to have platform availability for at least 12 months. So you can manage your PC lifecycle and keep costs down. Built for Business—Tested for Your Lifestyle The ThinkCentre M910 Tiny is built to last in any environment. It carries the Think name, which means it’s tested against military-specification requirements, as well as 200 rigorous quality checks. From enduring arctic temperatures of -20 degrees C, to desert heat of 60 degrees C, this device can more than handle the bumps and bruises of life.



Specification:



Processor
Processor generation	7th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Tjunction	80 °C
Thermal Design Power (TDP)	35 W
PCI Express configurations	2x8,1x8+2x4
Maximum number of PCI Express lanes	16
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.7 GHz
Conflict-Free processor	Yes
Processor cache	6 MB
Processor frequency	2.7 GHz
Processor model	i5-7500T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.3 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	4
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Internal memory	4 GB
Memory layout (slots x size)	1 x 4 GB
Maximum internal memory	32 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD
Number of HDDs installed	1
Optical drive type	No
HDD capacity	500 GB
HDD speed	7200 RPM
HDD size	2.5"
Card reader integrated	No
Total storage capacity	500 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x5912
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® HD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.1
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	2
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Mini PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel® Q270
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Housing material	Metal
Volume	1 L
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Performance
Embedded options available	Yes
Password protection	Yes
Product type	Mini PC
Motherboard chipset	Intel® Q270
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015A
Supported instruction sets	AVX 2.0
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	97121
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply	65 W
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	1 L
Width	1.36" (34.5 mm)
Depth	7.2" (182.9 mm)
Height	7.05" (179 mm)
Weight	2.91 lbs (1.32 kg)
Packaging content
Manual	Yes
Display included	No
Other features
On-board graphics adapter	Yes
Processor manufacturer	Intel
