Description

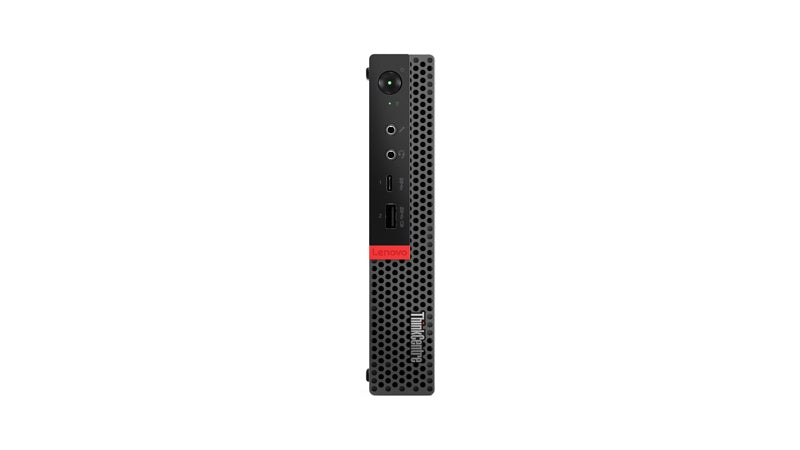

BUILT TO EMPOWER BUSINESSES The ThinkCentre M920x Tiny is a medley of power, speed, and robust security, fused in a compact 1L chassis. Equipped with the latest 8th Generation Intel® Processors and high-speed DDR4 memory, your Tiny PC can power through a multitude of tasks without any lags. The dGFX connected via the PCIe slot supports up to six displays, allowing you to view and compare graphical workloads with ease. The 65W standard voltage on this device consumes less power and prevents your PC from overheating, so you can perform routine tasks efficiently. Impressive Performance: the optional Intel® Optane™ memory accelerates device performance and responsiveness to boost productivity, while the Thunderbolt™ add-on card compatible with the Tiny enables you to take backup, edit, and share files at lightning-speed. Stronger Security Solutions: the Trusted Platform Module (TPM) 2.0 chip enhances data security by encrypting your confidential business data and customer information. Easy Manageability: with the 4-port LAN add-on card, you can transform the PCIe interface into four Ethernet ports to enable connectivity between computer networks and increase productivity.
Specification:
| Processor | |
|---|---|
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| Processor series | Intel Core i7-8700 Desktop Series |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| ECC supported by processor | No |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 12 MB |
| Processor frequency | 3.2 GHz |
| Processor model | i7-8700 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 12 |
| Processor cores | 6 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i7 |
| Memory | |
| Non-ECC | Yes |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Flash drive interface | PCI Express |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | M.2 |
| SSD capacity | 1000 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| Number of execution units | 24 |
| On-board graphics adapter ID | 0x3E92 |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | mini PC |
| Placement supported | Horizontal/Vertical |
| Motherboard chipset | Intel Q370 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Housing material | Metal |
| Volume | 1 L |
| Product colour | Black |
| Chassis type | mini PC |
| Placement supported | Horizontal/Vertical |
| Performance | |
| Embedded options available | Yes |
| Audio chip | Realtek ALC233VB2 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel Q370 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR3QS |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 126686 |
| Intel® Optane™ Memory Ready | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| Power supply | 135 W |
| Certificates | |
| Certification | ErP Lot 3, TCO, TUV |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Volume | 1 L |
| Width | 7.05" (179 mm) |
| Depth | 7.2" (182.9 mm) |
| Height | 1.36" (34.5 mm) |
| Weight | 2.91 lbs (1.32 kg) |
| Packaging content | |
| Manual | Yes |
| Display included | No |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics adapter | Yes |
| Processor manufacturer | Intel |
