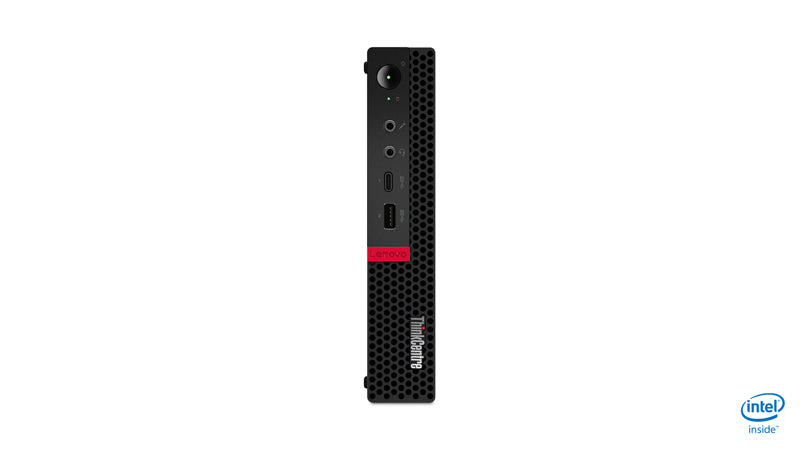

10YM008NUS - Lenovo M630E,W10P,I3,8GB,128GB,1YR

High performance This small PC will help in solving large problems. The ThinkCentre M630e Tiny is a compact, yet very powerful device that has impressive features: an Intel® Core ™ processor, up to 16GB DDR4 memory, support for Intel® Optane ™ technology and a wide selection of drives. Compact design The ThinkCentre Ecosystem offers a wide range of options. With easy-to-install accessories, you can connect a ThinkCentre M630e Tiny PC to a projector, hang it on a wall, and even fix it on the back of a desktop. You can also create your own modular monoblock by attaching a PC to a ThinkCentre Tiny-in-One monitor. An additional advantage: you can reduce hardware costs by upgrading your monitor and ThinkCentre M630e PC separately. Full security The ThinkCentre M630e Tiny helps protect corporate information with security features such as Smart USB Protection that prevent malware from entering your system through USB ports. Universal communications Multiple ports and I / O connectors provide high-speed connectivity to peripheral devices to simplify multitasking. And the USB-C port allows you to quickly and easily share information. System administrators will love the Smart Power On feature, which allows you to remotely turn on a device using a simple keyboard shortcut. Reliability and durability Strict quality control ensures that the ThinkCentre M630e Tiny will last you a long time. Using a PC outside a clean office space? A dust cover (optional) prevents contamination of internal components and ensures reliable operation for a long time. Saving electricity and money The ThinkCentre M630e Tiny PC complies with Energy® Star 7.0, GREENGUARD®, EPEAT ™ Bronze and RoHS / WEEE / REACH environmental standards. Energy-saving technologies help reduce utility bills and increase profits, as well as help to take care of a clean environment.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Bus type	OPI
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM,LPDDR3-SDRAM
Memory clock speeds supported by processor	2133 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express configurations	1x4,2x2
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Memory bandwidth supported by processor (max)	37.5 GB/s
Processor cache type	Smart Cache
Configurable TDP-down frequency	0.8 GHz
Processor cache	6 MB
Processor frequency	1.6 GHz
Processor model	i5-8265U
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.9 GHz
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor threads	8
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i5
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	25 W
Memory
Non-ECC	Yes
ECC	No
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	16 GB
Memory slots	1x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD
Optical drive type	No
Card reader integrated	No
Total storage capacity	1000 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA0
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® UHD Graphics
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	4.2
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Dual Band Wireless-AC 8265
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 2.0 ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	mini PC
Intel® Smart Response Technology	Yes
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel SoC
Sustainability certificates	RoHS, ENERGY STAR
Design
Housing material	Metal
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Embedded options available	No
Audio chip	Realtek ALC233VB
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel SoC
Software
Operating system architecture	64-bit
Pre-installed software	Lenovo Vantage, LinkedIn
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel® Secure Key	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Processor ARK ID	149088
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Smart Response Technology	Yes
Power
Power supply	65 W
Certificates
Certification	ErP Lot 3 TCO WEEE REACH
Sustainability
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.36" (34.5 mm)
Weight	2.91 lbs (1.32 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics adapter	Yes
Processor manufacturer	Intel
