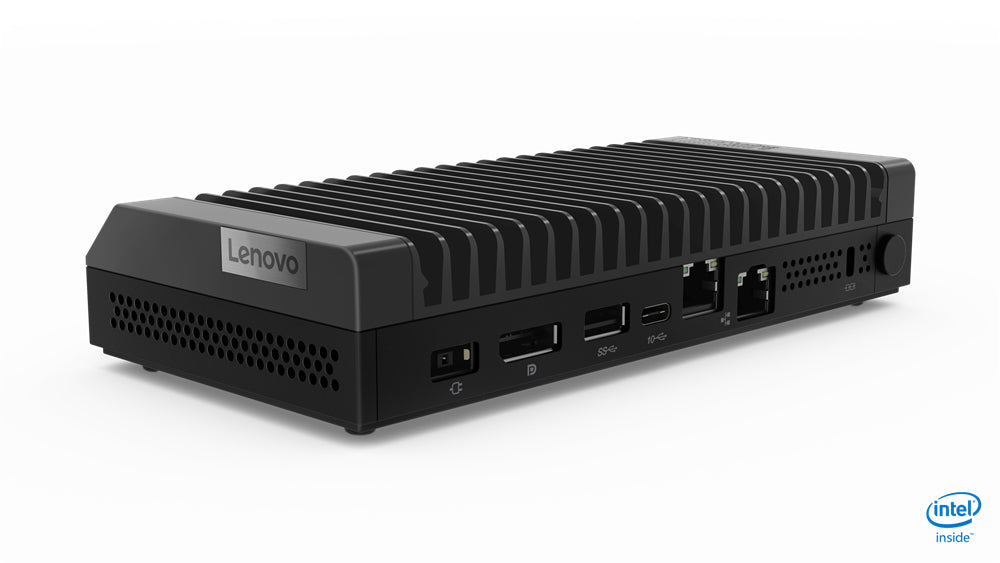

11AH000YUS - Lenovo DESKTOP TC M90N-1 4205U 4G 256 W10P

Work smarter, not harder Increased productivity and better workflow are just two of the ways that the Internet of Things, or IoT, can help an organization. By seamlessly interacting with smart devices and sensors, both near and far, the ThinkCentre M90n Nano IoT lets your business leverage the real benefits of IoT. Powerful & versatile Thanks to 8th Gen Intel@ processors, the ThinkCentre M90n Nano IoT performs as fast and reliable as a regular PC—but is only half the size. And with the USB-C port, you have expansion options, too. Quiet as a mouse, strong as an ox Being fanless, the ThinkCentre M90n Nano IoT is far quieter than most PCs. So you can tuck it almost anywhere—under a desk, in a cupboard, or on a shelf. What’s more, it meets the most stringent of durability tests (including military standards) and can withstand the harshest of work environments, such as a desert or high altitude. Here today, here tomorrow Why rip out legacy systems, when an I/O box can breathe new life into them, quickly and easily? The extra ports and connectivity can enhance your investment and bottom line, too. In addition, you can affix the ThinkCentre M90n Nano IoT to a VESA mount, industrial DIN rail, or any type of bracket in a flash. IoT-ready & -certified Designed with the ever-expanding IoT network in mind, the ThinkCentre M90n Nano IoT has been certified for Windows 10 IoT Enterprise, Microsoft Azure IoT Edge, and Ubuntu. It also supports 4G LTE technology, enabling it to communicate faster with your network. Safely under lock & key Each ThinkCentre M90n Nano IoT is hardwired with the Trusted Platform Module (TPM) chipset, an international standard for safeguarding critical data like passwords and encryption keys. In addition, you can physically secure it with a Kensington lock.



Specification:



Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM,LPDDR3-SDRAM
Memory clock speeds supported by processor	2133,1866 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express configurations	1x4,2x2,1x2+2x1,4x1
Maximum number of PCI Express lanes	12
Configurable TDP-down	12.5 W
Memory bandwidth supported by processor (max)	37.5 GB/s
Processor cache type	Smart Cache
Configurable TDP-down frequency	0.8 GHz
Processor cache	2 MB
Processor frequency	1.8 GHz
Processor model	4205U
Number of processors installed	1
Processor manufacturer	Intel
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor threads	2
Processor cores	2
PCI Express slots version	2.0
Processor family	Intel® Celeron®
Memory
Non-ECC	Yes
ECC	No
Internal memory	4 GB
Maximum internal memory	4 GB
Internal memory type	DDR4-SDRAM
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	512 GB
SSD form factor	M.2
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	900 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA1
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® UHD Graphics 610
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	1
Serial ports quantity	2
Microphone in	No
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
Expansion slots
PCI Express slots version	2.0
Technical details
Intel 64	Yes
Product type	Mini PC
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Intel® Smart Response Technology	Yes
Placement supported	Horizontal/Vertical
Sustainability certificates	RoHS, ENERGY STAR
Design
Volume	0.55 L
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Performance
Embedded options available	No
Audio chip	Realtek ALC233VB
Product type	Mini PC
Audio system	High Definition Audio
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel® Secure Key	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Supported instruction sets	SSE4.1,SSE4.2
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	189309
Intel 64	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Smart Response Technology	Yes
Power
Power supply	65 W
Weight & dimensions
Volume	0.55 L
Width	7.05" (179 mm)
Depth	3.46" (88 mm)
Height	1.36" (34.5 mm)
Weight	25.4 oz (720 g)
Packaging content
Display included	No
Other features
On-board graphics adapter	Yes
Processor manufacturer	Intel
