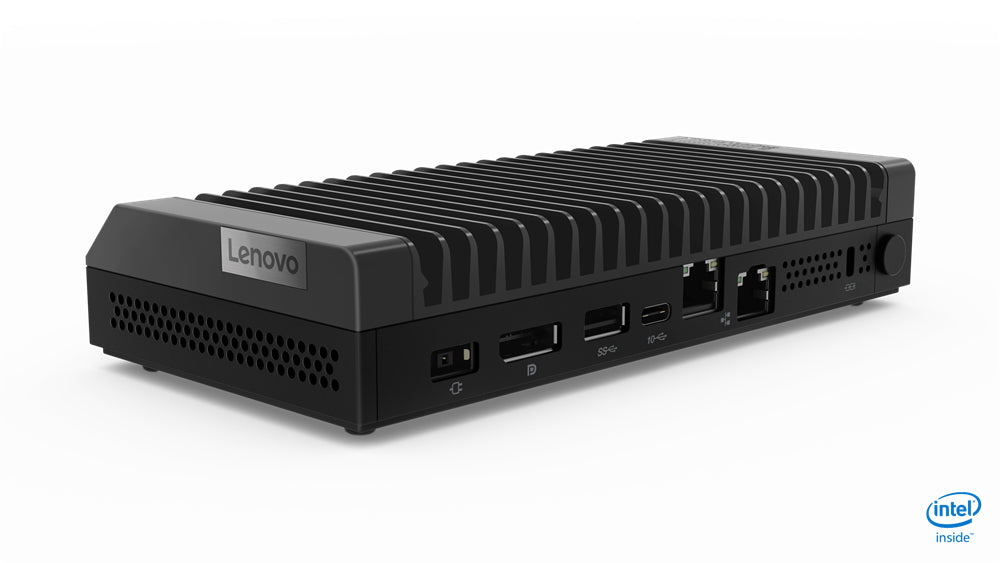

Work smarter, not harder Increased productivity and better workflow are just two of the ways that the Internet of Things, or IoT, can help an organization. By seamlessly interacting with smart devices and sensors, both near and far, the ThinkCentre M90n Nano IoT lets your business leverage the real benefits of IoT. Powerful & versatile Thanks to 8th Gen Intel@ processors, the ThinkCentre M90n Nano IoT performs as fast and reliable as a regular PC—but is only half the size. And with the USB-C port, you have expansion options, too. Quiet as a mouse, strong as an ox Being fanless, the ThinkCentre M90n Nano IoT is far quieter than most PCs. So you can tuck it almost anywhere—under a desk, in a cupboard, or on a shelf. What’s more, it meets the most stringent of durability tests (including military standards) and can withstand the harshest of work environments, such as a desert or high altitude. Here today, here tomorrow Why rip out legacy systems, when an I/O box can breathe new life into them, quickly and easily? The extra ports and connectivity can enhance your investment and bottom line, too. In addition, you can affix the ThinkCentre M90n Nano IoT to a VESA mount, industrial DIN rail, or any type of bracket in a flash. IoT-ready & -certified Designed with the ever-expanding IoT network in mind, the ThinkCentre M90n Nano IoT has been certified for Windows 10 IoT Enterprise, Microsoft Azure IoT Edge, and Ubuntu. It also supports 4G LTE technology, enabling it to communicate faster with your network. Safely under lock & key Each ThinkCentre M90n Nano IoT is hardwired with the Trusted Platform Module (TPM) chipset, an international standard for safeguarding critical data like passwords and encryption keys. In addition, you can physically secure it with a Kensington lock.
Specification:
| Processor | |
|---|---|
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Whiskey Lake |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM,LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133,1866 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express configurations | 1x4,2x2,1x2+2x1,4x1 |
| Maximum number of PCI Express lanes | 12 |
| Configurable TDP-down | 12.5 W |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache | 2 MB |
| Processor frequency | 1.8 GHz |
| Processor model | 4205U |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1528 |
| Processor threads | 2 |
| Processor cores | 2 |
| PCI Express slots version | 2.0 |
| Processor family | Intel® Celeron® |
| Memory | |
| Non-ECC | Yes |
| ECC | No |
| Internal memory | 4 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD interface | PCI Express |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 900 MHz |
| On-board graphics adapter base frequency | 300 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x3EA1 |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® UHD Graphics 610 |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 2 |
| Microphone in | No |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| Technical details | |
| Intel 64 | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | mini PC |
| Audio system | High Definition Audio |
| Intel® Smart Response Technology | Yes |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Sustainability certificates | RoHS, ENERGY STAR |
| Design | |
| Volume | 0.55 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC233VB |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Product type | Mini PC |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Supported instruction sets | SSE4.1,SSE4.2 |
| Processor package size | 46x24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 189309 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Smart Response Technology | Yes |
| Sustainability | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Volume | 0.55 L |
| Width | 7.05" (179 mm) |
| Depth | 3.46" (88 mm) |
| Height | 2.41" (61.3 mm) |
| Weight | 2.65 lbs (1.2 kg) |
| Packaging content | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| On-board graphics adapter | Yes |
| Processor manufacturer | Intel |
| Built-in speaker(s) | Yes |
