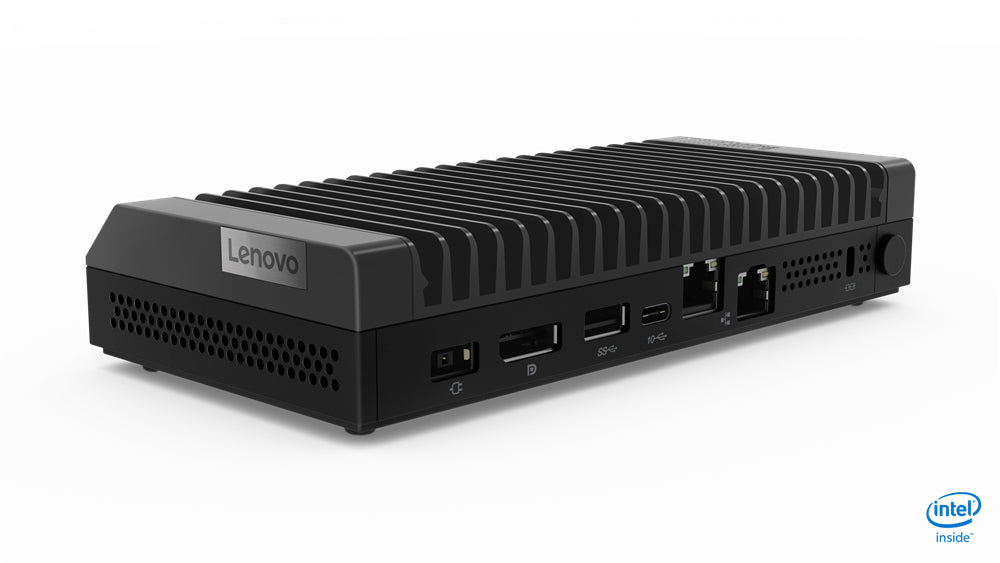

11AK000PUS - Lenovo TOPSELLER THINKCENTRE M90N-1

Work smarter, not harder Increased productivity and better workflow are just two of the ways that the Internet of Things, or IoT, can help an organization. By seamlessly interacting with smart devices and sensors, both near and far, the ThinkCentre M90n Nano IoT lets your business leverage the real benefits of IoT. Powerful & versatile Thanks to 8th Gen Intel@ processors, the ThinkCentre M90n Nano IoT performs as fast and reliable as a regular PC—but is only half the size. And with the USB-C port, you have expansion options, too. Quiet as a mouse, strong as an ox Being fanless, the ThinkCentre M90n Nano IoT is far quieter than most PCs. So you can tuck it almost anywhere—under a desk, in a cupboard, or on a shelf. What’s more, it meets the most stringent of durability tests (including military standards) and can withstand the harshest of work environments, such as a desert or high altitude. Here today, here tomorrow Why rip out legacy systems, when an I/O box can breathe new life into them, quickly and easily? The extra ports and connectivity can enhance your investment and bottom line, too. In addition, you can affix the ThinkCentre M90n Nano IoT to a VESA mount, industrial DIN rail, or any type of bracket in a flash. IoT-ready & -certified Designed with the ever-expanding IoT network in mind, the ThinkCentre M90n Nano IoT has been certified for Windows 10 IoT Enterprise, Microsoft Azure IoT Edge, and Ubuntu. It also supports 4G LTE technology, enabling it to communicate faster with your network. Safely under lock & key Each ThinkCentre M90n Nano IoT is hardwired with the Trusted Platform Module (TPM) chipset, an international standard for safeguarding critical data like passwords and encryption keys. In addition, you can physically secure it with a Kensington lock.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i3
Configurable TDP-down	12.5 W
Configurable TDP-down frequency	1.6 GHz
Processor cache	4 MB
Processor frequency	2.2 GHz
Processor model	i3-8145UE
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.9 GHz
Processor cores	2
Processor family	Intel® Core™ i3
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	25 W
Memory
Non-ECC	Yes
Internal memory	8 GB
Maximum internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	NVMe, PCI Express
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 620
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Serial ports quantity	4
Microphone in	No
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	4
DVI port	No
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black, Gray
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Sustainability certificates	ENERGY STAR, EPEAT Silver, REACH, RoHS, TCO
Design
Volume	0.55 L
Cable lock slot type	Kensington
Product colour	Black, Gray
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Embedded options available	Yes
Audio chip	Realtek ALC233VB
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, REACH, RoHS, TCO
Weight & dimensions
Volume	0.55 L
Width	7.05" (179 mm)
Depth	3.46" (88 mm)
Height	2.41" (61.3 mm)
Weight	2.65 lbs (1.2 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
