Description

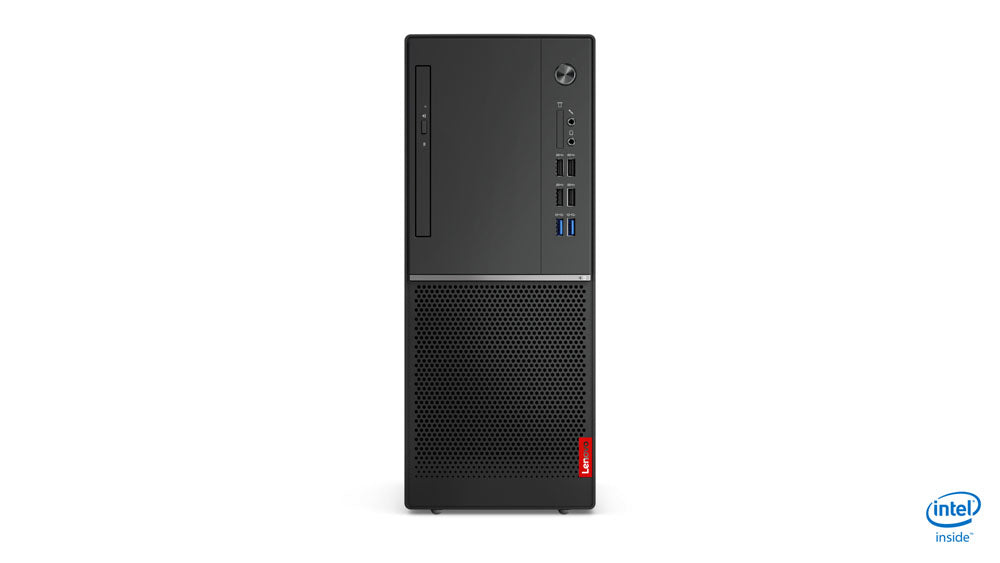

Designed for business, ready for the future Powerful and secure, the V530 Tower is designed to keep users productive for the long term—and make IT managers’ lives easier. Featuring Intel® processing, robust memory, and storage options, and high-speed USB ports, this desktop workhouse is easy to manage and energy efficient. Perfect for users—and for IT managers Business-class and future-ready, the V530 is a great choice for progressive IT managers looking for reliable, secure desktops. Design details like easy-access USB ports make users' lives easier, while powerful Intel® processing keeps them productive. Security features like Trusted Platform Module 2.0 provide peace of mind. And built-in tools like Lenovo Vantage make system management a snap. Performance you can count on Cutting-edge Intel® processing, robust storage and memory configurations, and optional Intel® Optane™ mean users have the tools to get things done. They’ll enjoy seamless multitasking, rich content creation, and easy handling of heavy files and apps. Extra protection for your data Prevent sensitive data and customer information from leaking with Smart USB Protection. This BIOS-based technology lets you configure USB ports to respond only to designated devices, restricting who can transfer files to/from the desktop. Easy collaboration, easy management File sharing on the V530 is fast as well as secure thanks to USB 3.1 Gen 2 ports. These connectors transfer data twice as fast as previous-generation ports. Reduced energy costs The V530 boasts multiple green certifications, including Energy Star 7.0 and GREENGUARD®. So while you do your bit for the environment, you can save on energy costs, too.
Specification:
| Processor | |
|---|---|
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| PCI Express configurations | 1x8+2x4,1x16,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Processor cache type | Smart Cache |
| Processor cache | 9 MB |
| Processor frequency | 2.9 GHz |
| Processor model | i5-9400 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.1 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 6 |
| Processor cores | 6 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i5 |
| Memory | |
| Non-ECC | Yes |
| Internal memory | 4 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Storage | |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,MMC+,MS PRO,SD,SDHC,SDXC |
| Total storage capacity | 1000 GB |
| Total HDDs capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0X3E98/x92 |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Motherboard chipset | Intel B365 |
| Design | |
| Volume | 15 L |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC623-CG |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel B365 |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 134898 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| Power supply | 180 W |
| Weight & dimensions | |
| Volume | 15 L |
| Width | 5.71" (145 mm) |
| Depth | 10.9" (276 mm) |
| Height | 14.2" (360 mm) |
| Weight | 12.6 lbs (5.7 kg) |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics adapter | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
