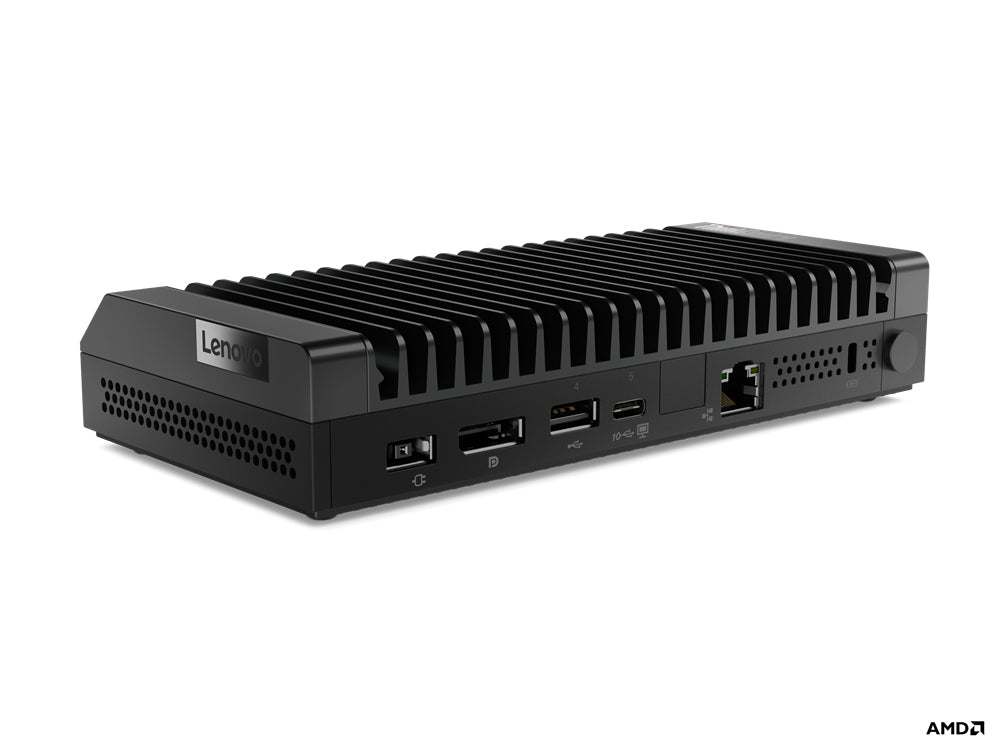

11BW0008US - Lenovo THINKCENTRE M75N, AMD ATHLON SILVER 3050E (1.40GHZ, 1MB), WINDOWS 10 IOT ENTERPR

Nano in size, not in performance Only a third of the size of a 1 Litre desktop, the ThinkCentre M75n Nano Desktop is just as powerful—and 30% more energy-efficient. Fueled by up to AMD Ryzen™ 5 PRO processors, it delivers real-world performance to drive productivity, along with business-critical security and easy-to-use manageability.  With portability comes flexibility As light as a paperback book and the thickness of two smartphones back to back, the ThinkCentre M75n Desktop doesn’t compromise on connectivity nor performance. In fact, its portability means that it can be wherever there's a monitor—from a shared workspace to the kitchen table.  So many options The ThinkCentre M75n is incredibly versatile. As a grab-and-go PC, it's easily ferried from work to home and back again. Alternatively, it can be mounted anywhere—on a wall, behind a Tiny-in-One monitor*, under a table**. It can also be hooked up to a dock or form part of a custom-build PC. The choice is yours. *Connect your M75n Nano to a TIO Cube and slide it in a TIO monitor. **Compatible with VESA mounting and bracket accessories, sold separately. And smart too Thanks to the USB-C port, both data and power can be transferred at once, enabling a monitor to power the ThinkCentre M75n Desktop rather than an adapter plug. With Smart Power On, you can fire up the ThinkCentre M75n via a keyboard without touching the on button—ideal for when the machine is housed in a hard-to-reach place. Built to last It has been military-grade tested for durability, ruggedness, and reliability. The ThinkCentre M75n has also undergone more than 200 checks to ensure that it runs in extreme conditions and the harshest of places—from a hot, dry desert to the Arctic Circle.  Secure from the inside out Behind every ThinkCentre, you’ll find ThinkShield—multiple layers of data and device security. The ThinkCentre M75n includes the Trusted Platform Module (TPM) to encrypt your critical data and passwords, Smart USB protection to thwart rogue USB use, and a Kensington lock slot to physically secure your nano PC.



Specification:



Processor
Processor cache type	L3
Processor cache	4 MB
Processor frequency	1.4 GHz
Processor model	3050e
Number of processors installed	1
Processor manufacturer	AMD
Processor boost frequency	2.8 GHz
Processor threads	4
Processor cores	2
Processor family	AMD Athlon Silver
Memory
Non-ECC	Yes
Internal memory	4 GB
Maximum internal memory	4 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	NVMe, PCI Express 3.0
SSD capacity	128 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	128 GB
SSD form factor	M.2
Total SSDs capacity	128 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon Graphics
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Dual Band Wireless-AC 9260
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Realtek RTL8111FP-CG
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	1
Serial ports quantity	2
Microphone in	No
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	AMD SoC
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Design
Volume	0.55 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Audio chip	Realtek ALC233
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	AMD SoC
Software
Operating system installed	Windows 10 IoT Enterprise
Power
Power supply	65 W
Certificates
Certification	MIL-STD-810H
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Volume	0.55 L
Width	7.05" (179 mm)
Depth	3.46" (88 mm)
Height	1.36" (34.5 mm)
Weight	25.4 oz (720 g)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	AMD
