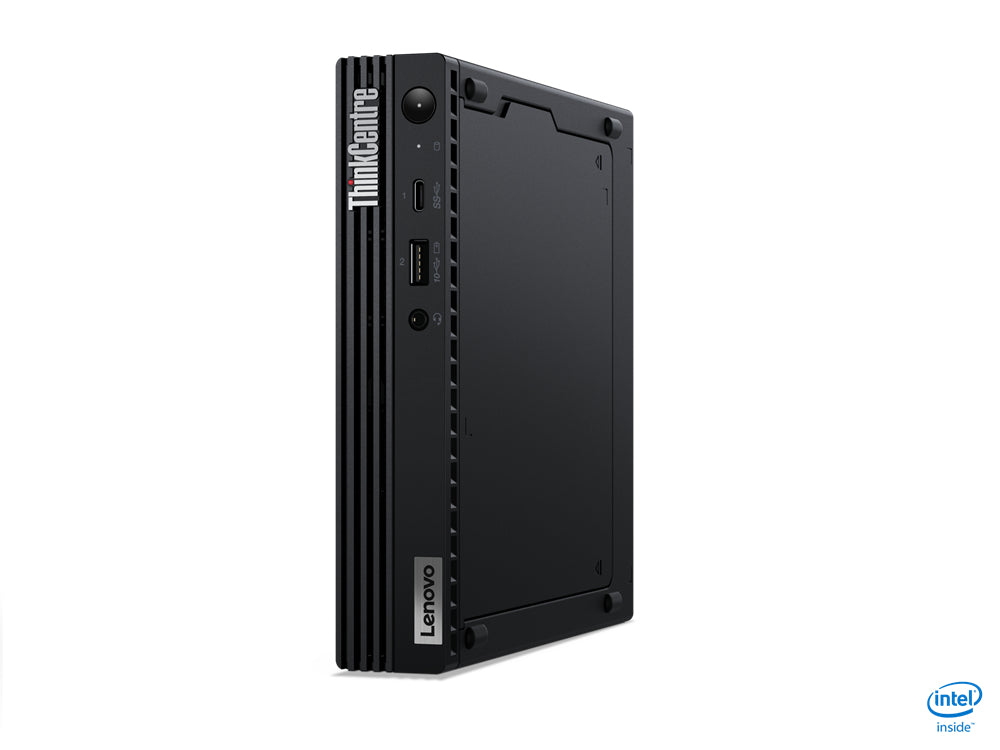

11DN0047US - Lenovo TOPSELLER THINKCENTRE M80Q

The right balance of performance & size Offering mainstream performance and productivity plus the manageability of the optional Intel vPro® platform, the ThinkCentre M80q desktop strikes a great balance between tiny footprint and powerful performance. Its 10th Gen Intel® Core™ vPro® processor and fast DDR4 memory give it the power you need to get the job done. Bundle it with a Tiny-in-One modular display to create a superior, more efficient all-in-one. ThinkShield security ThinkShield, Lenovo's comprehensive & customizable security solution, provides end-to-end protection for your critical data and business technology with built-in security features. A Trusted Platform Module (TPM) 2.0 chip encrypts your passwords, while BIOS-based Smart USB Protection prevents unauthorized users from plugging in and accessing your files. The device is also equipped with a Kensington lock slot, enabling you to physically secure it to your desk or other space. Reliably built, reliability-tested ThinkCentre PCs are tested against 10 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from temperature extremes to vibrations and shocks, you can trust your ThinkCentre M80q to handle whatever the job throws at it. Convenient & configurable The ThinkCentre M80q desktop offers remote power-up and supports up to three independent monitors. Four USB ports—one with fast-charging capability—and other connectors allow plenty of peripherals. Configure it the way you want, then expand it with tool-less access as your business grows. A great fit, a great look The ThinkCentre M80q fits almost anywhere, with extra stability from its optional ThinkCentre Vertical Stand. Multiple mounting kits are available, or simply leave it on a shelf or a desk, horizontal or vertical. Its modernized, Raven Black chassis will look great wherever you put it. Green design, comfortable usage The ThinkCentre M80q Tiny meets multiple global sustainability standards, including Energy Star® 8.0, EPEAT® Gold, RoHS, and more. It’s certified for low noise emission by TÜV Rheinland, and its high-efficiency adapter makes for low power consumption. It can also be equipped with an optional dust shield, for added environmental protection and longer life.



Specification:



Processor
Processor generation	10th gen Intel® Core™ i7
Configurable TDP-down	25 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.3 GHz
Processor cache	16 MB
Processor frequency	2 GHz
Processor model	i7-10700T
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor cores	8
Processor family	Intel Core i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD
Number of HDDs installed	1
Optical drive type	No
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD interface	SATA III
Card reader integrated	No
Total storage capacity	1000 GB
Total HDDs capacity	1000 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® UHD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1
Serial ports quantity	1
Microphone in	No
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Technical details
Number of 2.5" bays	1
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q470
Sustainability certificates	ENERGY STAR, ErP, RoHS, TCO
Design
Volume	1 L
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Audio chip	Realtek ALC233VB
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q470
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Clear Video Technology	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	135 W
Sustainability
Sustainability certificates	ENERGY STAR, ErP, RoHS, TCO
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (183 mm)
Height	1.36" (34.5 mm)
Weight	2.76 lbs (1.25 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics adapter	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
