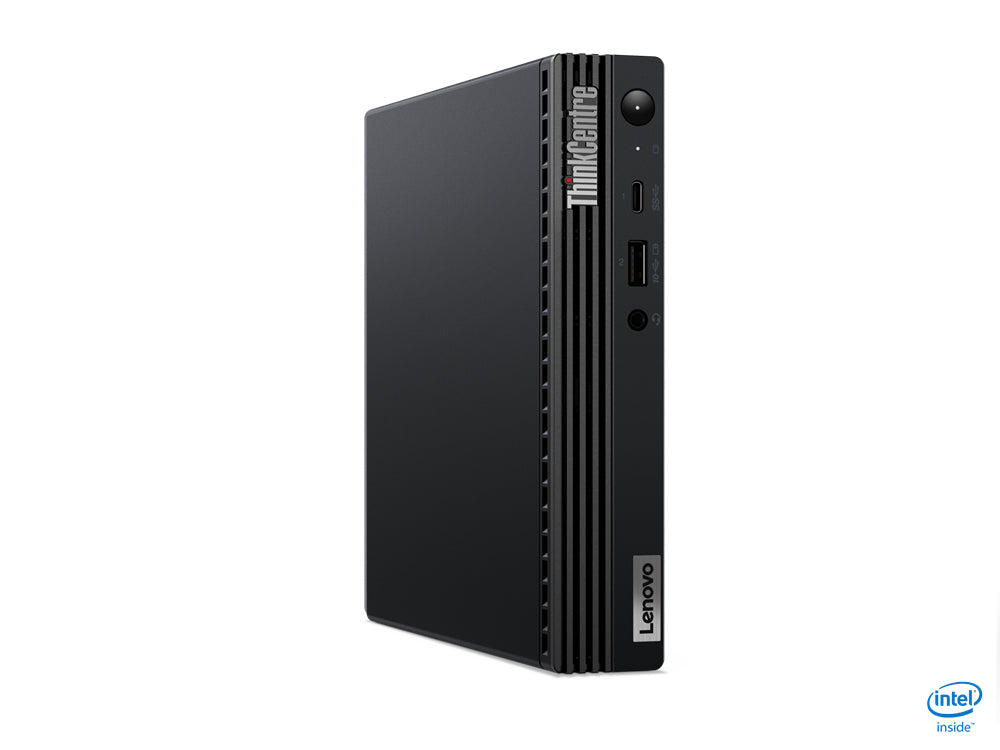

11DT0079US - Lenovo TOPSELLER THINKCENTRE M70Q

Balancing footprint & performance A 1 Litre enterprise-level powerhouse with mainstream performance and productivity, the ThinkCentre M70q Tiny desktop strikes a perfect balance between performance and footprint. Its powerful 10th Gen Intel® Core™ processor and fast DDR4 memory are ready to start crossing items off your to-do list, with configurable storage options as well. Bundle it with a to create your own all-in-one. Big protection for this Tiny Lenovo’s ThinkShield security solutions protect your device and data via hardware and software working together. A TPM 2.0 chip encrypts your passwords, while BIOS-based Smart USB Protection prevents unauthorized users from plugging in and accessing your files. The device is also equipped with a Kensington lock slot, enabling you to physically secure it to your desk or other space. Built & tested for reliability ThinkCentre PCs are tested against 10 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from temperature extremes to vibrations and shocks, you can trust your ThinkCentre M70q Tiny to handle whatever the job throws at it. Convenient & configurable The ThinkCentre M70q Tiny desktop offers remote power-up and supports up to three independent monitors. Four USB ports—one with fast-charging capability–and a host of other ports and options allow plenty of other peripherals. Its slots and add-ons mean you can configure it the way you want, while tool-less access makes it easy to expand and grow with your business. Fits anywhere—and looks good there Not much bigger than a paperback book, the ThinkCentre M70q Tiny is easy to deploy in any location, and its optional ThinkCentre Vertical Stand provides extra stability wherever that may be. Multiple mounting kits are available, or simply leave it on a shelf or a desk, horizontal or vertical. It’s modernized, Raven Black chassis will look great wherever you put it. Sustainable design & usage The ThinkCentre M70q Tiny meets multiple global sustainability standards, including Energy Star® 8.0, EPEAT® Gold, RoHS, and more. It’s certified for low noise emission by TÜV Rheinland, and its high-efficiency adapter makes for low power consumption. It can also be equipped with an optional dust shield, for added environmental protection and longer life.



Specification:



Processor
Processor generation	10th gen Intel® Core™ i7
Configurable TDP-down	25 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.3 GHz
Processor cache	16 MB
Processor frequency	2 GHz
Processor model	i7-10700T
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor cores	8
Processor family	Intel® Core™ i7
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	NVMe, PCI Express
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1000 GB
SSD form factor	M.2
Total SSDs capacity	1000 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6 AX201
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Microphone in	No
Headphone outputs	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel H470
Sustainability certificates	RoHS
Design
Housing material	Metal
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Audio chip	Realtek ALC233VB
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel H470
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Clear Video Technology	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	135 W
Certificates
Certification	ErP Lot 3, TCO 8.0, MIL-STD-810H
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (183 mm)
Height	1.46" (37 mm)
Weight	2.76 lbs (1.25 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
