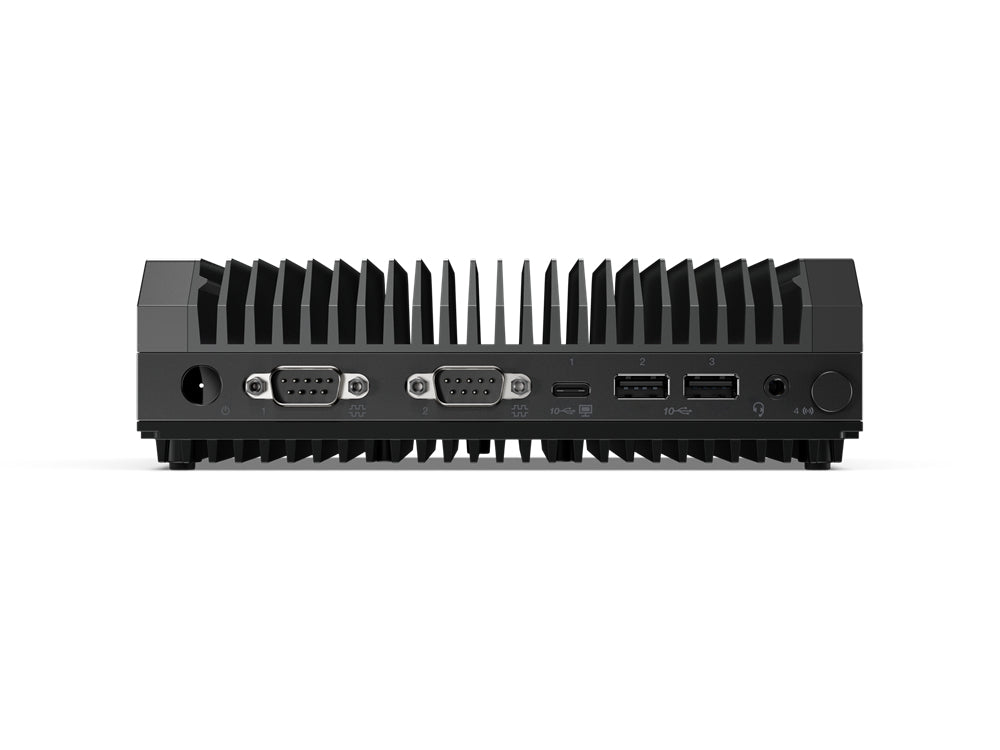

11NA000YUS - Lenovo DESKTOP TE SE30 I31115 8G 512G W10IOT

Excellent performance in a compact body Compact, rugged and reliable, the ThinkEdge SE30 is an edge IoT-dedicated terminal with the tiny footprint of a 0.81L device. Its 11th Gen Intel® Core™ i5-1145GRE / i3-1115GRE processors for IoT and embedded devices support Wifi, Bluetooth™ and 4G LTE or 5G WWAN wireless connections to efficiently transport your IoT data to the cloud or your data center. Ideal for use in harsh environments With an innovative fanless design that guarantees efficient heat dissipation, the SE30 supports a thermal operating temperature range from -20° to 60° C. Its MIL-STD-tested device reliability offers durable performance for uninterrupted productivity, even in harsh conditions. Secure & reliable The SE30’s Kensington and VESA mount locks mean the device stays where you put it, and paired with RSA encryption to secure user data, a hardware watchdog timer helps ensure continuous operation. With MIL-STD810H compliant robustness, and continuous operation 24 hours a day, 365 days a year, you can install it with confidence. Flexible network connectivity Built for evolving IoT environments, the ThinkEdge SE30 supports 4G and 5G high-speed communication and quickly and securely collects, analyzes and transmits your IoT data to the cloud or data center.



Specification:



Processor
Processor generation	11th gen Intel® Core™ i3
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.7 GHz
Processor cache	6 MB
Processor frequency	2.2 GHz
Processor model	i3-1115GRE
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.9 GHz
Processor threads	4
Processor cores	2
Processor family	Intel® Core™ i3
Configurable TDP-up frequency	3 GHz
Configurable TDP-up	28 W
Memory
Internal memory	8 GB
Maximum internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	NVMe, PCI Express 3.0
SSD capacity	1000 GB
Number of SSDs installed	1
Total storage capacity	1000 GB
SSD form factor	M.2
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	100,1000,2500 Mbit/s
WLAN controller model	Intel Dual Band Wireless-AC 9260
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	1.4b
Serial ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Cable lock slot	Yes
Motherboard chipset	Intel SoC
Sustainability certificates	ErP, REACH, RoHS, WEEE
Design
Volume	0.81 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Cable lock slot	Yes
Performance
Embedded options available	Yes
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel SoC
Software
Operating system language	English
Operating system installed	Windows 10 IoT Enterprise
Processor special features
Embedded options available	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Power
Power supply	65 W
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	-20 - 60 °C
Sustainability
Sustainability certificates	ErP, REACH, RoHS, WEEE
Weight & dimensions
Volume	0.81 L
Width	7.05" (179 mm)
Depth	3.46" (88 mm)
Height	2.03" (51.5 mm)
Packaging content
Mouse included	No
Keyboard layout	QWERTY
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
