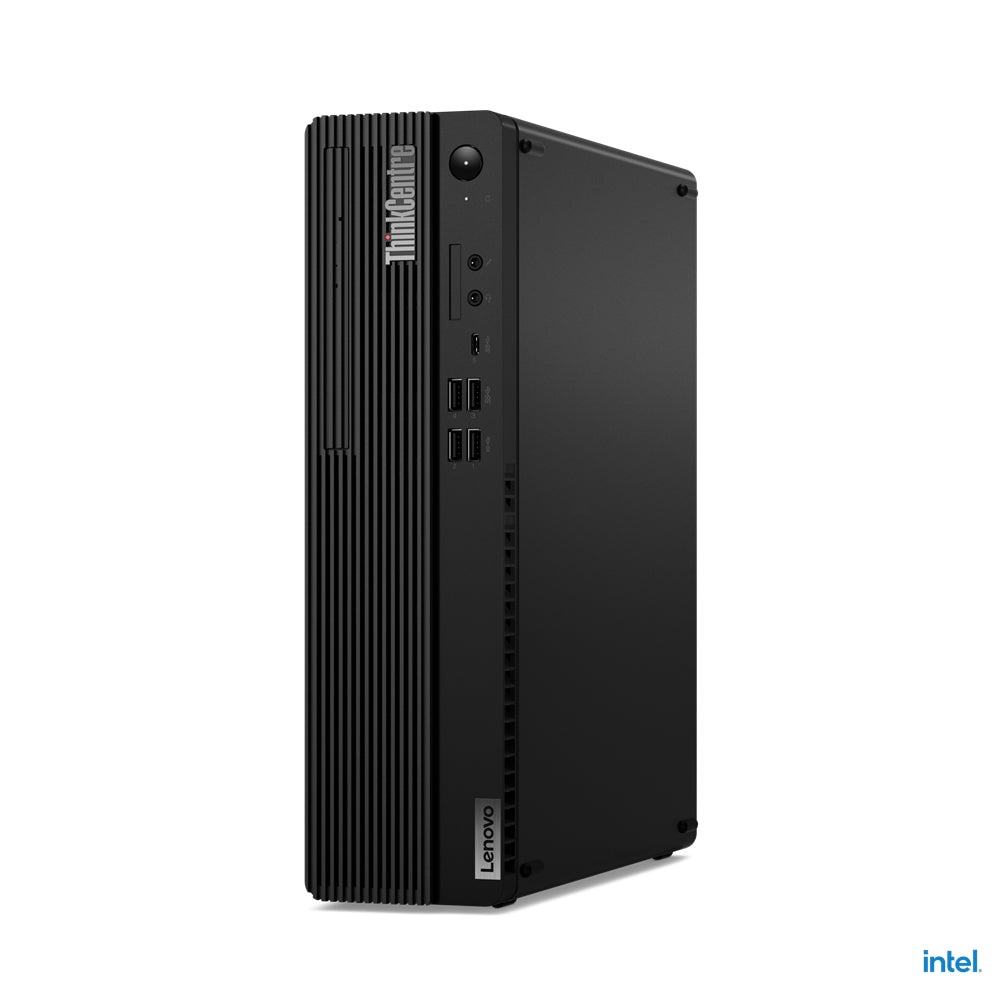

11T80039US - Lenovo TC M70T G3,W10P,I7,16GB,512GB,3YR

Power & flexibility in a small form factor The ThinkCentre M70s Gen 3 (Intel) small form factor desktop PC is engineered to save space and handle tasks like larger tower PCs can. At 8.2L, it improves productivity and employee experience with its power and convenience, while its sustainable design enhances your company’s green credentials. Dependable performance The ThinkCentre M70s Gen 3 (Intel) is designed for powerful productivity with up to 12th Gen Intel® Core™ i9 vPro® processors. Up to 128 GB of DDR4 memory and dedicated graphics options help you tackle multitasking, data-intensive operations, and complex graphic projects–all in a space-saving form factor. Dependable speed Boot up, search, and access your data quickly and reliably with optional solid-state drive (SSD) storage, while 3D NAND technology ensures reliable performance and optimal power consumption for your PC. Productivity that grows with you Whether multitasking administrative tasks, crunching data-intensive analytics, or editing high-resolution graphics, you never sacrifice performance. Engineered for upgradability, the M70s Gen 3 comes equipped with multiple I/O ports and expansion slots so you can configure your PC for your specific needs. Smart. Easy. Connected. You never lack connectivity for your peripherals with multiple port and wireless options. And thanks to the innovative Smart Cable, the M70s Gen 3 collaborates efficiently with USB devices and even another laptop or tablet. Its DP and HDMI ports allow you to run up to four monitors simultaneously. Additional expansion slots allow you to configure your PC further. Secure your data & your business With Lenovo ThinkShield, hardware and software security deliver peace of mind. Discrete Trusted Platform Module (dTPM) 2.0 on-chip encryption protects your passwords and data. BIOS-based Smart USB prevents unauthorized access, while the physical lock features can secure your PC from theft. Eco-friendly & user-friendly The M70s Gen 3 has multiple environmental certificates, including ENERGY STAR® 8.0, EPEAT™ Gold, RoHS, and more. In addition, TÜV Low Noise certification means this PC is both eco- and user-friendly. Monitor, keyboard, and mouse sold separately. Specifications may vary depending upon region / model.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Processor cache	25 MB
Processor model	i7-12700
Processor manufacturer	Intel
Processor boost frequency	4.9 GHz
Processor cores	12
Processor family	Intel® Core™ i7
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD interface	NVMe, PCI Express 4.0
SSD capacity	256 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	256 GB
SSD form factor	M.2
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI version	2.1
USB 2.0 ports quantity	4
Microphone in	Yes
Line-out	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DisplayPort version	1.4
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Sustainability certificates	RoHS, TCO
Design
Volume	8.2 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Audio chip	Realtek ALC897Q-CG
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	260 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	MIL-STD-810H, ErP Lot 3
Sustainability
Sustainability certificates	RoHS, TCO
Weight & dimensions
Volume	8.2 L
Width	3.66" (93 mm)
Depth	11.7" (298 mm)
Height	13.4" (340 mm)
Weight	11.7 lbs (5.3 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
