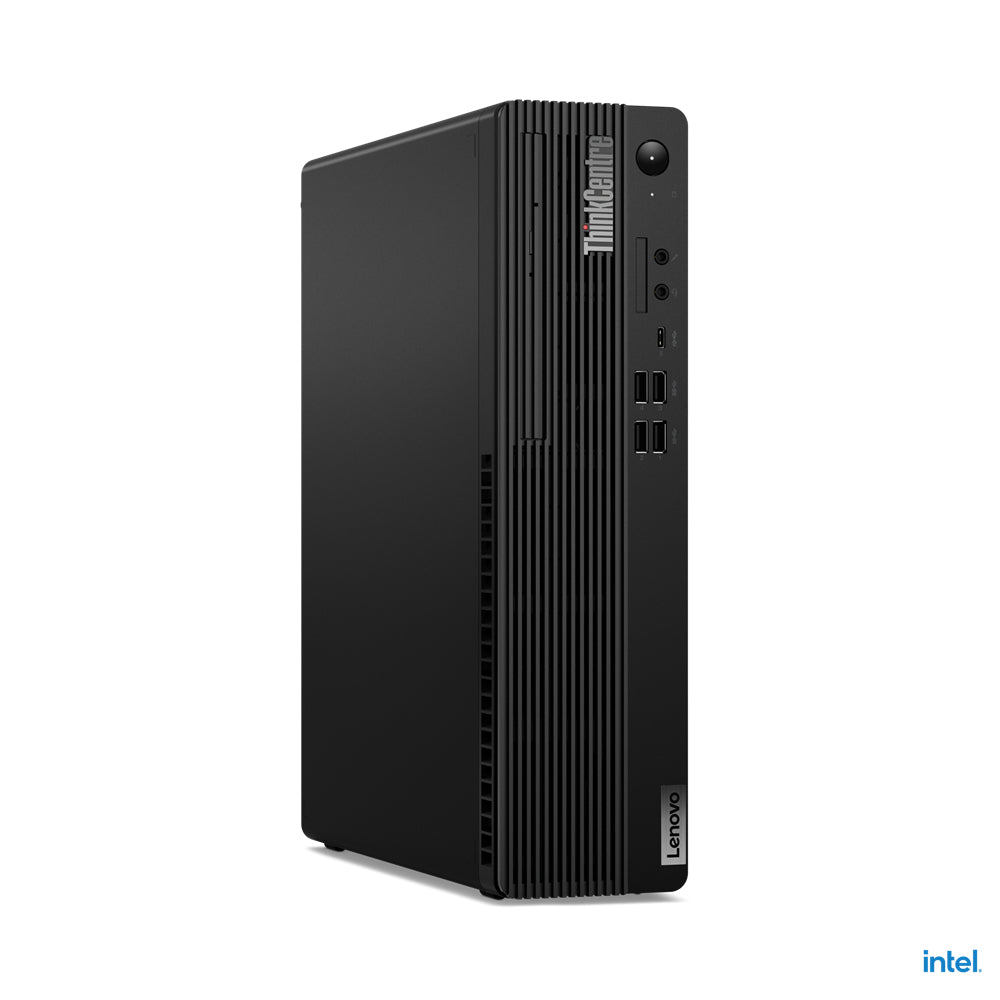

11TG001XUS - Lenovo TC M80S G3,W10P,I7,16GB,1TB,3YR

This small form factor is a workhorse full of powerful features and fits seamlessly into evolving workplaces. Powered by the latest 12th Gen Intel Core Processors and up to 128 GB ultra-responsive DDR5 memory, it makes working on multiple applications and compute-intensive tasks faster and smoother. Edit photos or videos, render 3D animations, or simply play games with excellent visuals, thanks to its onboard highperformance graphics like Intel UHD 770 and discrete Intel Iris and AMD Radeon graphics.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i9
Bus type	DMI4
Processor cache	30 MB
Processor model	i9-12900
Processor manufacturer	Intel
Processor boost frequency	5.1 GHz
Processor cores	16
Processor family	Intel® Core™ i9
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4400 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	DVD±RW
SSD interface	NVMe, PCI Express 4.0
SSD capacity	256 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	256 GB
SSD form factor	M.2
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	1000,100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Microphone in	Yes
Line-out	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DisplayPort version	1.4
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Sustainability certificates	RoHS, TCO
Design
Volume	8.2 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Number of speakers	1
Password protection	Yes
Password protection type	Power on, Supervisor, HDD
Product type	PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q670
Software
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	260 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	ErP Lot 3, MIL-STD-810H
Sustainability
Sustainability certificates	RoHS, TCO
Weight & dimensions
Volume	8.2 L
Package width	7.68" (195 mm)
Package depth	15.6" (395 mm)
Package height	20.9" (530 mm)
Width	3.64" (92.5 mm)
Depth	11.7" (297.7 mm)
Height	13.4" (339.5 mm)
Package weight	16.8 lbs (7.6 kg)
Weight	11.7 lbs (5.3 kg)
Packaging data
Package width	7.68" (195 mm)
Package depth	15.6" (395 mm)
Package height	20.9" (530 mm)
Package weight	16.8 lbs (7.6 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
