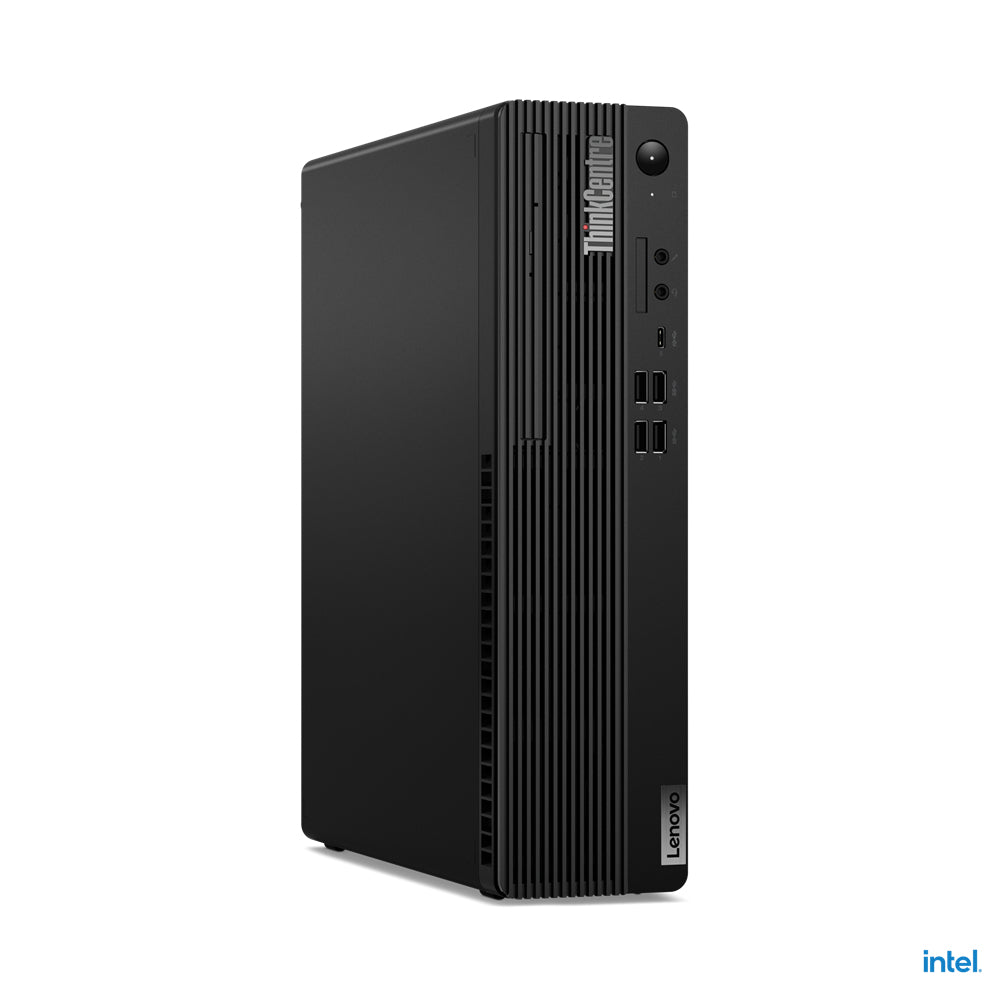

11TG0023US - Lenovo TC M80S G3,W10P,I7,16GB,1TB,3YR

Multitask with confidence The ThinkCentre M80s handles it all, with up to Intel vPro® Enterprise or Essentials with 12th Generation Intel® Core™ i9 processors and time-saving features like Smart Power On and a front-panel USB-C port. Connect up to four displays and multiple compatible devices to configure your workspace. Security inside and out Get end-to-end security with Lenovo’s comprehensive ThinkShield solution, featuring dTPM 2.0 and Smart USB protection. The Intel vPro® platform combines the best of Intel innovations, so you can accelerate business productivity, better safeguard data and assets, and ensure long-term stability. A breeze to manage IT professionals will appreciate how easy it is to deploy and manage the M80s Gen 3 from both a software and hardware POV. Lenovo offers a variety of preinstalled OS options for your customization needs, and maintenance and expansion are hassle-free with quick access to the DIMM, HDD, SDD, and ODD. Expands with your business With ample I/O ports and added expansion slots, the ThinkCentre M80s Gen 3 grows along with your business. Add graphics cards to support industry-specific imaging equipment, connect to legacy peripherals, and configure things your way to discover countless productive possibilities. Specifications may vary depending upon region / model.



Specification:



Processor
Bus type	DMI4
Processor cache	18 MB
Processor frequency	3 GHz
Processor model	i5-12500
Processor manufacturer	Intel
Processor boost frequency	4.6 GHz
Processor cores	6
Processor family	Intel® Core™ i5
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4400 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD interface	NVMe, PCI Express 4.0
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1000 GB
SSD form factor	M.2
Total SSDs capacity	1000 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Microphone in	Yes
Line-out	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DisplayPort version	1.4
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	SFF
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Sustainability certificates	RoHS, TCO
Design
Volume	8.2 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Number of speakers	1
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	260 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	ErP Lot 3, MIL-STD-810H
Sustainability
Sustainability certificates	RoHS, TCO
Weight & dimensions
Volume	8.2 L
Package width	7.68" (195 mm)
Package depth	15.6" (395 mm)
Package height	20.9" (530 mm)
Width	3.64" (92.5 mm)
Depth	11.7" (297.7 mm)
Height	13.4" (339.5 mm)
Package weight	16.8 lbs (7.6 kg)
Weight	11.7 lbs (5.3 kg)
Packaging data
Package width	7.68" (195 mm)
Package depth	15.6" (395 mm)
Package height	20.9" (530 mm)
Package weight	16.8 lbs (7.6 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
