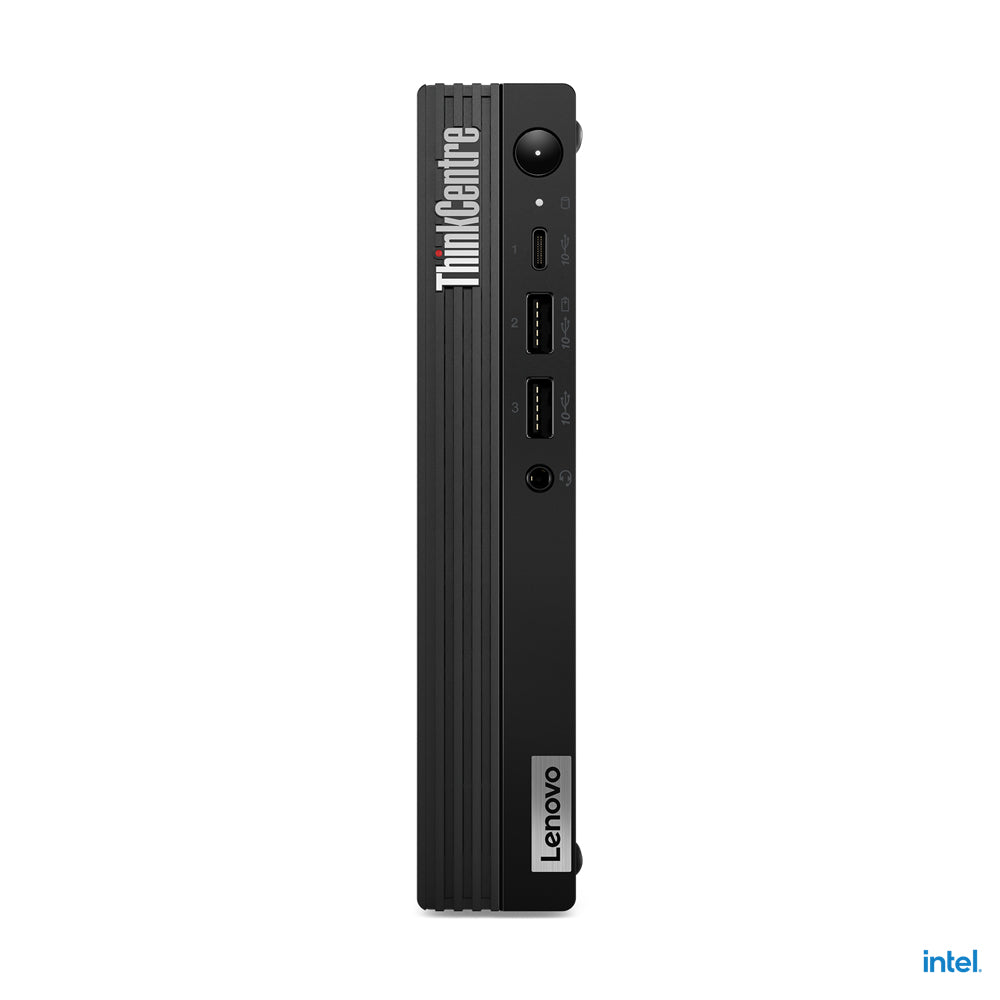

11U10018US - Lenovo THINKCENTRE M80Q GEN3 I7-12700T

Big-time productivity This tiny desktop boasts big-time processing power with up to Intel vPro® Enterprise or Essentials with 12th Generation Intel® Core™ i9 processors. A multitude of ports means customizing the ThinkCentre M80q Gen 3 for specific workflows, is a snap. Add up to four displays for even more functionality. Easy to manage The ThinkCentre M80q Gen 3 is easy to deploy, upgrade, and manage thanks to features like self-healing BIOS and toolless access to the SSD and memory module. With enhanced I/O ports, including the customizable connectivity of Flex IO, go ahead and connect all the peripherals you need. Built tough. Built green. Lenovo’s dedication to quality means the M80q Gen 3 tiny desktop shrugs off spills, dust, and more. It’s MIL-STD certified against multiple real-world benchmarks for toughness and durability. Like all ThinkCentre devices, it’s built with closed-loop post-consumer recycled plastic and is ENERGY STAR® 8 certified. Superb security Innovate fearlessly with the end-to-end security of ThinkShield, which combines industry-leading hardware, software, services, and processes to protect ideas and business. The Intel vPro® platform brings below-the-OS protection to better safeguard data and assets and maintain long-term stability. Specifications may vary depending upon region / model.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Processor cache	25 MB
Processor model	i7-12700T
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
Processor cores	12
Processor family	Intel® Core™ i7
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD interface	NVMe, PCI Express 4.0
SSD capacity	256 GB
Number of SSDs installed	1
Total storage capacity	256 GB
SSD form factor	M.2
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Sustainability certificates	RoHS, TCO, ENERGY STAR, EPEAT Gold
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Audio chip	Realtek ALC256-VB
Number of speakers	1
Password protection	Yes
Password protection type	Power on, Supervisor, HDD
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	135 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	MIL-STD-810H, ErP Lot 3
Sustainability
Sustainability certificates	RoHS, TCO, ENERGY STAR, EPEAT Gold
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.44" (36.5 mm)
Package weight	6.28 lbs (2.85 kg)
Weight	2.76 lbs (1.25 kg)
Packaging data
Package weight	6.28 lbs (2.85 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
