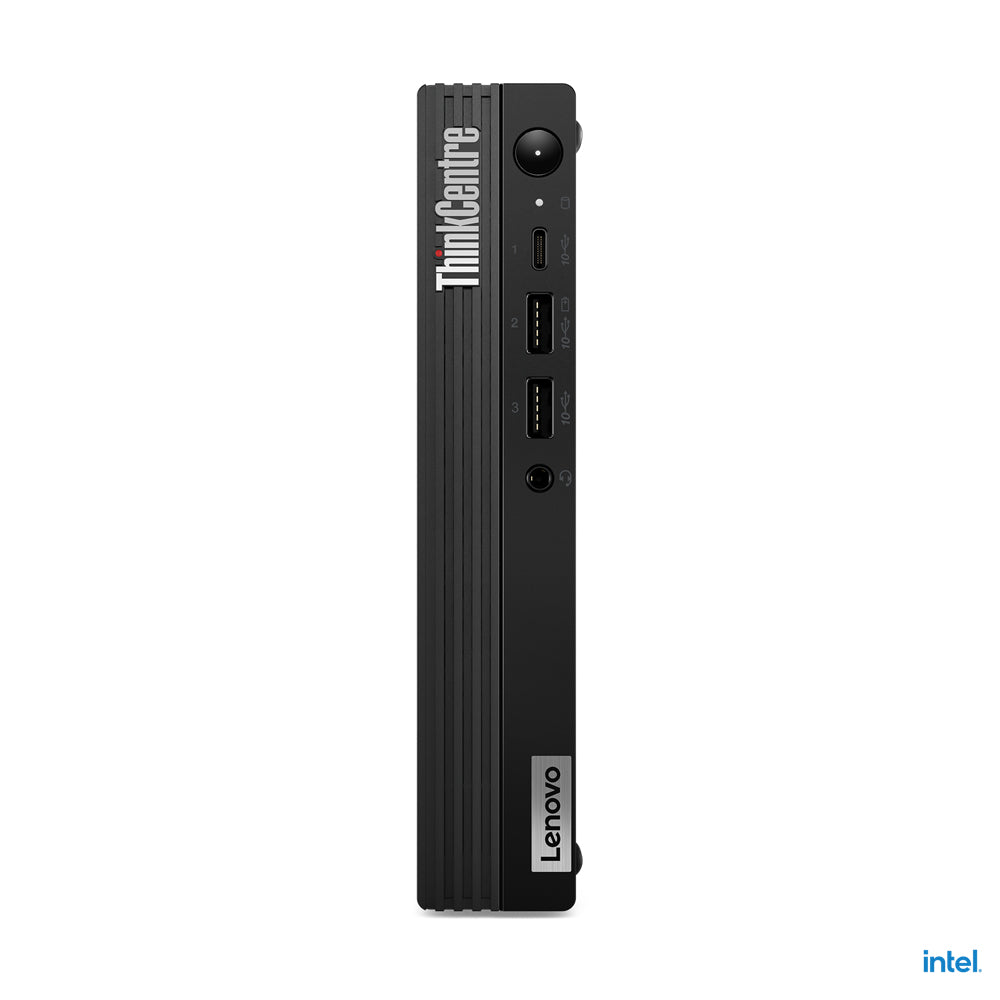

11U5000TUS - Lenovo TC M90Q G3,W11P,I5,8GB,128GB,3YR

Made for manageability The ThinkCentre M90q Gen 3 tiny desktop is easy to deploy, upgrade, and manage thanks to features like built-in driver support for older OS versions, a PCIe add-on slot, and an X4 Ethernet add-on card. Toolless access to the SSD and memory module make expansion and maintenance fast and efficient. Designed for customization Configure it your way, because the M90q Gen 3 desktop PC is designed to be customized for optimum workflows. This tiny premium powerhouse easily connects with industry-specific equipment and legacy peripherals, through an abundance of enhanced IO ports. Smarter features. Smoother workdays. It’s the small things that help you get the most out of the workday. M90q Gen 3 is loaded with practical features like Smart Power On, which allows you to turn on the desktop with a simple keyboard shortcut. Additionally, multiple mounting options allow this tiny desktop to fit—or hide—almost anywhere. Complete security ThinkShield is the most comprehensive, end-to-end security solution on the market; combining industry leading hardware, software, services, and processes to protect your data. Built on the Intel vPro® Enterprise platform, it features hardware-based, below-the-OS advanced threat detection. Specifications may vary depending upon region / model.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i5
Bus type	DMI4
Processor cache	18 MB
Processor frequency	3 GHz
Processor model	i5-12500
Processor manufacturer	Intel
Processor boost frequency	4.6 GHz
Processor cores	6
Processor family	Intel® Core™ i5
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	NVMe, PCI Express
SSD capacity	128 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	128 GB
SSD form factor	M.2
Total SSDs capacity	128 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Viewing window	No
Performance
Embedded options available	No
Audio chip	Realtek ALC256-VB
Number of speakers	1
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor, HDD
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply	135 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	EPEAT Gold ENERGY STAR 8.0 ErP Lot 3 TCO Certified 9.0 RoHS compliant MIL-STD-810H TÃœV
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.44" (36.5 mm)
Weight	2.76 lbs (1.25 kg)
Packaging content
Mouse included	Yes
Keyboard included	Yes
Other features
Number of speakers	1
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
Built-in speaker(s)	Yes
