Description

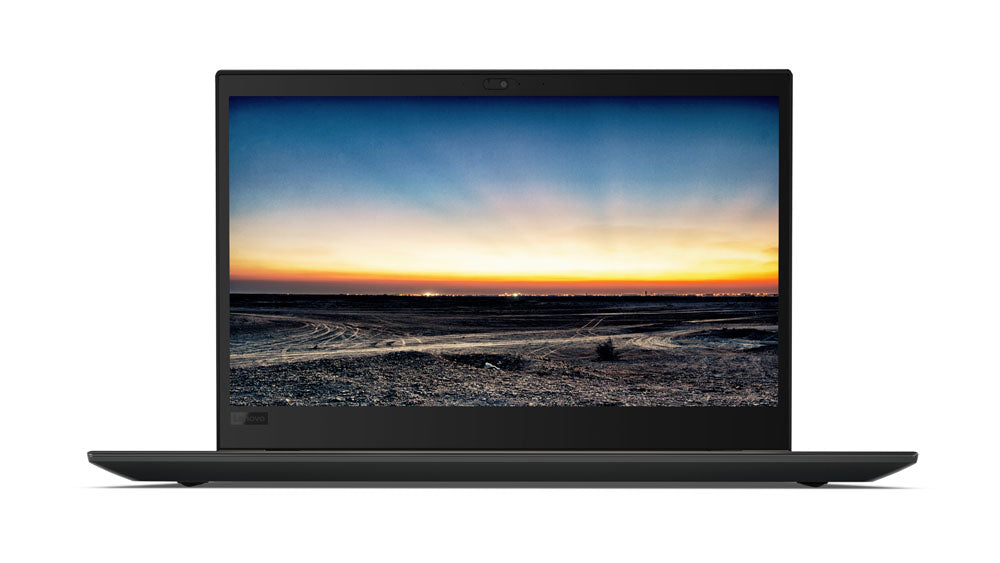

Designed to maximize every minute. Produce to your true potential with the powerful ThinkPad T580. Its vivid 15-in display lets you see everything and still be agile. Productivity-rich features include a 27-hour battery life, plenty of ports, and convenient side docking. What's more, with enhanced security built in, you have peace of mind wherever your work takes you. An IT manager’s dream The ThinkPad T580 has a match-on-chip fingerprint reader, anti-spoofing technology that authenticates log-in credentials and helps safeguards your data, and ThinkShutter, a webcam cover that you can open and close. To help save you time and effort in setting up and deploying each ThinkPad T580, there's Microsoft® AutoPilot. This cloud-based solution lets you preconfigure every laptop so that they are ready to use right out of the box. Raises performance levels—and eyebrows With the new 8th generation Intel® Core™ i7 processor, the ThinkPad T580 can take you to new heights of productivity. Backed by the increased efficiency and speed of DDR4 memory (up to 32 GB), the T580 gives you the power of a desktop PC--a 15.6-in and full number pad--with the freedom of a portable laptop. Where form meets function... Our customers told us that mechanical docking is important on their ThinkPads. The latest T-Series business laptop offers the same mechanical docking experience you prefer with a new USB-C side docking connector. It also has a range of convenient ports, including the lightning-quick Intel® Thunderbolt™ 3 port and full-sized RJ45 Ethernet connector. In addition, should you need to work in low-light conditions, the renowned ThinkPad keyboard has a backlit option. Innovation meets intuition Thanks to Windows Hello and the optional built-in infrared camera, you can access your files and data with just a smile. As well as facial recognition, the ThinkPad T580 features Glance technology by Mirametrix®, which merges face-, eye-, and gaze-tracking. So when the ThinkPad T580 is hooked up to an external monitor, you can have a more intuitive, productive interaction by automatically focusing the cursor and shifting windows—simply by moving your eyes. Power up without powering down Each ThinkPad T580 comes with built-in Power Bridge technology. This innovation is the answer to 'low battery' warnings, especially if you are on the road or without a power outlet nearby. It allows you to swap out a battery and simply replace it with a fully charged one—without having to turn off your machine. So you can keep your ThinkPad T580 going for up to 27 hours* between charges. Get closer to the action By configuring your ThinkPad T580 with an optional touchscreen, you can interact more intuitively and easily with your work—and have more fun during your downtime. Stronger online security, made easy Signing into websites or making online payments usually involves trying to remember all kinds of passwords. Not so with FIDO—Fast Identity Online—authentication capabilities that are built into the latest generation of ThinkPad laptops. By wrapping your user info and credentials into three secure layers, FIDO makes it safer and easier when you are online. This global solution also creates better security of web-based services and reduces cost for organizations. A win-win for everyone. One less thing to worry about For extra peace of mind, each ThinkPad T580 comes with a standard one-year worldwide warranty. This enables you to seek expert assistance and help in 160 countries across the globe.
Specification:
| Design | |
|---|---|
| Product type | Notebook |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | Full HD |
| Panel type | IPS |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 15.6" |
| Native aspect ratio | 16:9 |
| Processor | |
| Stepping | Y0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
| Maximum number of PCI Express lanes | 12 |
| Configurable TDP-down | 10 W |
| ECC supported by processor | No |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 6 MB |
| Processor frequency | 1.7 GHz |
| Processor model | i5-8350U |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1356 |
| Processor manufacturer | Intel |
| Processor family | 8th gen Intel® Core™ i5 |
| Configurable TDP-up frequency | 1.9 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 4 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Storage | |
| Optical drive type | No |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| Total storage capacity | 516 GB |
| Graphics | |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| On-board graphics adapter base frequency | 300 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x5917 |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel® UHD Graphics 620 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Camera | |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 42 x 24 mm |
| Processor code | SR3L9 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 124969 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3+4 |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 14.4" (365.8 mm) |
| Depth | 9.95" (252.8 mm) |
| Height | 0.886" (22.5 mm) |
| Height (front) | 0.787" (2 cm) |
| Height (rear) | 0.795" (2.02 cm) |
| Weight | 4.34 lbs (1.97 kg) |
| Other features | |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter | Yes |
