Description

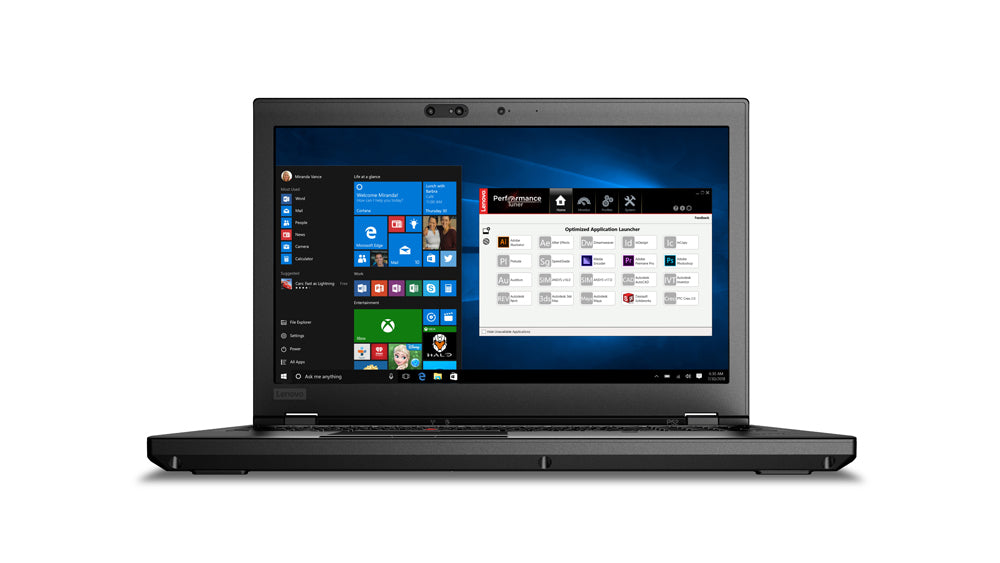

An IT admin's dream This workstation delivers powerful performance with both Intel® Xeon® and Core i™ processing and NVIDIA® Quadro® graphics. And now it’s even capable of rendering VR. Primed for security, the ThinkPad P52 encrypts data with TPM, provides a match-on-chip fingerprint reader, and enables facial login with the combined use of the optional IR camera and Windows Hello. There’s even an integrated privacy cover* for the webcam to ensure that it’s only used deliberately. What’s more, with the option of 4G-LTE from the factory, out of range WiFi is never an issue for ongoing connectivity. Ready. Set. Render. With the new Intel® Xeon® or Core™ i 6 core CPU, the ThinkPad P52 delivers pure power. With the option of the NVIDIA® Quadro® P3200 GPU, the ThinkPad P52 is our first 15.6†mobile workstation capable of rendering VR. Weighing in at well under five and a half pounds, this device is primed for work on the go. Choose up to 128 GB of DDR4 memory and up to 4TB of PCIe storage, which enables larger datasets. Additionally, the ThinkPad P52 includes ISV certification from all the major vendors like Autodesk®, AVID®, Bentley®, Dassault®, PTC®, and Siemens®. Stay connected Move data between the ThinkPad P52 and your other devices quickly with USB-C Thunderbolt™ 3 technology —simultaneously supporting high-resolution displays and high-performance data devices. For true mobility, add the option of WWAN connectivity. By subscribing to a third-party cellular service company, you can access LTE-A networks and connect to the internet wherever you go. Be dazzled! The ThinkPad P52 offers the option of a stunning 15.6-inch 4k UHD (3840 x 2160) touchscreen display. Colors are super-vibrant with 100% Adobe color gamut and 400 nit. Whether you're creating multimedia or simply enjoying it, you’ll definitely appreciate the upgraded visuals! This workstation also offers an FHD option (1920 x 1080) with 300 nit. Amazing audio For times you need to plug in your earbuds on the ThinkPad P52, enter a whole new world of sound. Dolby Atmos® creates an amazing headphone experience with breathtaking, moving audio that flows above and around you. Enjoy your listening experience, whether playing music, participating in a remote meeting, or even just catching a video.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Housing material | Aluminum, Magnesium |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 15.6" |
| Native aspect ratio | 16:9 |
| Processor | |
| Stepping | U0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| ECC supported by processor | Yes |
| Configurable TDP-down frequency | 2.2 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 2.7 GHz |
| Processor model | E-2176M |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel® CM246 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Memory | |
| ECC | Yes |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,SD,SDHC,SDXC |
| Total storage capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 4 GB |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x3E9B |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel UHD Graphics P630 |
| Discrete graphics adapter model | NVIDIA® Quadro® P2000 |
| Audio | |
| Audio chip | Realtek ALC3286 |
| Number of microphones | 2 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Mini DisplayPorts quantity | 1 |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro for Workstations |
| Technical details | |
| Power cord included | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Housing material | Aluminum, Magnesium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics adapter memory | 4 GB |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 42 x 28 mm |
| Processor code | SR3YX |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 134867 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery capacity (Watt-hours) | 90 Wh |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Weight & dimensions | |
| Width | 14.9" (377.4 mm) |
| Depth | 9.93" (252.3 mm) |
| Height (front) | 1.02" (2.58 cm) |
| Height (rear) | 1.21" (3.07 cm) |
| Weight | 6.39 lbs (2.9 kg) |
| Packaging data | |
| Power cord included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Power cord included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter | Yes |
| Audio system | Dolby Audio Premium |
| AC adapter included | Yes |
