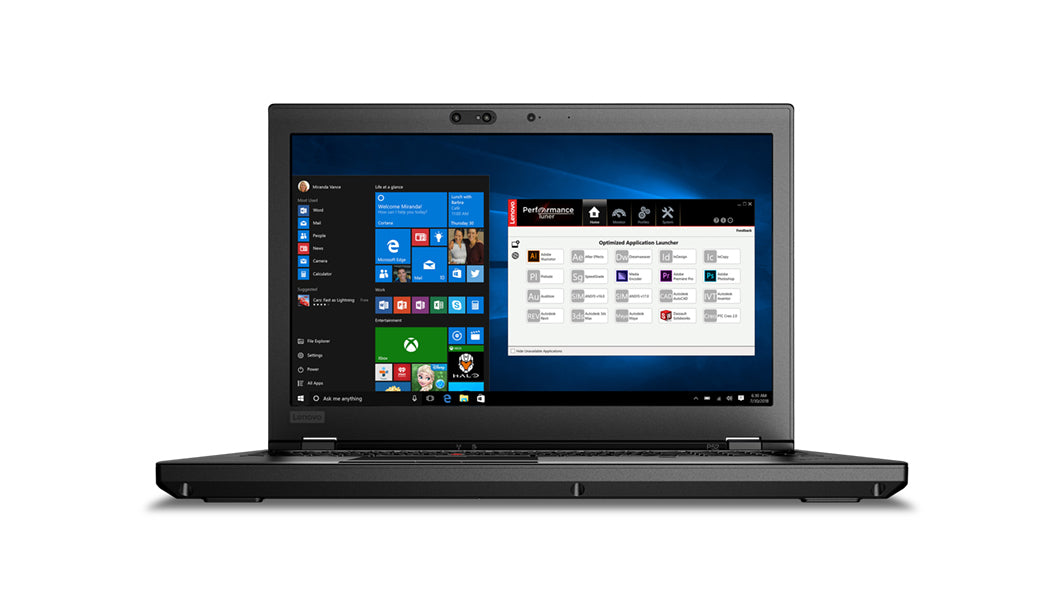

20M9000MUS - Lenovo P52,W10P,I7,8GB,1TB,3YR

An IT admin's dream This workstation delivers powerful performance with both Intel® Xeon® and Core i™ processing and NVIDIA® Quadro® graphics. And now it’s even capable of rendering VR. Primed for security, the ThinkPad P52 encrypts data with TPM, provides a match-on-chip fingerprint reader, and enables facial login with the combined use of the optional IR camera and Windows Hello. There’s even an integrated privacy cover* for the webcam to ensure that it’s only used deliberately. What’s more, with the option of 4G-LTE from the factory, out of range WiFi is never an issue for ongoing connectivity. Ready. Set. Render. With the new Intel® Xeon® or Core™ i 6 core CPU, the ThinkPad P52 delivers pure power. With the option of the NVIDIA® Quadro® P3200 GPU, the ThinkPad P52 is our first 15.6” mobile workstation capable of rendering VR. Weighing in at well under five and a half pounds, this device is primed for work on the go. Choose up to 128 GB of DDR4 memory and up to 4TB of PCIe storage, which enables larger datasets. Additionally, the ThinkPad P52 includes ISV certification from all the major vendors like Autodesk®, AVID®, Bentley®, Dassault®, PTC®, and Siemens®. Stay connected Move data between the ThinkPad P52 and your other devices quickly with USB-C Thunderbolt™ 3 technology —simultaneously supporting high-resolution displays and high-performance data devices. For true mobility, add the option of WWAN connectivity. By subscribing to a third-party cellular service company, you can access LTE-A networks and connect to the internet wherever you go. Be dazzled! The ThinkPad P52 offers the option of a stunning 15.6-inch 4k UHD (3840 x 2160) touchscreen display. Colors are super-vibrant with 100% Adobe color gamut and 400 nit. Whether you're creating multimedia or simply enjoying it, you’ll definitely appreciate the upgraded visuals! This workstation also offers an FHD option (1920 x 1080) with 300 nit. Amazing audio For times you need to plug in your earbuds on the ThinkPad P52, enter a whole new world of sound. Dolby Atmos® creates an amazing headphone experience with breathtaking, moving audio that flows above and around you. Enjoy your listening experience, whether playing music, participating in a remote meeting, or even just catching a video.



Specification:



Design
Product type	Mobile workstation
Housing material	Aluminum, Magnesium
Form factor	Clamshell
Product colour	Black
Display
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
ECC supported by processor	No
Configurable TDP-down frequency	1.7 GHz
Processor cache type	Smart Cache
Processor cache	9 MB
Processor frequency	2.2 GHz
Processor model	i7-8750H
Processor boost frequency	4.1 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	64 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	M.2
Card reader integrated	Yes
Compatible memory cards	MMC,SD,SDHC,SDXC
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	4 GB
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E9B
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 630
Discrete graphics adapter model	NVIDIA® Quadro® P1000
Audio
Audio chip	Realtek ALC3286
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	No
Combo headphone/mic port	Yes
Mini DisplayPorts quantity	1
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Aluminum, Magnesium
Form factor	Clamshell
Product colour	Black
Discrete graphics adapter memory	4 GB
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	42 x 28 mm
Processor code	SR3YY
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Processor ARK ID	134906
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity (Watt-hours)	90 Wh
Power
AC adapter power	170 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	14.9" (377.4 mm)
Depth	9.93" (252.3 mm)
Height (front)	1.02" (2.58 cm)
Height (rear)	1.21" (3.07 cm)
Weight	6.39 lbs (2.9 kg)
Packaging data
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1100 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
AC adapter included	Yes
