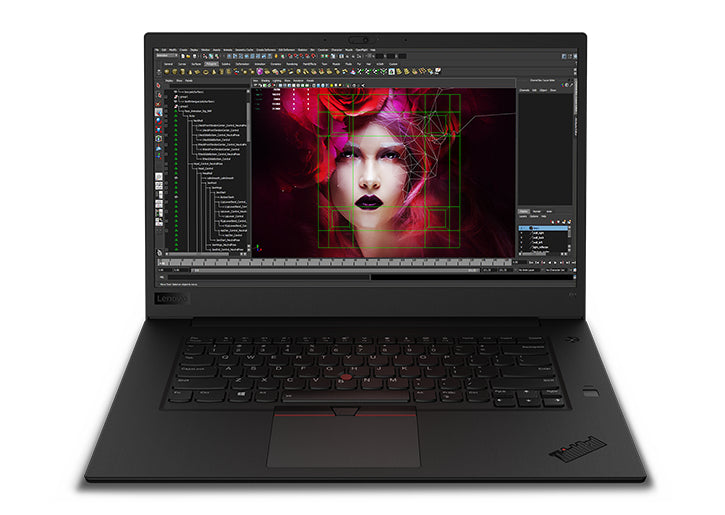

20MD002LUS - Lenovo THINKPAD P1, INTEL XEON E-2176M (2.70GHZ

Raw power Count on the ThinkPad P1 workstation for mission-critical reliability and powerful performance, with the added freedom of mobility that only our thinnest and lightest workstation can provide. The latest Intel® Xeon® and Core™ processing, graphics up to NVIDIA® Quadro® P2000, and signature black carbon fiber finish make this ultra-portable workstation a must-have powerhouse for today’s most agile businesses. ISV Certified The ThinkPad P1 has been tested and proven to seamlessly render data-intensive applications. Don’t just take our word for it: the P1 boasts dozens of the major independent software vendor (ISV) certifications. Workstation power has never looked so good Encased by a carbon fiber and magnesium alloy exterior in Think's signature black style, the ThinkPad P1 boasts a visual impact that's as strong as the power within. At a mere 18.4 mm / .72" thin, no one will mistake this machine for anything less than ultra-premium. Girded for the toughest ordeals We inflict some of the most stringent product testing in the industry on ThinkPads, so you get the perfect blend of power and durability expect from any Think model. The ThinkPad P1 has endured 12 military-grade testing requirements and passed more than 200 quality checks to ensure it performs in extreme conditions. From the arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this mobile workstation to handle whatever life throws your way. Thin in size, thick with features It’s not just power the ThinkPad P1 packs into its slim, ultrathin chassis. Its robust connectivity features – including multiple Thunderbolt™ ports, as well as more traditional connectors like USB 3.0 and HDMI – put other mobile workstations to shame. We even shrunk the power supply by more than a third! Immersive display and visuals The ThinkPad P1 offers the option of a stunning 15.6-inch 4k UHD (3840 x 2160) touchscreen display for the finest optics. Colors are super-vibrant with 100% Adobe color gamut and 400 nit. The ThinkPad P1 workstation is also available in a full HD, 300 nit display option (1920 x 1080). Whether you're creating graphic-intensive multimedia or simply enjoying it, you’ll definitely appreciate the upgraded visuals! Amazing audio For times when you need to plug in your earbuds, Dolby Atmos® transports you to a whole new world of sound. With Dolby Atmos®, the ThinkPad P1 creates an amazing headphone experience for breathtaking, moving audio that flows above and around you. Enjoy your listening experience whether jamming out to your favorite song, hashing out project details on a conference call, or catching the latest video on your feed.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	15.6"
Processor
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Configurable TDP-down frequency	2.2 GHz
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	2.7 GHz
Processor model	E-2176M
Processor boost frequency	4.4 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Maximum internal memory (64-bit)	64 GB
Storage
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD,SDHC,SDXC
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E9B
On-board graphics adapter	Yes
On-board graphics adapter model	Intel UHD Graphics P630
Discrete graphics adapter model	NVIDIA® Quadro® P2000
Audio
Audio chip	Realtek ALC3286
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	1
Combo headphone/mic port	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Keyboard backlit	Yes
Software
Operating system installed	Windows 10 Pro for Workstations
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	42 x 28 mm
Processor code	SR3YX
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Processor ARK ID	134867
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	80 Wh
Quick charge	Yes
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Cable lock slot	Yes
Weight & dimensions
Width	14.2" (361.8 mm)
Depth	9.67" (245.7 mm)
Weight	3.75 lbs (1.7 kg)
Packaging data
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1200 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
Maximum internal memory (64-bit)	64 GB
AC adapter included	Yes
