Description

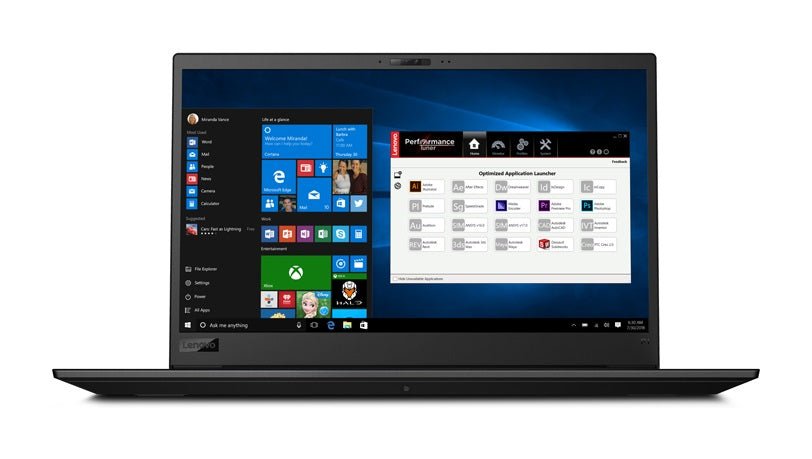

Raw power Count on the ThinkPad P1 workstation for mission-critical reliability and powerful performance, with the added freedom of mobility that only our thinnest and lightest workstation can provide. The latest Intel® Xeon® and Core™ processing, graphics up to NVIDIA® Quadro® P2000, and signature black carbon fiber finish make this ultra-portable workstation a must-have powerhouse for today’s most agile businesses. ISV Certified The ThinkPad P1 has been tested and proven to seamlessly render data-intensive applications. Don’t just take our word for it: the P1 boasts dozens of the major independent software vendor (ISV) certifications. Workstation power has never looked so good Encased by a carbon fiber and magnesium alloy exterior in Think's signature black style, the ThinkPad P1 boasts a visual impact that's as strong as the power within. At a mere 18.4 mm / .72" thin, no one will mistake this machine for anything less than ultra-premium. Girded for the toughest ordeals We inflict some of the most stringent product testing in the industry on ThinkPads, so you get the perfect blend of power and durability expect from any Think model. The ThinkPad P1 has endured 12 military-grade testing requirements and passed more than 200 quality checks to ensure it performs in extreme conditions. From the arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this mobile workstation to handle whatever life throws your way. Shot of ThinkPad P1 open 180 degrees next to two ThinkPads with close-up of logo Thin in size, thick with features It’s not just power the ThinkPad P1 packs into its slim, ultrathin chassis. Its robust connectivity features – including multiple Thunderbolt™ ports, as well as more traditional connectors like USB 3.0 and HDMI – put other mobile workstations to shame. We even shrunk the power supply by more than a third! Immersive display and visuals The ThinkPad P1 offers the option of a stunning 15.6-inch 4k UHD (3840 x 2160) touchscreen display for the finest optics. Colors are super-vibrant with 100% Adobe color gamut and 400 nit. The ThinkPad P1 workstation is also available in a full HD, 300 nit display option (1920 x 1080). Whether you're creating graphic-intensive multimedia or simply enjoying it, you’ll definitely appreciate the upgraded visuals! Amazing audio For times when you need to plug in your earbuds, Dolby Atmos® transports you to a whole new world of sound. With Dolby Atmos®, the ThinkPad P1 creates an amazing headphone experience for breathtaking, moving audio that flows above and around you. Enjoy your listening experience whether jamming out to your favorite song, hashing out project details on a conference call, or catching the latest video on your feed.
Specification:
Design | |
---|---|
Product type | Mobile workstation |
Housing material | Aluminum |
Form factor | Clamshell |
Product colour | Black |
Display | |
Dual-screen | No |
HD type | 4K Ultra HD |
Panel type | IPS |
LED backlight | Yes |
3D | No |
Display brightness | 400 cd/m² |
Touchscreen | Yes |
Touch technology | Multi-touch |
Touchscreen type | Capacitive |
Display resolution | 3840 x 2160 pixels |
Display diagonal | 15.6" |
Native aspect ratio | 16:9 |
Processor | |
Processor generation | 8th gen Intel® Core™ i5 |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Coffee Lake |
Bus type | DMI3 |
Tjunction | 100 °C |
Thermal Design Power (TDP) | 65 W |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
Maximum number of PCI Express lanes | 16 |
Processor cache type | Smart Cache |
Conflict-Free processor | Yes |
Processor cache | 9 MB |
Processor frequency | 2.8 GHz |
Processor model | i5-8400 |
Processor boost frequency | 4 GHz |
Processor cores | 6 |
Processor threads | 6 |
System bus rate | 8 GT/s |
Processor socket | LGA 1151 (Socket H4) |
Processor manufacturer | Intel |
Processor family | Intel® Core™ i5 |
Memory | |
ECC | No |
Memory form factor | SO-DIMM |
Internal memory | 16 GB |
Memory layout (slots x size) | 1 x 16 GB |
Internal memory type | DDR4-SDRAM |
Memory clock speed | 2666 MHz |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 64 GB |
Memory upgrade note | Additional memory sold separately |
Storage | |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 512 GB |
Card reader integrated | Yes |
Compatible memory cards | SD, SDHC, SDXC |
Total storage capacity | 512 GB |
Total SSDs capacity | 512 GB |
Graphics | |
Discrete graphics card | Yes |
Discrete graphics card memory | 4 GB |
On-board graphics card dynamic frequency (max) | 1050 MHz |
On-board graphics card base frequency | 350 MHz |
Maximum on-board graphics card memory | 64 GB |
On-board graphics card OpenGL version | 4.5 |
On-board graphics card DirectX version | 12.0 |
Number of execution units | 23 |
On-board graphics card ID | 0x3E92 |
On-board graphics card family | Intel® UHD Graphics |
Number of discrete graphics cards installed | 1 |
On-board graphics card | Yes |
On-board graphics card model | Intel® UHD Graphics 630 |
Discrete graphics card model | NVIDIA® Quadro® P1000 |
Discrete graphics memory type | GDDR5 |
Audio | |
Audio chip | Realtek ALC3286 |
Number of microphones | 2 |
Audio system | Dolby Audio Premium |
Number of built-in speakers | 2 |
Speaker power | 2 W |
Built-in microphone | Yes |
Camera | |
Front camera signal format | 720p |
Front camera | Yes |
Front camera resolution | 1280 x 720 pixels |
Front camera HD type | HD |
Infrared (IR) camera | Yes |
Optical drive | |
Optical drive type | No |
Network | |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Bluetooth | Yes |
Bluetooth version | 5.0 |
WWAN | Not installed |
Antenna type | 2x2 |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
HDMI ports quantity | 1 |
HDMI version | 2.0 |
Headphone outputs | 1 |
Combo headphone/mic port | Yes |
Ethernet extension Gen 2 port | Yes |
Keyboard | |
Pointing device | ThinkPad UltraNav |
Numeric keypad | No |
Windows keys | Yes |
Spill-resistant keyboard | Yes |
Keyboard backlit | Yes |
Software | |
Operating system architecture | 64-bit |
Trial software | McAfee LiveSafe, Microsoft Office 2016 |
Operating system installed | Windows 10 Pro |
Technical details | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Housing material | Aluminum |
Form factor | Clamshell |
Product colour | Black |
Discrete graphics card memory | 4 GB |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
Processor special features | |
Enhanced Intel SpeedStep Technology | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel Clear Video Technology | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® OS Guard | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel TSX-NI | No |
Intel Trusted Execution Technology | No |
Intel Stable Image Platform Program (SIPP) | No |
Intel Software Guard Extensions (Intel SGX) | Yes |
Intel® Secure Key | Yes |
Intel Enhanced Halt State | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Thermal solution specification | PCG 2015C |
Thermal Monitoring Technologies | Yes |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Scalability | 1S |
Processor package size | 37.5 x 37.5 mm |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Embedded options available | No |
CPU configuration (max) | 1 |
Intel Stable Image Platform Program (SIPP) version | 0.00 |
Intel Secure Key Technology version | 1.00 |
Intel Identity Protection Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 0.00 |
Conflict-Free processor | Yes |
Processor ARK ID | 126687 |
Intel® Turbo Boost Technology | 2.0 |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Battery | |
Battery technology | Lithium-Ion (Li-Ion) |
Battery life (max) | 13.87 h |
Battery capacity | 80 Wh |
Fast charging | Yes |
Power | |
AC adapter power | 135 W |
Security | |
Password protection | Yes |
Cable lock slot type | Kensington |
Trusted Platform Module (TPM) | Yes |
Password protection type | HDD, Power on, Supervisor |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Sustainability | |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
Weight & dimensions | |
Width | 14.2" (361.8 mm) |
Depth | 9.67" (245.7 mm) |
Height | 0.724" (18.4 mm) |
Weight | 3.75 lbs (1.7 kg) |
Packaging data | |
AC adapter included | Yes |
Packaging content | |
AC adapter included | Yes |
Other features | |
On-board graphics card dynamic frequency (max) | 1050 MHz |
Maximum on-board graphics card memory | 64 GB |
On-board graphics card | Yes |
Audio system | Dolby Audio Premium |
3D | No |
AC adapter included | Yes |
Memory upgrade note | Additional memory sold separately |
