Description

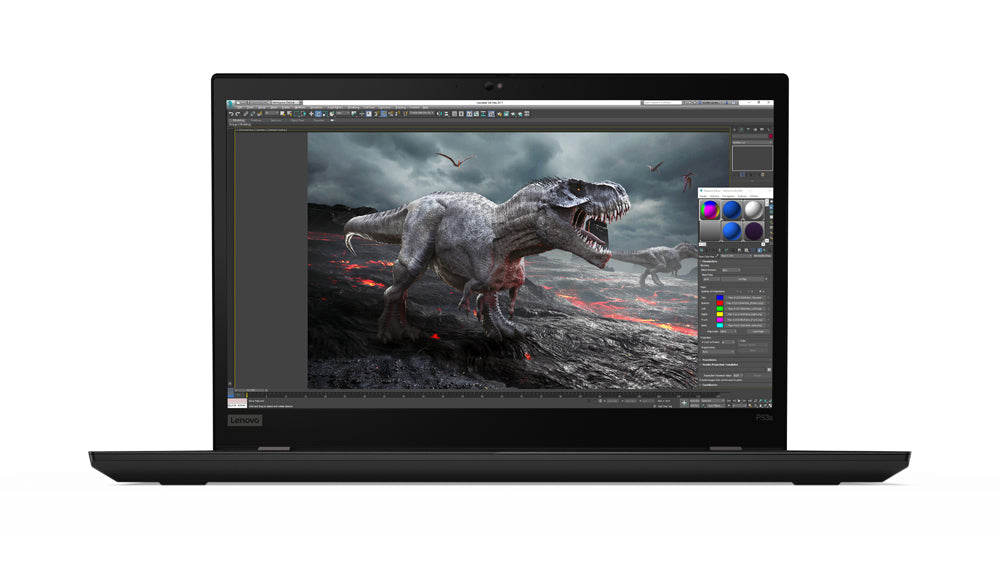

Heavyweight performance, lightweight chassis With the latest 8th Gen Intel® quad-core processor and NVIDIA® Quadro® professional graphics, the ThinkPad P53s delivers the power and performance you need in a lightweight, portable package. Dual solid-state drives (SSD) with up to 2TB storage and up to 48GB of memory ensure no more lag time. Additionally, the ThinkPad P53s includes ISV certification from all the major vendors, like Autodesk®, AVID®, Bentley®, Dassault® Systèmes®, PTC®, and Siemens®. Your true colors are beautiful The ThinkPad P53s offers the option of a stunning 15.6" 4k UHD (3840 x 2160) display, available with Dolby Vision™ high dynamic range (HDR) technology. Enjoy increased brightness, expanded contrast, more refined detail, and colors that are super-vibrant—especially with 100% Adobe color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals! Audio so amazing you’ll think it’s live Speakers on the ThinkPad P53s deliver premium sound with Dolby Audio™, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. Boosted bass and enhanced volume turn it all up for sound that’s loud and clear enough to share. Extremely well-connected With a battery that runs up to 14 hours, the lightweight ThinkPad P53s mobile workstation practically begs to accompany you everywhere.* And for true mobility and connection even when there is no WiFi, add the option of WWAN, which lets you jump online securely wherever there’s cellular service.** * Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. **WWAN must be configured at time of purchase, as it cannot be added later. Tested for battle, built for life Because you need reliability, the ThinkPad P53s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Because getting hacked would be horrible Built-in security features protect your business-critical info. Default discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional embedded fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| Dual-screen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| 3D | No |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 15.6" |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4,2x2 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor frequency | 1.8 GHz |
| Processor model | i7-8565U |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1528 |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor family | 8th gen Intel® Core™ i7 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Memory form factor | On-board + SO-DIMM |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 48 GB |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| On-board graphics adapter base frequency | 300 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x3EA0 |
| On-board graphics adapter family | Intel® UHD Graphics |
| Number of discrete graphics adapters installed | 1 |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel® UHD Graphics |
| Discrete graphics adapter model | NVIDIA Quadro P520 |
| Audio | |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| Charging port type | USB Type-C |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Power cord included | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics adapter memory | 2 GB |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 46x24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Processor ARK ID | 149091 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 10 h |
| Battery capacity (Watt-hours) | 57 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Certificates | |
| Certification | MIL-STD-810G |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Weight & dimensions | |
| Width | 14.4" (365.8 mm) |
| Depth | 9.76" (248 mm) |
| Height | 0.752" (19.1 mm) |
| Weight | 3.86 lbs (1.75 kg) |
| Packaging data | |
| Power cord included | Yes |
| Warranty card | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Power cord included | Yes |
| Warranty card | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| On-board graphics adapter | Yes |
| Audio system | Dolby Audio Premium |
| 3D | No |
| AC adapter included | Yes |
