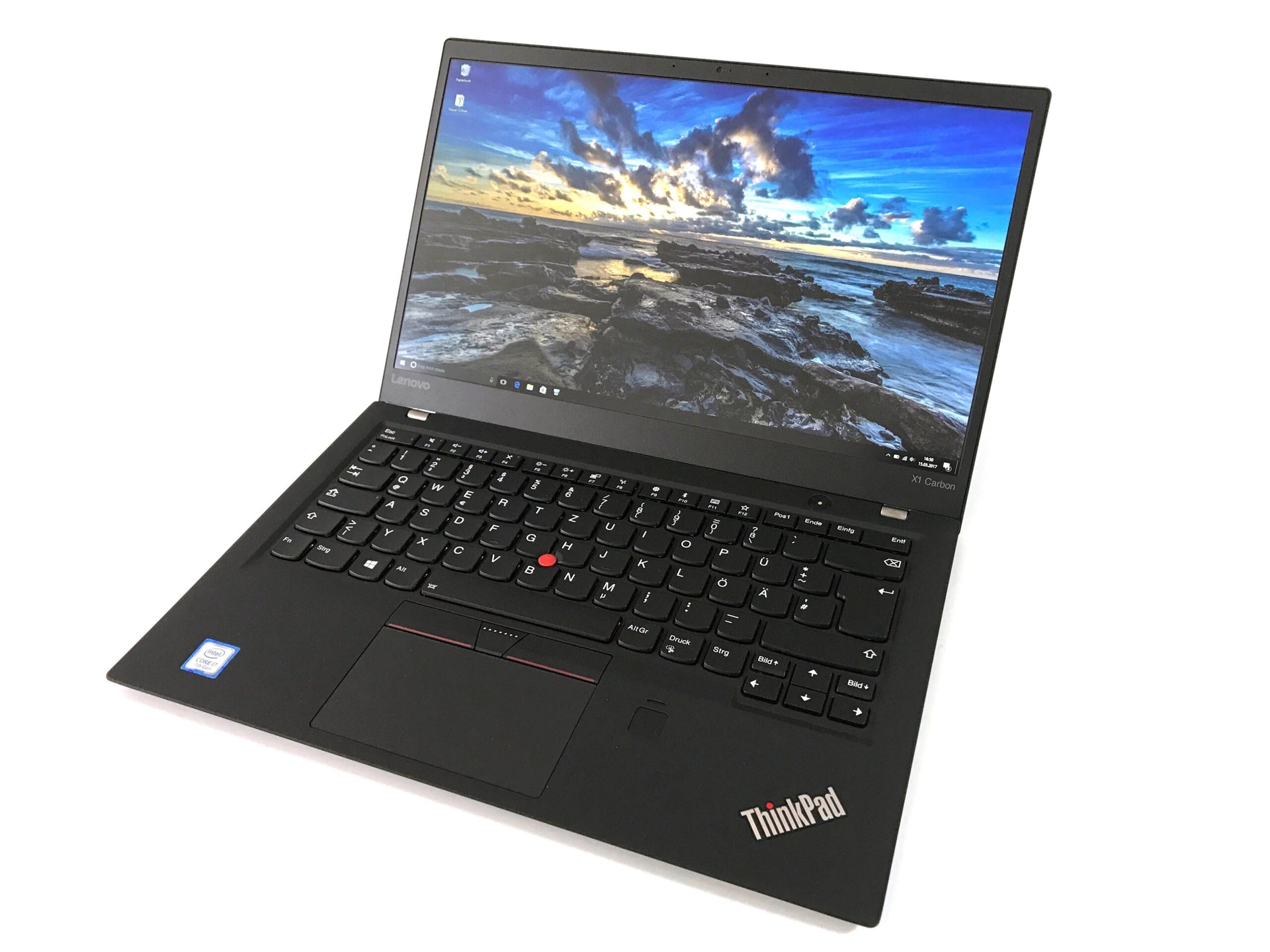

20QD000KUS - Lenovo THINKPAD X1 CARBON 7TH GENERATION, CARBON FIBER WOVEN TOP COVER, INTEL CORE I7-8

Wherever the road takes you At 6% thinner than its predecessor, the ThinkPad X1 Carbon Gen 7 is only 14.9mm thin—or just a hair more than a half inch—and it weighs only 2.4lb/1.08kg. This lightweight package reinvents portability and untethers you from the office. With a battery life of up to 18.3 hours, and Rapid Charge when you do need more juice, you can go wherever the road—or the sky—takes you*. Small package, big punch Powered by 8th Gen Intel® Core™ processors and up to 16GB memory, the ThinkPad X1 Carbon Gen 7 packs a lot of punch. The PCIe solid-state drive (SSD) delivers speedy performance sure to boost your productivity. Easy on the eyes Whether you’re watching a video, Skyping across the world, or looking at graphics, the Thinkpad X1 Carbon Gen 7 features amazing visuals. Choose from several displays, including an FHD touchscreen, or an FHD panel with PrivacyGuard* for screen security. Or experience the cinematic 4K Dolby Vision™ panel with high dynamic range technology—intricate details pop while shadows and textures become richer. Big sound, little system The ThinkPad X1 Carbon Gen 7 laptop includes surround-sound with Dolby Atmos® Speaker System. Two up-firing speakers alongside the keyboard combine with two down-firing woofers on the bottom of the machine. The result? Enhanced audio that seemingly flows all around you. What’s more, four 360-degree microphones cancel unwanted noise when you’re on calls, and pick up your voice from across the room—so you can use voice activation to wake your system, play music, and more. Built for life's extremes Like all ThinkPad laptops, the ThinkPad X1 Carbon Gen 7 is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. A laptop as well-connected as you When you’re out and about, the ThinkPad X1 Carbon Gen 7 can keep you online even when there’s no WiFi. Choose the optional LTE-A card and the WWAN technology lets your laptop function like a smartphone—where there’s cellular service you can always jump online, and you can trust that your connection is secure. We've got your back-and your front Keep your business data—and your privacy—safe with the ThinkPad X1 Carbon Gen 7 laptop’s comprehensive suite of ThinkShield security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile. For your eyes only As part of ThinkShield security, we offer a combination of hardware and software that work together to ensure what’s on your display is for your eyes only. PrivacyGuard* is an electronic privacy filter built into your system that decreases the angle of vision on your display, such that only your eyes, when facing head-on, can see content. All others see a darkened screen. PrivacyAlert is an integrated software that works with the IR camera to ensure that if others look over your shoulder, then a popup notifies you of the potential threat.



Specification:



Design
Product type	Notebook
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	400 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4,2x2,1x2+2x1,4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	6 MB
Processor frequency	1.6 GHz
Processor model	i5-8365U
Processor boost frequency	4.1 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i5
Configurable TDP-up frequency	1.9 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	2133 MHz
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA0
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 620
Discrete graphics adapter model	Not available
Audio
Audio chip	Realtek ALC3286
Audio decoders	Dolby Atmos
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	5.1
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Sustainability certificates	RoHS, TCO, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193555
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	18.3 h
Battery capacity (Watt-hours)	51 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, TCO, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	12.7" (323.5 mm)
Depth	8.55" (217.1 mm)
Height	0.587" (14.9 mm)
Weight	2.4 lbs (1.09 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1100 MHz
Maximum on-board graphics adapter memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics adapter	Yes
Audio system	Dolby Atmos
AC adapter included	Yes
