Description

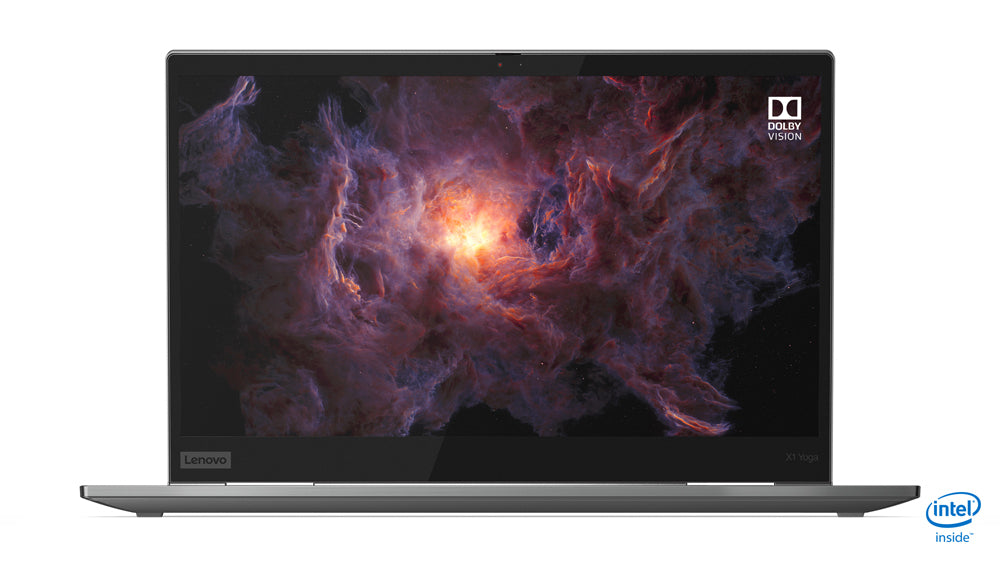

The ultimate in flexibility Thinner. Lighter. More secure. The ThinkPad X1 Yoga Gen 4 features the renowned 360-degree hinge to accommodate your style. This 14" 2-in-1 laptop features a built-in suite of ThinkShield security features to protect all your critical data. And with the choice of a 4K display with Dolby Vision™ and Dolby Atmos™ Speaker System, you can take your creativity—and your entertainment—to new levels. Leave your power cord behind At 17% smaller than its predecessor, the X1 Yoga Gen 4 features a lightweight aluminum chassis. This 2-in-1 weighs only 1.35kg. With a battery life of up to 18 hours, it begs to accompany you everywhere.* And when you do need more juice, Rapid Charge boosts your battery up to 80% in just 60 minutes—giving you 14.4 more hours unplugged. * Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. Raw power, super-speed Powered by 8th Gen Intel® Core™ processors and robust memory, the X1 Yoga Gen 4 packs a big punch. The PCIe solid-state drive (SSD) delivers speedy performance sure to delight with its responsiveness. Unlimited creativity The X1 Yoga Gen 4 includes a rechargeable ThinkPad Pen Pro. Sketch. Sign documents. Take notes. Even color! Never worry about running out of ink or needing batteries, as it charges while it's stored in your system. Plus, with a garaged slot, you won't need to worry about misplacing or leaving it behind. Go ahead and create—there are no limits to where your imagination can take you. Like a cinema in your lap With the optional 4K High Dynamic Range (HDR) display, you'll enjoy life-like accuracy. Add Dolby Vision™ into the mix, and you’ll get vibrant visuals where colors pop, contrast is expanded, brightness increases, and details are much more refined. So whether you’re watching a video, Skyping across the world, or sketching, the X1 Yoga Gen 4 delivers a stunning experience. Or choose from several displays, including an FHD panel with PrivacyGuard if you're more concerned with screen security. Surround sound The X1 Yoga Gen 4 laptop includes surround-sound with the Dolby Atmos® Speaker System. Two up-firing speakers alongside the keyboard combine with two down-firing woofers on the bottom of the machine. The result? Enhanced audio that seemingly flows all around you. What’s more, four 360-degree microphones cancel unwanted noise when you’re on calls, and pick up your voice from across the room—so you can use voice activation to wake your system, play music, and more. Built for life's extremes Like all ThinkPad laptops, the X1 Yoga Gen 4 is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Well-connected When you’re out and about, the X1 Yoga Gen 4 2-in-1 laptop can keep you online even when there’s no WiFi. Choose the optional LTE-A card and the WWAN technology lets your laptop function like a smartphone—where there’s cellular service you can always jump online. And you can trust that your connection is secure. *WWAN must be configured at time of purchase, as it’s not upgradeable. We’ve got your back—and your front Keep your business data—and your privacy—safe with the X1 Yoga Gen 4 laptop’s comprehensive suite of ThinkShield security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 Pro security. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. And the fingerprint reader uses biometrics to log you in with a simple touch. For your eyes only As part of ThinkShield security, we offer a combination of hardware and software that work together to ensure what’s on your display is for your eyes only. PrivacyGuard is an electronic privacy filter built into your system that decreases the angle of vision on your display, such that only your eyes, when facing head-on, can see content. All others see a darkened screen. PrivacyAlert* is an integrated software that works with the IR camera to ensure that if others look over your shoulder, then a popup notifies you of the potential threat. *Requires the optional IR camera.
Specification:
| Design | |
|---|---|
| Colour name | Iron Gray |
| Product type | Hybrid (2-in-1) |
| Housing material | Aluminum, Magnesium |
| Form factor | Convertible (Folder) |
| Product colour | Gray |
| Display | |
| Dual-screen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| 3D | No |
| Display brightness | 380 cd/m² |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 14" |
| NTSC coverage (typical) | 72% |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 2x2 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor frequency | 1.6 GHz |
| Processor model | i5-8265U |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1528 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Memory form factor | On-board |
| Internal memory | 8 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 2133 MHz |
| Maximum internal memory | 8 GB |
| Maximum internal memory (64-bit) | 8 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe, PCI Express |
| Card reader integrated | No |
| Total storage capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card base frequency | 300 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| Audio | |
| Audio chip | Realtek ALC3286 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Auto focus | No |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Performance | |
| Accelerometer | Yes |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Housing material | Aluminum, Magnesium |
| Form factor | Convertible (Folder) |
| Product colour | Gray |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor package size | 46x24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Processor ARK ID | 149088 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 18.1 h |
| Battery capacity | 51 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 65 W |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Smart card reader | No |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 12.7" (323 mm) |
| Depth | 8.58" (218 mm) |
| Height | 0.61" (15.5 mm) |
| Weight | 3 lbs (1.36 kg) |
| Packaging data | |
| AC adapter included | Yes |
| Sensors | |
| Accelerometer | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 32 GB |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| On-board graphics card | Yes |
| 3D | No |
| Maximum internal memory (64-bit) | 8 GB |
| AC adapter included | Yes |
