Description

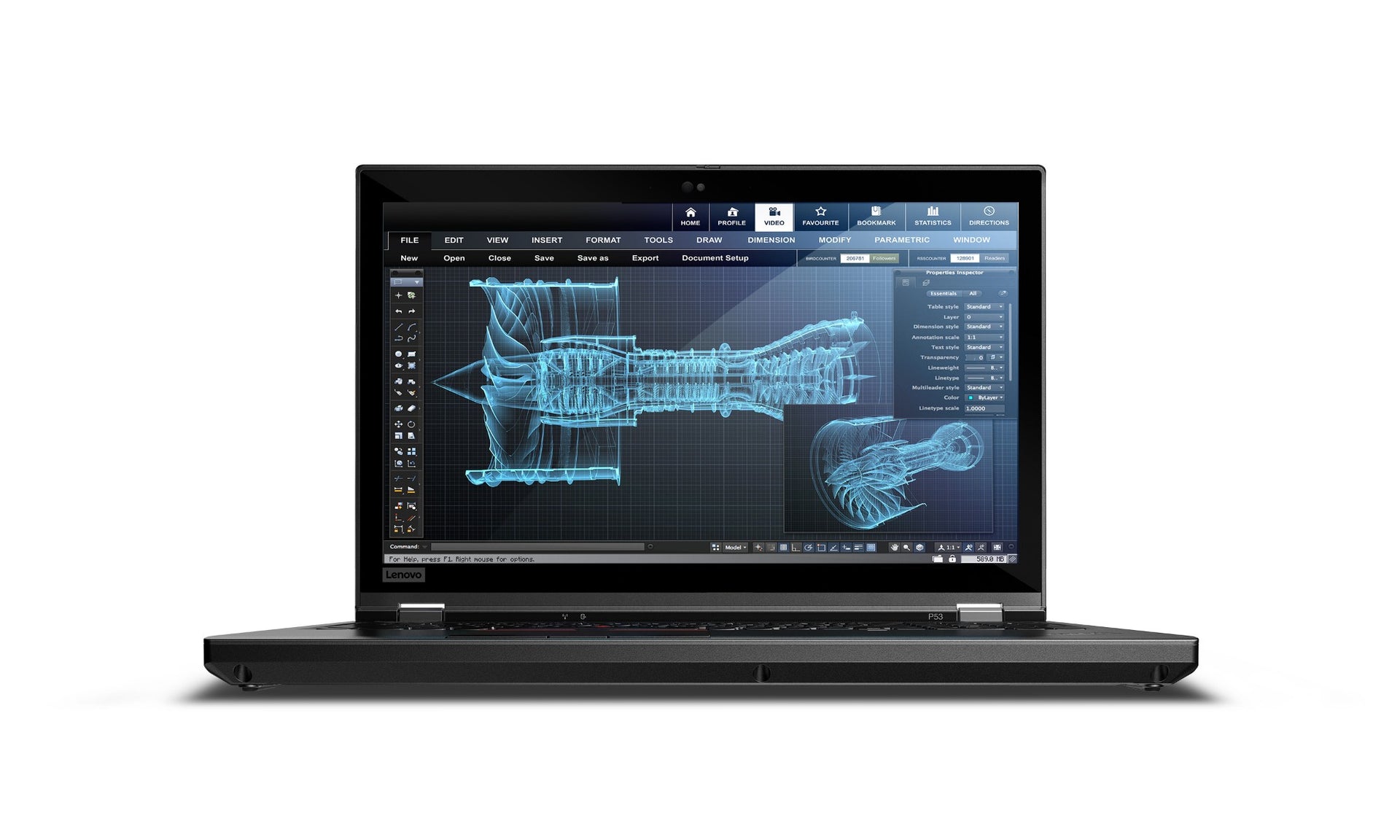

Ready. Set. Render. With a processor choice of up to 9th Gen Intel® Xeon® or 9th Gen Intel® Core™ i9 with 8 cores, the ThinkPad P53 delivers pure power. With the option of the NVIDIA® Quadro RTX™ 5000 GPU, it's more than capable of rendering VR and handling data-intensive AI projects. Up to 6TB of storage means you'll never need to worry about system lag time or running out of space. Additionally, the ThinkPad P53 includes ISV certification from all the major vendors, like 3dsMax®, AutoCAD®, CATIA®, Decision Space®, Petrel®, and Vectorworks® Dazzle or be dazzled The ThinkPad P53 offers the option of a stunning 15.6†4k UHD OLED touch display (3840 x 2160), with Dolby Vision™ high dynamic range (HDR) technology. Enjoy expanded contrast, more refined detail, and colors that are super-vibrant—especially so with DCI-P3 100% color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals! When you need it yesterday The ThinkPad P53 features WiFi-6 certification, the fastest WiFi ever. It’s built to handle larger capacity, especially when running in crowded environments—so no waiting or buffering. Go ahead and stream video, or create it. With a battery that runs up to 16.5 hours, this mobile workstation is ready for anything, anywhere.* For true mobility, add optional WWAN connectivity, which lets you jump online securely wherever there’s cellular service. Tested for battle, built for life Because you need reliability, the ThinkPad P53 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. We take care of security; you take care of business Keep your business data—and your privacy—safe with the ThinkPad P53 mobile workstations’ comprehensive suite of ThinkShield security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The optional match-on-chip fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile. Audio so amazing you’ll think it’s live Speakers on the ThinkPad P53 deliver premium sound with Dolby® Atmos™ Sound system, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. And dual far-field mics ensure that you’ll be heard clearly on every call.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Housing material | Aluminum, Glass Fiber Reinforced Plastic (GFRP), Magnesium |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | 4K Ultra HD |
| Panel type | OLED |
| LED backlight | Yes |
| Display brightness | 400 cd/m² |
| Contrast ratio (typical) | 100000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 15.6" |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| Processor cache | 12 MB |
| Processor frequency | 2.6 GHz |
| Processor model | i7-9850H |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel® CM246 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 64 GB |
| Memory layout (slots x size) | 4 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 128 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | NVMe, PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Total storage capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E9B |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card model | NVIDIA Quadro T2000 |
| Discrete graphics memory type | GDDR5 |
| Audio | |
| Audio chip | Conexant CX11880 |
| Number of microphones | 2 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | DC-in jack |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Housing material | Aluminum, Glass Fiber Reinforced Plastic (GFRP), Magnesium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 4 GB |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 42 x 28 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191047 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 8 h |
| Battery capacity (Watt-hours) | 90 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 170 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Certificates | |
| Certification | MIL-STD-810G |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 14.9" (377.4 mm) |
| Depth | 9.93" (252.3 mm) |
| Height (front) | 1.02" (2.58 cm) |
| Height (rear) | 1.21" (3.07 cm) |
| Weight | 6.39 lbs (2.9 kg) |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| On-board graphics card | Yes |
