Description

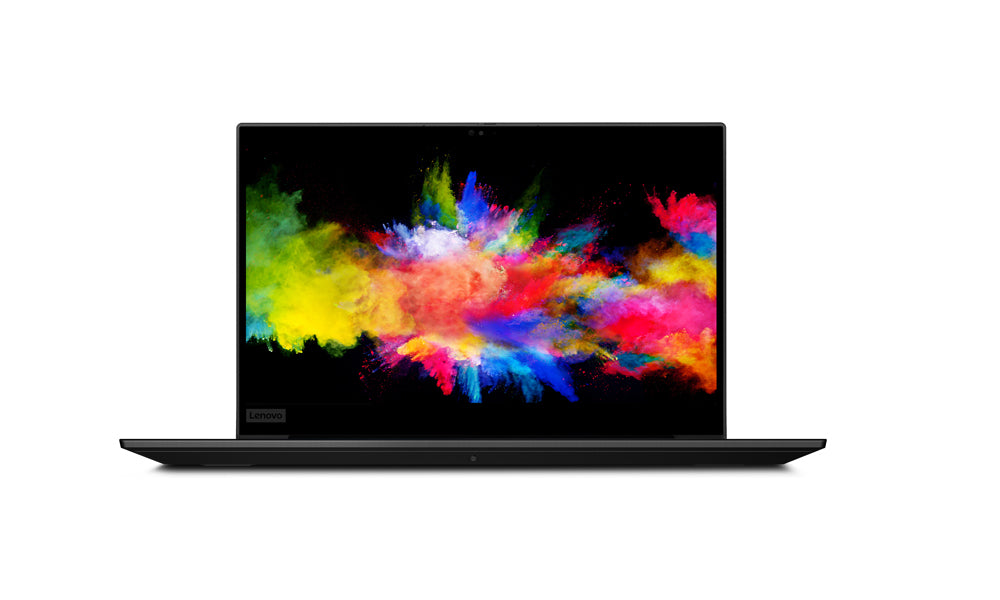

The difference you can see and hear The ThinkPad P1 Gen 2 is built to bring your senses to new heights with the option of a stunning Dolby Vision™ HDR 4K UHD OLED* touchscreen panel that displays the most true-to-life colors the human eye can perceive. With the option of X-Rite Pantone® calibration, what you see on the screen will be exactly how it looks when printed. This is a content creator’s dream come true. With the Dolby Atmos® speaker system and dual far-field microphones, the brilliance of the ThinkPad P1 Gen 2's display is matched with a robust audio experience—whether you're listening to music or on a conference call. All new levels of power This mobile workstation is built to tear through the most demanding computing tasks. Whether you’re an architect using AutoCAD®, or a content creator using demanding visual effects software, with up to Intel® Xeon® processing and the all new NVIDIA® Quadro® T2000 GPU, this laptop will keep the applications you need for work running lag-free. With up to 4TB of storage space available, large files aren’t a problem. Additionally, this laptop includes ISV certification for ArcGIS®, AutoCAD®, Creo®, Decision Space®, McKesson®, Revit®, SolidWorks®, 3dsMax®, and more. Well connected Buckle up for the fastest WiFi ever with WiFi-6. Built to reach speeds of up to 9.6 Gbps, it’s 2.7 times faster than WiFi-5 and designed to maintain optimal functionality in crowded networks. Cruise through downloads on your office network, or connect to several smart devices at home. The ThinkPad P1 Gen 2 can handle the traffic. And with a battery that doesn’t quit for up to 13 hours, you have the freedom to go wherever you want. Workstation power has never looked so good Boasting ThinkPad’s signature black finish and encased in carbon-fiber and magnesium alloy, the ThinkPad P1 Gen 2 has the style to match the power inside. Purchase any UHD 4K display like the all-new OLED display and get our new carbon-fiber weave top and experience a design that is as modern and stylish as it is durable. At a mere 17.2mm thin, no one will mistake this machine for anything less than an ultra-premium must-have. Built for any environment Because you need reliability, the ThinkPad P1 Gen 2 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Small stature, immense capabilities It’s not just power that the ThinkPad P1 Gen 2 packs into its slim chassis. It's robust connectivity that makes the real difference—including two Thunderbolt™ 3 ports, as well as USB 3.1 and HDMI ports—it puts other ultrathin mobile workstations to shame. Protects your data and privacy Keep your business data—and your privacy—safe with the ThinkPad P1 Gen 2 mobile workstation’s security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The fingerprint reader uses biometrics to not only log you in with a simple touch, but protect you from spoofing attacks. Or, use the optional IR camera with Windows Hello to log in with your smile.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| Dual-screen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 15.6" |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| Processor cache | 12 MB |
| Processor frequency | 2.6 GHz |
| Processor model | i7-9850H |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel® CM246 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 4 GB |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E9B |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| Audio | |
| Audio chip | Synaptic CX11880 |
| Number of microphones | 2 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Near Field Communication (NFC) | No |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| ExpressCard slot | No |
| USB Power Delivery | Yes |
| Charging port type | DC-in jack |
| Expansion slots | |
| ExpressCard slot | No |
| Performance | |
| ExpressCard slot | No |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 4 GB |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 42 x 28 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191047 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 13.8 h |
| Battery capacity | 80 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 135 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Certificates | |
| Certification | MIL-STD-810G |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Weight & dimensions | |
| Width | 14.2" (361.8 mm) |
| Depth | 9.67" (245.7 mm) |
| Height | 0.724" (18.4 mm) |
| Weight | 3.75 lbs (1.7 kg) |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| On-board graphics card | Yes |
| Audio system | Dolby Audio Premium |
| AC adapter included | Yes |
