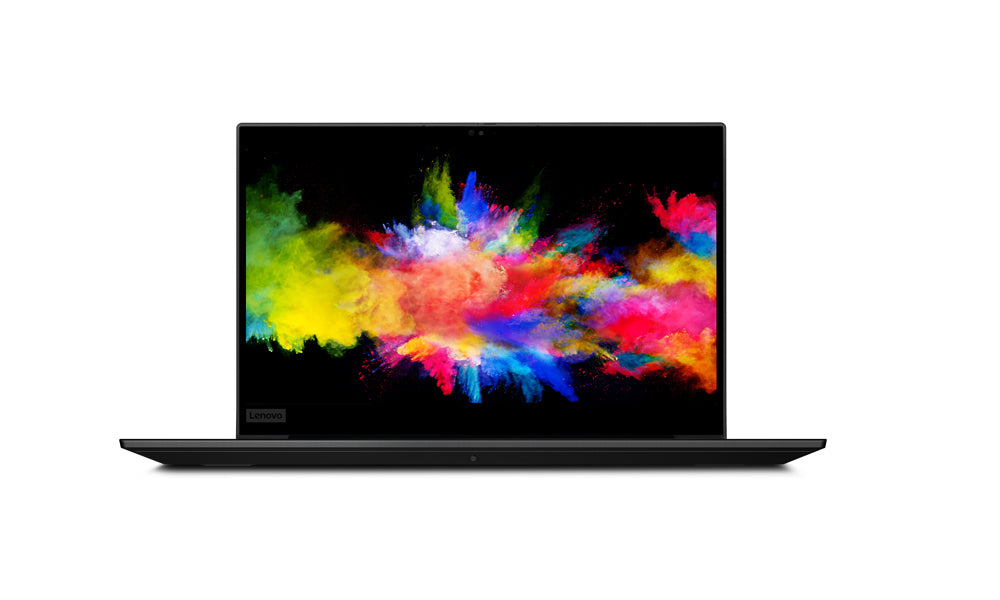

20QT006AUS - Lenovo P1 GEN 2,W10P,I7,32GB,2TB,3YR

The difference you can see and hear The ThinkPad P1 Gen 2 is built to bring your senses to new heights with the option of a stunning Dolby Vision™ HDR 4K UHD OLED* touchscreen panel that displays the most true-to-life colors the human eye can perceive. With the option of X-Rite Pantone® calibration, what you see on the screen will be exactly how it looks when printed. This is a content creator’s dream come true. With the Dolby Atmos® speaker system and dual far-field microphones, the brilliance of the ThinkPad P1 Gen 2's display is matched with a robust audio experience—whether you're listening to music or on a conference call. *Coming Fall 2019 All new levels of power This mobile workstation is built to tear through the most demanding computing tasks. Whether you’re an architect using AutoCAD®, or a content creator using demanding visual effects software, with up to Intel® Xeon® processing and the all new NVIDIA® Quadro® T2000 GPU, this laptop will keep the applications you need for work running lag-free. With up to 4TB of storage space available, large files aren’t a problem. Additionally, this laptop includes ISV certification for ArcGIS®, AutoCAD®, Creo®, Decision Space®, McKesson®, Revit®, SolidWorks®, 3dsMax®, and more. Well connected Buckle up for the fastest WiFi ever with WiFi-6. Built to reach speeds of up to 9.6 Gbps, it’s 2.7 times faster than WiFi-5 and designed to maintain optimal functionality in crowded networks. Cruise through downloads on your office network, or connect to several smart devices at home. The ThinkPad P1 Gen 2 can handle the traffic. And with a battery that doesn’t quit for up to 13 hours*, you have the freedom to go wherever you want. *Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. Workstation power has never looked so good Boasting ThinkPad’s signature black finish and encased in carbon-fiber and magnesium alloy, the ThinkPad P1 Gen 2 has the style to match the power inside. Purchase any UHD 4K display like the all-new OLED display and get our new carbon-fiber weave top and experience a design that is as modern and stylish as it is durable. At a mere 17.2mm thin, no one will mistake this machine for anything less than an ultra-premium must-have. Built for any environment Because you need reliability, the ThinkPad P1 Gen 2 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Small stature, immense capabilities It’s not just power that the ThinkPad P1 Gen 2 packs into its slim chassis. It's robust connectivity that makes the real difference—including two Thunderbolt™ 3 ports, as well as USB 3.1 and HDMI ports—it puts other ultrathin mobile workstations to shame. Protects your data and privacy Keep your business data—and your privacy—safe with the ThinkPad P1 Gen 2 mobile workstation’s security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The fingerprint reader uses biometrics to not only log you in with a simple touch, but protect you from spoofing attacks. Or, use the optional IR camera with Windows Hello to log in with your smile.



Specification:



Design
Colour name	Black Weave
Product type	Mobile workstation
Housing material	Aluminum, Carbon fiber Reinforced Polymer (CFRP)
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	4K Ultra HD
Panel type	OLED
LED backlight	Yes
3D	No
Display brightness	400 cd/m²
Contrast ratio (typical)	100000:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Processor generation	9th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
ECC supported by processor	No
Processor cache type	Last Level Cache
Processor cache	12 MB
Processor frequency	2.6 GHz
Processor model	i7-9850H
Processor boost frequency	4.6 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
ECC	No
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	NVMe
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E9B
On-board graphics card family	Intel® UHD Graphics
On-board graphics card 4K support	Yes
Number of discrete graphics cards installed	1
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Discrete graphics card model	NVIDIA Quadro T2000
Discrete graphics memory type	GDDR5
Audio
Audio chip	Synaptic CX11880
Audio decoders	Dolby Atmos
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Rear camera	No
Swivel webcam	No
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
LightScribe	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Wi-Fi 6 AX200
Near Field Communication (NFC)	No
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
TV-out	No
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	1
Combo headphone/mic port	Yes
ExpressCard slot	No
CardBus PCMCIA slot type	No
SmartCard slot	No
USB Power Delivery	Yes
Charging port type	DC-in jack
Expansion slots
ExpressCard slot	No
CardBus PCMCIA slot type	No
SmartCard slot	No
Performance
ExpressCard slot	No
CardBus PCMCIA slot type	No
SmartCard slot	No
GPS (satellite)	No
TV tuner integrated	No
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Aluminum, Carbon fiber Reinforced Polymer (CFRP)
GPS (satellite)	No
Form factor	Clamshell
Product colour	Black
TV tuner integrated	No
Discrete graphics card memory	4 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191047
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Battery
Battery technology	Lithium
Battery life (max)	13.8 h
Battery capacity	80 Wh
Fast charging	Yes
Power
AC adapter power	135 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.2" (361.8 mm)
Depth	9.67" (245.7 mm)
Height	0.736" (18.7 mm)
Weight	3.99 lbs (1.81 kg)
Packaging data
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Other features
GPS (satellite)	No
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	64 GB
WLAN controller model	Intel Wi-Fi 6 AX200
On-board graphics card	Yes
LightScribe	No
Audio system	Dolby Audio Premium
3D	No
Swivel webcam	No
AC adapter included	Yes
TV tuner integrated	No
Packaging content
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
