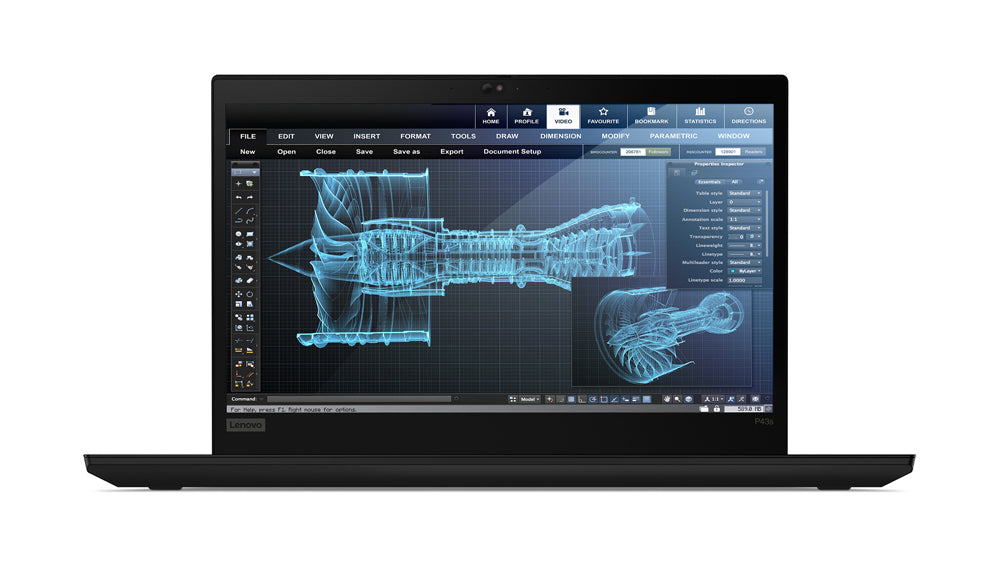

Powerful learning tool for computer-aided design The ThinkPad P43s mobile workstation is ideal for light-duty computer-aided design (CAD) in fields such as architecture or engineering, as well as technical education such as STEM. Its 8th Gen Intel® Core™ processor is fast and powerful, while its NVIDIA® Quadro® P520 GPU with 2GB DDR5 gives it extra kick when rendering drawings. Superfast PCIe solid-state storage and up to 48GB of DDR4 memory ensure no more lag time. This workstation also includes ISV certification from major vendors such as Autodesk®, Siemens NX, SketchUp, SolidWorks®, and more. See your renderings in vivid detail Opt for a WQHD (2560 x 1440), 500-nit display for vibrant color, with 100% Adobe color gamut and Dolby Vision™ high dynamic range (HDR) technology, for true-to-life images and video. Enjoy increased brightness, expanded contrast, and refined detail, all in brilliant colors. Don’t miss a sound User-facing speakers and dual far field mic help provide a premium audio experience. Dolby Audio™ delivers a rich, powerful sound that adjusts, to deliver home theatre quality in a virtual surround sound experience. This is listening, made easy. Connected and powered for mobility Take the ThinkPad P43s mobile workstation with you anywhere, for as long as you need to. You can also add the option of WWAN connectivity and take it anywhere cellular service can reach. With a battery that lasts up to 15.4 hours, you can stay for a while. Built to withstand almost anything The ThinkPad P43s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks, to ensure it will run in extreme conditions. You can rely on it from the Arctic wilderness to desert dust storms, from zero gravity to spills and drops. Its durability will keep it working for you. Keeps your data and your privacy safe This mobile workstation’s security features protect your business-critical info. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| Dual-screen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| 3D | No |
| Display brightness | 400 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 14" |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Whiskey Lake |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor frequency | 1.9 GHz |
| Processor model | i7-8665U |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1528 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Configurable TDP-up frequency | 2.1 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Memory form factor | On-board + SO-DIMM |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 48 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 GB |
| SSD interface | NVMe, PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 1000 GB |
| Total SSDs capacity | 1000 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 2 GB |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card base frequency | 300 MHz |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Discrete graphics card model | NVIDIA Quadro P520 |
| Discrete graphics memory type | GDDR5 |
| Audio | |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Auto focus | No |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Docking connector | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Full-size keyboard | Yes |
| Windows keys | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 2 GB |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 46x24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193563 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Response Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 14.7 h |
| Battery capacity (Watt-hours) | 50 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Smart card reader | No |
| Certificates | |
| Certification | MIL-STD-810G |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
| Weight & dimensions | |
| Width | 13" (329 mm) |
| Depth | 8.94" (227 mm) |
| Height | 0.705" (17.9 mm) |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 32 GB |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| On-board graphics card | Yes |
| Audio system | Dolby Audio Premium |
| 3D | No |
| AC adapter included | Yes |
