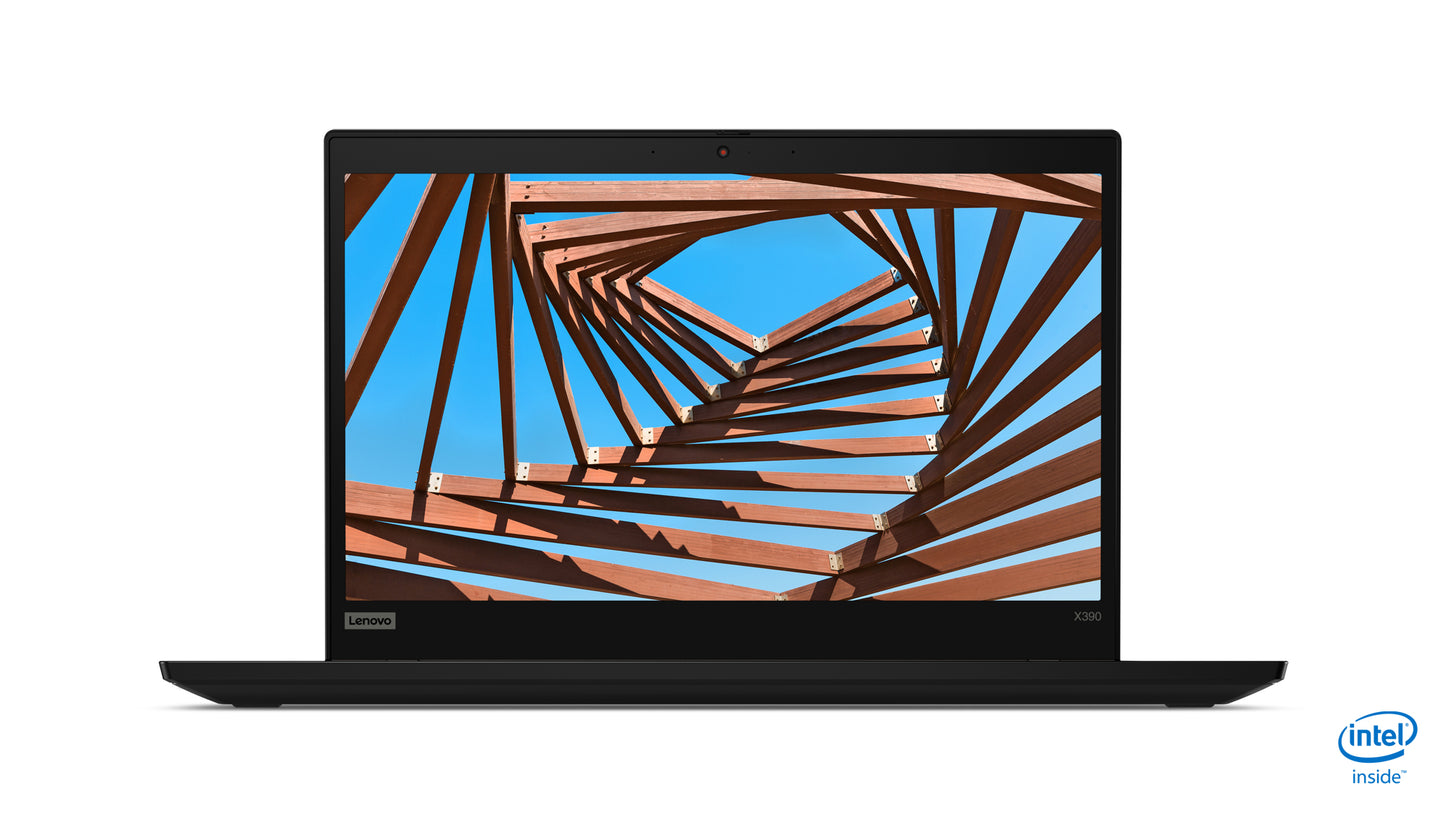

20SC0004US - Lenovo THINKPAD X390, INTEL CORE I7-10510U (1.80GHZ, 8MB), 13.3 1920X1080, WINDOWS 10 P

Goes everywhere, takes you further The ThinkPad X390 is a perfect traveling companion—slim and light, with great battery life. This 13" laptop is designed with a 12" footprint, and is easy to carry with a starting weight of only 2.7 lbs (1.22 kg). Its 17.6-hour battery can be charged to 80 percent capacity in 60 minutes with Rapid Charge, so you can plug it in during a layover and have plenty of battery life for the next leg of your trip. Plus, with optional global LTE-A WWAN, you’ll stay connected no matter where that leg takes you. Packs a punch The ThinkPad X390 carries some serious power behind its streamlined design, from its 8th Gen Intel® Core™ processors, to fast PCIe SSD storage, to the enhanced audio experience of its dual far-field mics and Dolby Audio™ Premium. Take productivity on the go, and let these resources drive your business forward. Dependability at home and abroad The ThinkPad X390 work laptop was designed to handle the hectic demands of your job, no matter where those demands take it. Tested against 12 military-grade requirements, more than 200 quality checks, and containing soldered-down memory, it’s built to withstand extreme conditions. Back at the office, use the ThinkPad Pro Dock (sold separately), a USB-C side mechanical docking station that easily connects to and levels your laptop. Keep your business, yours The ThinkPad X390 display has PrivacyGuard*, exclusive technology to block its content from any viewing angles other than head-on, and alerts you if a shoulder surfer is trying to see it. ThinkShutter—a physical cover for the webcam—helps prevent outsiders from using the camera to spy on you. Add an optional Hybrid IR (infrared) camera and optional touch fingerprint reader for biometric login, adding another measure of security.



Specification:



Design
Product type	Notebook
Market positioning	Business
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	300 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1920 x 1080 pixels
Display diagonal	13.3"
NTSC coverage (typical)	72%
Native aspect ratio	16:9
Processor
Processor generation	10th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Comet Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache	8 MB
Processor frequency	1.8 GHz
Processor model	i7-10510U
Processor boost frequency	4.9 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2.3 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
Number of execution units	24
On-board graphics card ID	0x9B41
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
LightScribe	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Microphone in	No
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Market positioning	Business
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	46 x 24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	196449
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	17.6 h
Battery capacity (Watt-hours)	48 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	12.3" (312 mm)
Depth	8.55" (217.2 mm)
Height	0.665" (16.9 mm)
Weight	2.82 lbs (1.28 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
LightScribe	No
Audio system	Dolby Audio Premium
3D	No
Maximum internal memory (64-bit)	8 GB
AC adapter included	Yes
