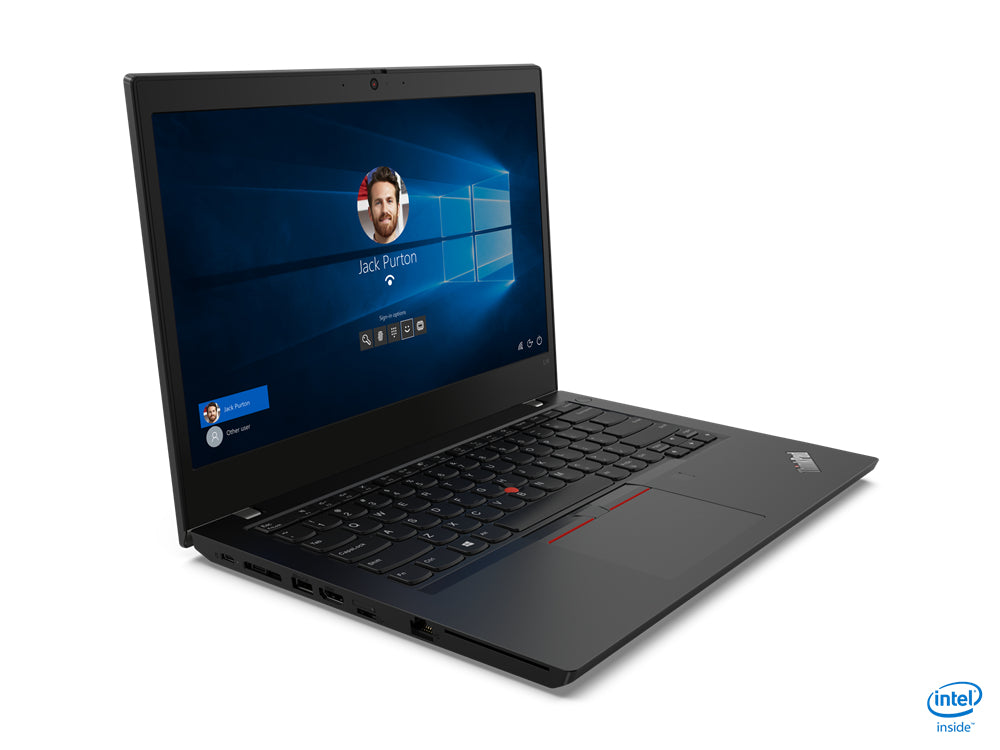

20U10029US - Lenovo THINKPAD L14

Go all day & then some With all-day battery life on the ThinkPad L14 laptop, you’ll never be tethered to your desk. Plus, rapid charging technology delivers 0-80% battery charge in just an hour—that’s nearly a full charge over lunch. So go wherever you need to get the job done. Made for work & play The ThinkPad L14 laptop offers HD and FHD panels, with the option of a touchscreen. Combined with Dolby Audio™ to enhance the sound, you’ll enjoy streaming movies and listening to music when you’re off-the-clock. Tough enough for whatever comes your way ThinkPad L14 laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way. Seamless security The integrated suite of ThinkShield security solutions works to ensure your system remains protected. The discrete Trusted Platform Module [dTPM] encrypts your data, while the optional fingerprint reader ensures a fast, secure login. Plus, the ThinkShutter privacy cover means your webcam will only be used when you want it to be. Save time, gain convenience With just the touch of a button, ThinkPad L14 laptop lets you easily answer, make, and disconnect from conference calls by using the F9-F11 function keys. Enjoy one-touch calling and simplify your workday. So many ways to connect The ThinkPad L14 laptop keeps you connected no matter where you go. Speedy WiFi 6 lets you jump on crowded public platforms fast. And choose the optional LTE-A WWAN card that provides connection wherever there’s cellular service*, so you’ll never have to worry about being off-line unless you choose.*WWAN must be configured at the time of purchase and requires network service.



Specification:



Design
Product type	Notebook
Market positioning	Business
Housing material	ABS synthetics, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Display
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	250 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:9
Processor
Processor cache	8 MB
Processor frequency	2.1 GHz
Processor model	4650U
Processor boost frequency	4 GHz
Processor cores	6
Motherboard chipset	AMD SoC
Processor manufacturer	AMD
Processor family	AMD Ryzenâ„¢ 5 PRO
Memory
Memory form factor	SO-DIMM
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express 3.0
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	AMD Radeon Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Realtek RTL8852AE
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
Antenna type	2x2
WLAN controller manufacturer	Realtek
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Market positioning	Business
Housing material	ABS synthetics, Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	14.36 h
Battery capacity	45 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Cable lock slot	Yes
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Weight & dimensions
Width	13" (331 mm)
Depth	9.25" (235 mm)
Height	0.803" (20.4 mm)
Weight	3.55 lbs (1.61 kg)
Other features
WLAN controller model	Realtek RTL8852AE
On-board graphics card	Yes
Audio system	Dolby Audio
Anti-glare screen	Yes
