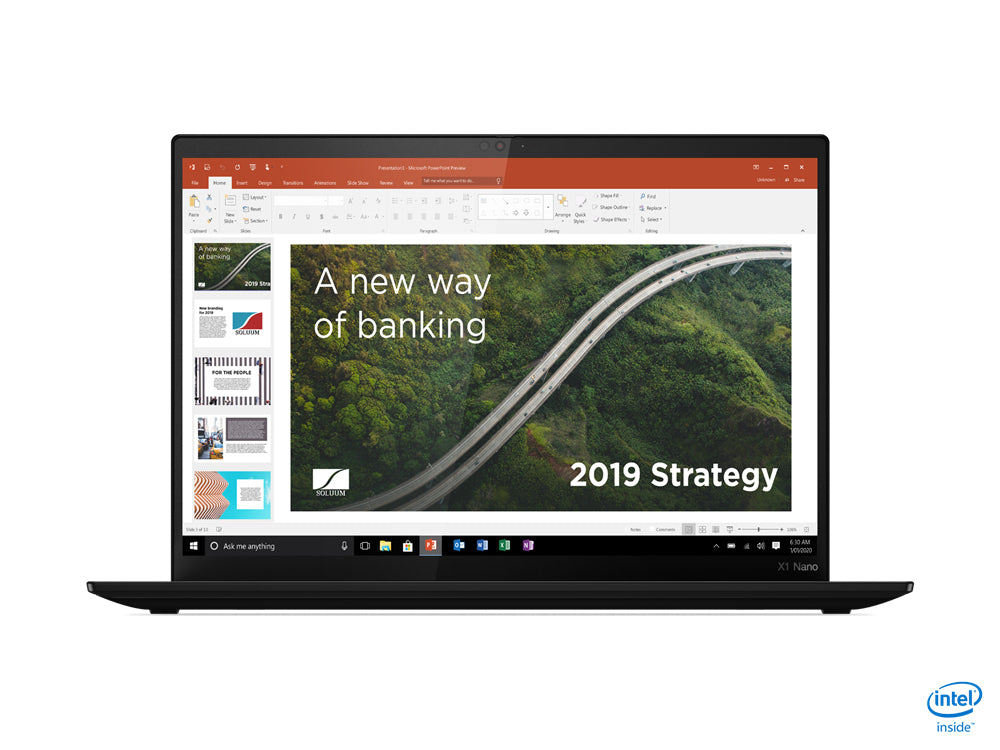

20UN0059US - Lenovo THINKPAD X1 NANO GEN1 I5-1130G7

Lightweight powerhouse With a starting weight of less than one kilogram / two pounds, the ThinkPad X1 Nano laptop is our lightest ThinkPad ever. Yet it’s a heavyweight performer. Packed with 11th Gen Intel® power, this 13" laptop features a choice of Windows 10 or Linux operating systems. It also boasts productivity-rich features like always-on responsiveness, optional 5G functionality, speedy Thunderbolt™ 4, Rapid Charge, and a 16:10 aspect ratio for more screen. Introducing Intel® Evo™ platform The ThinkPad X1 Nano is our first ThinkPad laptop to use the Intel® Evo™ platform, delivering a powerhouse combination of performance, responsiveness, battery life, and stunning visuals. With up to 11th Gen Intel® Core™ i7 processors, you can count on an exceptional experience, anywhere. Stunning visuals The ThinkPad X1 Nano laptop features a 13" Dolby Vision™ 2K display and delivers expansive views with a 16:10 aspect ratio—so it’s actually the same height as the X1 Carbon, yet with a much smaller footprint. Powered by Intel® Iris™ Xe graphics, the 2160 x 1350 resolution display with 100% sRGB ensures picture clarity and colour accuracy. Available with and without touch display options. Sounds amazing The Dolby Atmos® Speaker System on the ThinkPad X1 Nano laptop includes two upward-firing tweeters and two downward-firing woofers—this creates an immersive sound experience you’ll enjoy for work and for play. Four 360-degree far-field mics ensure you’re heard loud and clear during conference and video calls. The future is now Engineered for a future of universal 5G technology, the ThinkPad X1 Nano laptop offers a true smartphone-like experience in an always-connected PC. Speedy WiFi 6 lets you jump on crowded public platforms fast. And with the optional 4G / 5G service*, you can enjoy faster more secure, access to your corporate network and uninterrupted video streaming. Stay connected to what matters most, no matter where you are.* Optional WWAN availability varies by region and must be configured at time of purchase; it requires a network service provider. Boost your productivity Enjoy time-saving features that return minutes to your busy day. The ThinkPad X1 Nano laptop offers Modern Standby, which enables the system to wake and connect to the internet instantaneously. All-day battery life keeps you unplugged, but when you need more juice, Rapid Charge delivers 0-80% in just an hour. What’s more, with just the touch of a button, you can easily answer, make, and disconnect from conference calls by using the F9-F11 function keys. Built-in security The ThinkPad X1 Nano keeps your data and your device protected through an updated suite of built-in ThinkShield security solutions, as well as truly innovative AI and biometric security features. These range from the discrete Trusted Platform Module (dTPM), which encrypts data—making it more difficult to hack—to the extra-secure match-on-chip fingerprint reader. Human-presence detection automatically locks your device when you move away, and in combination with the IR camera, it enables zero-touch login even from sleep. ThinkPad durability ThinkPad laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way. Specifications may vary depending upon region/model.



Specification:



Design
Product type	Notebook
Form factor	Clamshell
Product colour	Black
Intel® vPro™ Platform Eligibility	Yes
Display
HD type	2K Ultra HD
Panel type	IPS
LED backlight	Yes
Display brightness	450 cd/m²
Contrast ratio (typical)	1000:1
Touchscreen	No
Display resolution	2160 x 1350 pixels
Display diagonal	13"
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	11th gen Intel® Core™ i5
Configurable TDP-down	7 W
Configurable TDP-down frequency	0.8 GHz
Processor cache	8 MB
Processor model	i5-1140G7
Processor boost frequency	4.2 GHz
Processor cores	4
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	15 W
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4266 MHz
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express 3.0
Card reader integrated	No
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3306
Number of microphones	4
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Camera
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB Type-C DisplayPort Alternate Mode	Yes
Combo headphone/mic port	Yes
USB Power Delivery	Yes
USB4 Gen 3x2 ports quantity	2
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Idle States	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	13.6 h
Battery capacity (Watt-hours)	48 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Certificates
Certification	MIL-STD-810H
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Weight & dimensions
Width	11.5" (292.8 mm)
Depth	8.18" (207.7 mm)
Height (front)	0.547" (1.39 cm)
Height (rear)	0.657" (1.67 cm)
Weight	32 oz (907 g)
Other features
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes
Audio system	Dolby Atmos
