20VX00HBUS - Lenovo P14S G2,W10P,I7,32GB,1TB,3YR

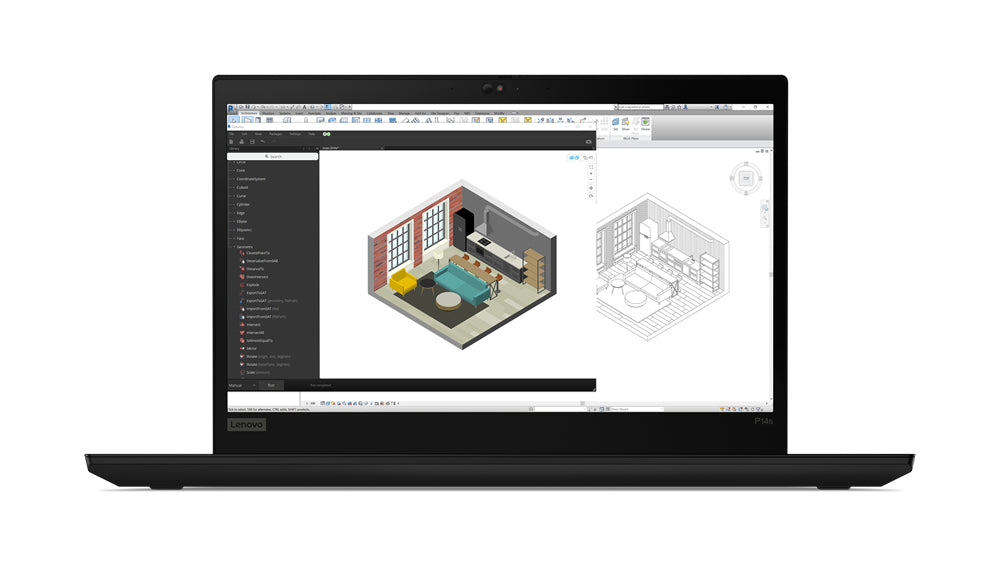

Power that moves The ThinkPad P14s Gen 2 (14" Intel) laptop, Lenovo’s most portable mobile workstation, combines up to 11th Gen Intel® Core™ processors and NVIDIA® professional graphics. Perfect for highly mobile power users, the P14s Gen 2 strikes the balance between power and mobility—allowing students, architects, and engineers to be creative anytime, anywhere. Versatile power Engineered for highly mobile power users, the ThinkPad P14s Gen 2 (14" Intel) is fueled by up to 11th Gen Intel® Core™ processors for unmatched speed and performance. NVIDIA® professional graphics with 4GB vRAM power an extra kick for renderings and other intensive tasks. See it bright, see it clear Choose a ThinkPad P14s Gen 2 (14" Intel) with a 4K UHD (3840 x 2160) display for vivid, true-to-life images and video. This 500-nit display option delivers increased brightness, while integrated X-Rite Factory Color Calibration assures pin-point color accuracy. Slim profile, big-time versatility While the ThinkPad P14s Gen 2 (14" Intel) packs massive power into its slim, portable, 1.47kg design, it also provides robust connectivity to give you an extra edge—including two Thunderbolt™ 4 ports, along with HDMI and USB 3.2 connectors. New levels of power Up to 2TB of fast NVMe SSD storage and up to 48GB 3200MHz memory make lag time a thing of the past. The ThinkPad P14s Gen 2 (14" Intel) also includes ISV certifications from major vendors like AutoCAD®, Revit®, SolidWorks®, and more. Built tough To ensure it will run in extreme conditions, the ThinkPad P14s Gen 2 (14" Intel) is tested against 12 military-grade requirements and more than 200 quality checks. From the Arctic wilderness to desert dust storms, from zero gravity to accidental spills and being dropped, it won’t let you down. Security first The ThinkPad P14s Gen 2 (14" Intel) boasts an updated suite of built-in ThinkShield features to safeguard your device and data. A fingerprint reader assures extra-secure login. Discrete Trusted Platform Module (dTPM) encrypts your business-critical data and works in conjunction with Windows 10 security features. And its ThinkPad Webcam Privacy Shutter lets you physically close the camera to keep the outside world out.



Specification:



Design
Product type	Mobile workstation
Housing material	Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)
Form factor	Clamshell
Product colour	Black
Display
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Display brightness	500 cd/m²
Contrast ratio (typical)	1500:1
Touchscreen	No
Display resolution	3840 x 2160 pixels
Display diagonal	14"
Anti-glare screen	Yes
RGB colour space	DCI-P3
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400, Dolby Vision
Colour gamut	100%
Native aspect ratio	16:9
Processor
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.1 GHz
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	2.6 GHz
Processor model	i5-1145G7
Processor boost frequency	4.4 GHz
Processor cores	4
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-up	28 W
Memory
ECC	No
Memory form factor	On-board + SO-DIMM
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.2
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11
Technical details
Housing material	Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS)
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Idle States	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	9.7 h
Battery capacity (Watt-hours)	50 Wh
Power
AC adapter power	65 W
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	MIL-STD-810H
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Weight & dimensions
Width	13" (329 mm)
Depth	8.94" (227 mm)
Height	0.705" (17.9 mm)
Weight	3.24 lbs (1.47 kg)
Other features
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes
Audio system	Dolby Audio
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
