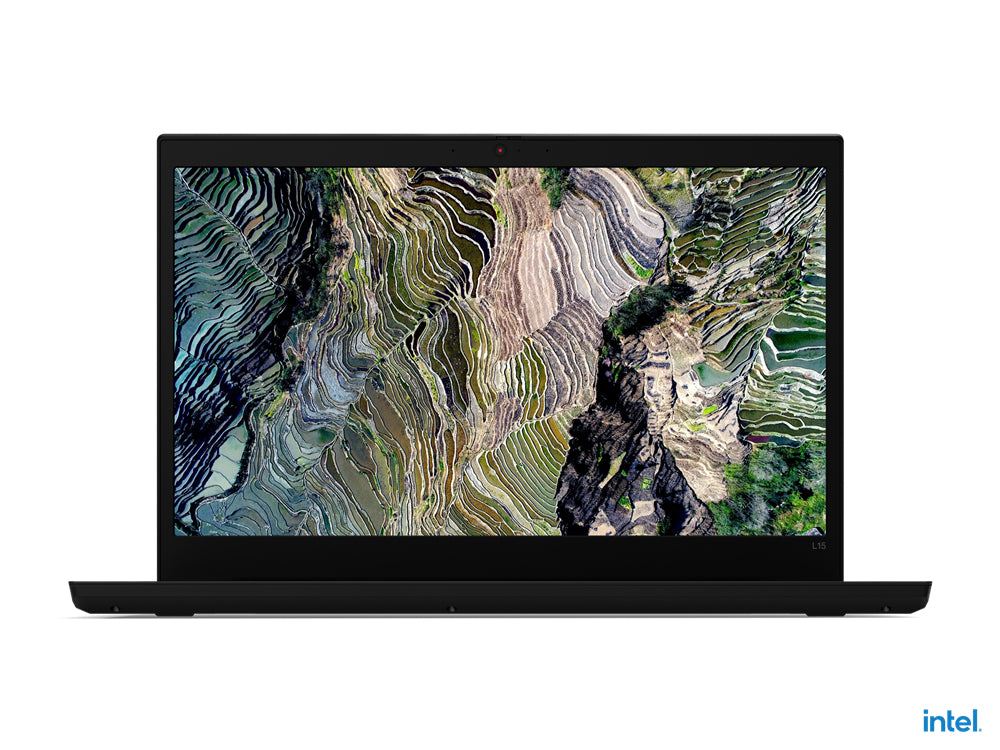

20X3001CUS - Lenovo TP L15 G2 I5-1135G7

Better performance ThinkPad L15 Gen 2 laptop powers through heavy workloads with up to 11th Gen Intel® Core™ i7 vPro® processors, up to 64GB DDR4 (3200MHz) memory, up to 1TB SSD, and up to 2TB HDD storage. Combine all this with optional discrete NVIDIA® MX450 graphics, and you have a device that transitions easily from work to play and then back again. Enhanced efficiency Enjoy time-saving features that return minutes to your busy day. The ThinkPad L15 Gen 2 laptop offers Modern Standby, which enables the system to wake and connect to the internet instantaneously. Plus, it keeps email and select apps synced even when the device is asleep, ensuring instant productivity upon waking. Speedy connections With the second generation of the ThinkPad L15 (15, Intel), it’s even easier to stay connected—whether to devices or the internet. The Thunderbolt™ 4 port transfers data super-fast, while the HDMI 2.0 port conveniently hooks up to a monitor. Speedy WiFi 6 lets you jump on crowded public platforms while avoiding lag-time and buffering. And with the optional 4G WWAN*, you can enjoy fast and secure access to your network and uninterrupted video streaming even when WiFi is out of range. * Optional WWAN availability varies by region and must be configured at time of purchase; it requires a network service provider. Call convenience & fine-tuned audio When you need to make calls, the dual-array mics and the Dolby® Premium app on the ThinkPad L15 Gen 2 cancel background noise to deliver a fine-tuned call experience. Plus, with just the touch of a button, this laptop lets you easily answer, make, and disconnect from conference calls with the F9-F11 function keys. Enjoy one-touch calling and simplify your workday. Built-in security solutions The ThinkPad L15 Gen 2 laptop protects your data and your device with an updated suite of built-in ThinkShield security solutions, as well as biometric security features. These range from the match-on-chip fingerprint reader to the discrete Trusted Platform Module (dTPM), which encrypts data—making it more difficult to hack. Plus, the webcam privacy shutter ensures your camera stays off when you want it to. Handles whatever comes your way ThinkPad laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way.



Specification:



Design
Product type	Notebook
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Display
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	250 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	15.6"
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:9
Processor
Processor generation	11th gen Intel® Core™ i5
Configurable TDP-down	12 W
Configurable TDP-down frequency	0.9 GHz
Processor cache	8 MB
Processor model	i5-1135G7
Processor boost frequency	4.2 GHz
Processor cores	4
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Memory
Memory form factor	SO-DIMM
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in subwoofer	No
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
Thunderbolt technology	Yes
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	US English
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Thunderbolt technology	Yes
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Idle States	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	7.53 h
Battery capacity	45 Wh
Fast charging	Yes
Power
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	MIL-STD-810H
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Weight & dimensions
Width	14.4" (366.5 mm)
Depth	9.84" (250 mm)
Height	0.827" (21 mm)
Weight	4.37 lbs (1.98 kg)
Other features
Thunderbolt technology	Yes
On-board graphics card	Yes
Audio system	Dolby Audio Premium
Anti-glare screen	Yes
