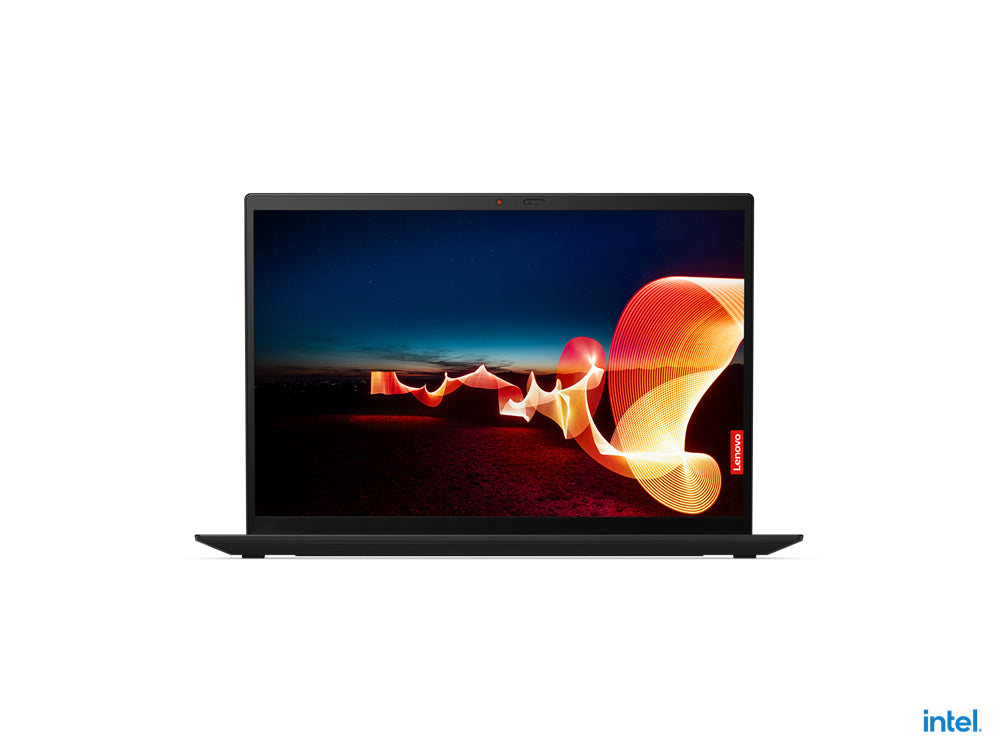

20XW004DUS - Lenovo TOPSELLER THINKPAD X1 CARBON G9

Responsiveness reimagined With the Intel® Evo™ platform, the ThinkPad X1 Carbon Gen 9 laptop delivers a powerhouse combination of performance, responsiveness, battery life, and stunning visuals. With up to 11th Gen Intel® Core™ i7 vPro® processors, you can count on an exceptional experience, anywhere. Cool under pressure The new one-bar hinge, dual fan, and rear venting for an improved Intelligent Thermal Solution mean you can put in long hours on the job, and the ThinkPad X1 Carbon Gen 9 laptop will stay as cool as you are. Security integrated seamlessly With an updated suite of built-in ThinkShield security solutions, safeguards your ThinkPad X1 Carbon Gen 9 and your data. Biometrics provide an extra-secure fingerprint reader that is standard and is integrated with the power button—so you can log in and boot up instantaneously. Human-presence detection automatically locks your device when you move away, and in combination with the optional IR camera, it enables zero-touch login even from sleep. Plus, choose the PrivacyGuard display panel to ensure wandering eyes can’t see what’s on your screen. Vibrant visuals easy on the eyes The Lenovo ThinkPad X1 Carbon Gen 9 features a refined 16:10 display with narrow bezels and a rich, high-resolution screen. Choose the UHD+ panel with Dolby Vision™ to improve your viewing experience. Powerful Intel® Iris™ Xe graphics render amazing picture clarity and color accuracy—whether you’re video-conferencing, browsing, or watching media. Not only is this low-power panel energy efficient, but it’s also TÜV Rheinland-certified for reduced blue-light emissions to promote eye-care health.Not all panels include all features. See tech specs for details. Enhanced remote collaboration The Dolby Atmos® Speaker System on the ThinkPad X1 Carbon Gen 9 laptop includes two upward-firing speakers and two downward-firing woofers—this creates an immersive sound experience you’ll enjoy for work and for play. Dolby Voice® and four 360-degree far-field mics combined with a high-definition camera for visual clarity improve remote collaboration and ensure you’re heard loud and clear during calls. Future-proof The ThinkPad X1 Carbon Gen 9 laptop offers a true smartphone-like experience in an always-connected PC. Speedy WiFi 6 lets you jump on crowded public platforms fast while avoiding lag-time and buffering. And with the optional 4G / 5G WWAN*, you can enjoy faster, more secure access to your network and uninterrupted video streaming. Stay connected to what matters most, no matter where you are. * Optional WWAN availability varies by region and must be configured at time of purchase; it requires a network service provider. 4G available Spring 2021. 5G available May 2021. Military-grade tough ThinkPad laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way.



Specification:



Design
Product type	Notebook
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	400 cd/m²
Contrast ratio (typical)	1000:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	14"
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	11th gen Intel® Core™ i7
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	i7-1165G7
Processor boost frequency	4.7 GHz
Processor cores	4
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Memory
Memory form factor	On-board
Internal memory	8 GB
Internal memory type	LPDDR4x-SDRAM
Memory clock speed	4266 MHz
Maximum internal memory	8 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
Card reader integrated	No
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3306
Number of microphones	4
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in subwoofer	No
Built-in microphone	Yes
Camera
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Idle States	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	16.7 h
Battery capacity	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Cable lock slot type	Kensington
Password protection type	Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	12.4" (315 mm)
Depth	8.72" (221.6 mm)
Height	0.587" (14.9 mm)
Weight	2.49 lbs (1.13 kg)
Other features
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes
Audio system	Dolby Atmos
