21769 - Da-Lite ADV DLX TNSD 130D HD.9

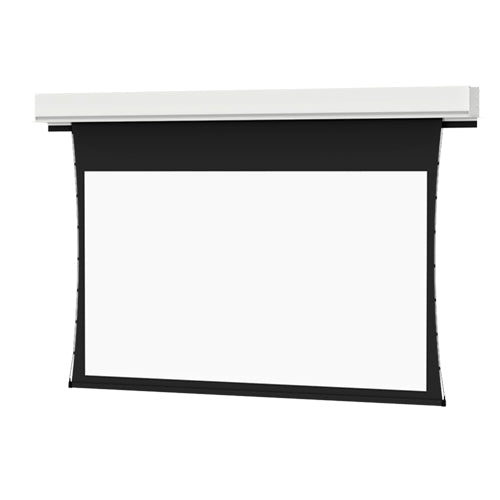

Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work.

Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic.

The Tensioned Advantage® Deluxe Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.

- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- UL Plenum rated case
- White powder-coated closure doors and case for a clean aesthetic
- Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models



Specification:



Performance
Native aspect ratio	16:10
Screen surface	HD Progressive 1.1
Viewable screen height (H)	68.9" (175 cm)
Viewable screen width (W)	109.8" (2.79 m)
Overall screen size (Height x Width)	68.9 x 109.8" (175 x 279 cm)
Diagonal (metric)	129.9" (330 cm)
Diagonal	130"
Remotely operated	Yes
Format	Wide
Drive type	Motorized
Tensioned screen	Yes
Design
Product colour	Black, White
Black backing	Yes
Mounting type	Ceiling
