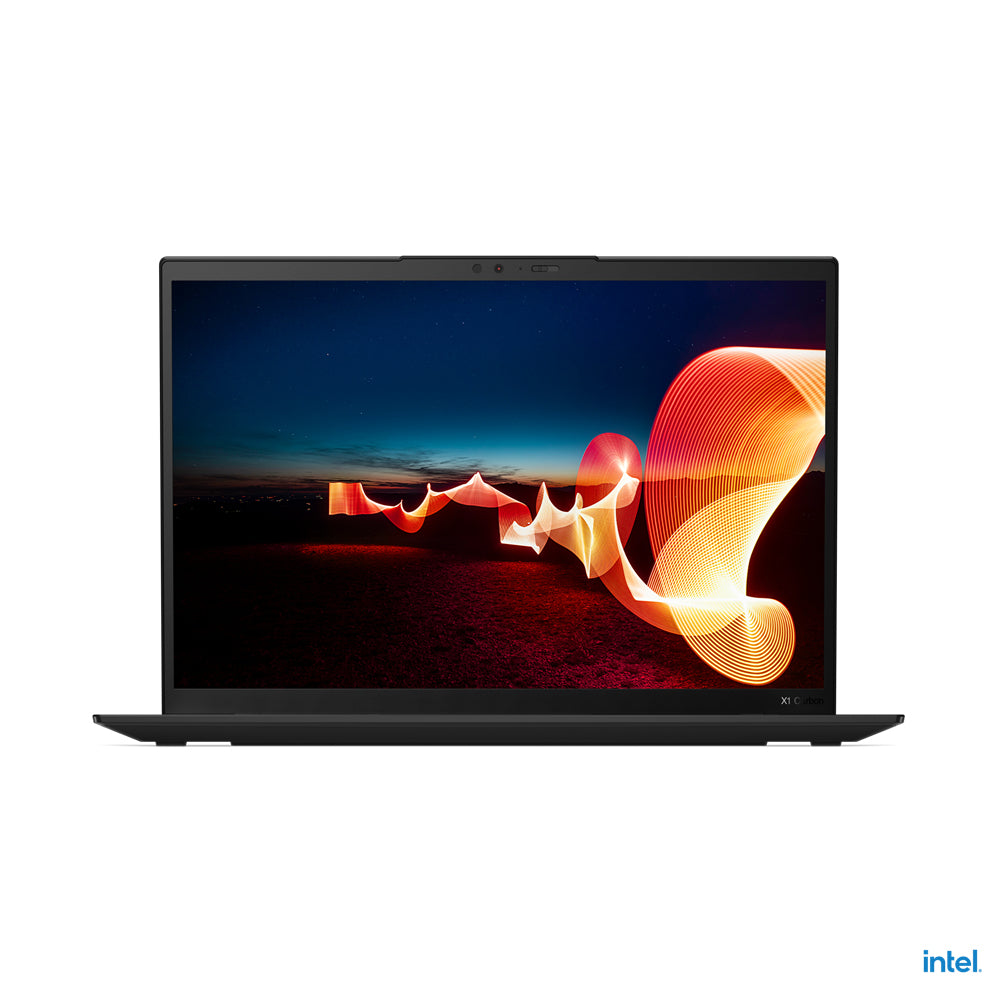

21CB00BVUS - Lenovo TP X1 CARBON G10,TOUCH,W11P,I7,32GB,512GB,3YR,NO ETHERNET RJ45 PORT

Redesigned with collaboration in mind The 10th generation of our premium ThinkPad X1 Carbon laptop is built on the Intel® Evo platform and powered by up to 12th Gen Intel® Core™ vPro® processors. It still has the legendary ThinkPad keyboard, only now we’ve redesigned the keys to create better airflow, in addition to rear exhaust ventilation. We’ve also transformed the camera into a Communications Bar to improve videoconferencing. Serious productivity enhancer Powered by 12th Gen Intel® Core™ vPro® processors—with up to 14 cores—our legendary ThinkPad X1 Carbon Gen 10 laptop takes multitasking to the next level. These CPUs have a revolutionary design that intelligently allocate workloads to the right thread, on the right core, at the right time—which allows for better video collaboration and productivity based on how you’re actually using your device. Communication just got a lot nicer Say hello to the Communications Bar, a gorgeous new design that houses the higher resolution FHD camera with optional infrared (IR) and Computer Vision features—all with a webcam privacy shutter. It also shows off the 4 x 360-degree mics with integrated AI-based noise-cancellation and Dolby Voice®. The Communications Bar not only looks great—it inspires seamless collaboration and vibrant video calls. Keeps cool under pressure The underside of the keys on our legendary ThinkPad keyboard have been redesigned for air intake to create better airflow. Combined with the dual fan and rear venting, the ThinkPad X1 Carbon Gen 10 laptop delivers improved thermals—so go ahead and put in long hours working and playing as this X1 will stay as cool as you are. Missing laptop? No problem. If you misplace your laptop, or worse, if someone takes it, locating your device has never been so easy. Now Tile® ready, the ThinkPad X1 Carbon Gen 10 works with your smartphone to find your device—even when your X1 is powered off. Simply subscribe to the Tile® service*, and then download, set up, and activate. * Subscription not included and must be purchased separately. Security as unique as your DNA Biometrics provide extra security on the ThinkPad X1 Carbon Gen 10 laptop—from the power button integrated with the fingerprint reader that lets you log in and boot up instantaneously, to the facial recognition software that works with the IR camera. Plus, Computer Vision based presence detection automatically locks your device when you move away, and with the optional PrivacyGuard display, no wandering eyes see what’s on your screen. Displays that dazzle Whether your position requires richly detailed graphical displays or extra security to keep spying eyes away, the ThinkPad X1 Carbon Gen 10 laptop has an option for you. Ranging from 4K WQUXGA touch to 2.8K OLED, to WUXGA and even ePrivacy, all 14" panels feature a 16:10 aspect ratio with narrow bezels. Most displays also include low-power usage and Eyesafe® certification to reduce blue-light emissions. Count on ThinkPad every time We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more. Specifications may vary depending upon region / model.



Specification:



Design
Product type	Notebook
Housing material	Aluminum, Carbon fiber
Form factor	Clamshell
Product colour	Black
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	400 cd/m²
Contrast ratio (typical)	1000:1
Touchscreen	Yes
Display resolution	1920 x 1200 pixels
Display diagonal	14"
Anti-glare screen	Yes
RGB colour space	sRGB
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	12th gen Intel® Core™ i7
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	i7-1265U
Processor boost frequency	4.8 GHz
Processor cores	10
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	5200 MHz
Maximum internal memory	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express
Card reader integrated	No
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3306
Number of microphones	4
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system language	English
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 11 Pro
Technical details
Housing material	Aluminum, Carbon fiber
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Flex Memory Access	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	Power on, Supervisor, SSD
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certificates
Certification	MIL-STD-810H, ErP Lot 3
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
Weight & dimensions
Width	12.4" (315.6 mm)
Depth	8.76" (222.5 mm)
Height	0.605" (15.4 mm)
Weight	2.47 lbs (1.12 kg)
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
On-board graphics card	Yes
Audio system	Dolby Atmos
Maximum shipping altitude	120000" (3048 m)
Anti-glare screen	Yes
